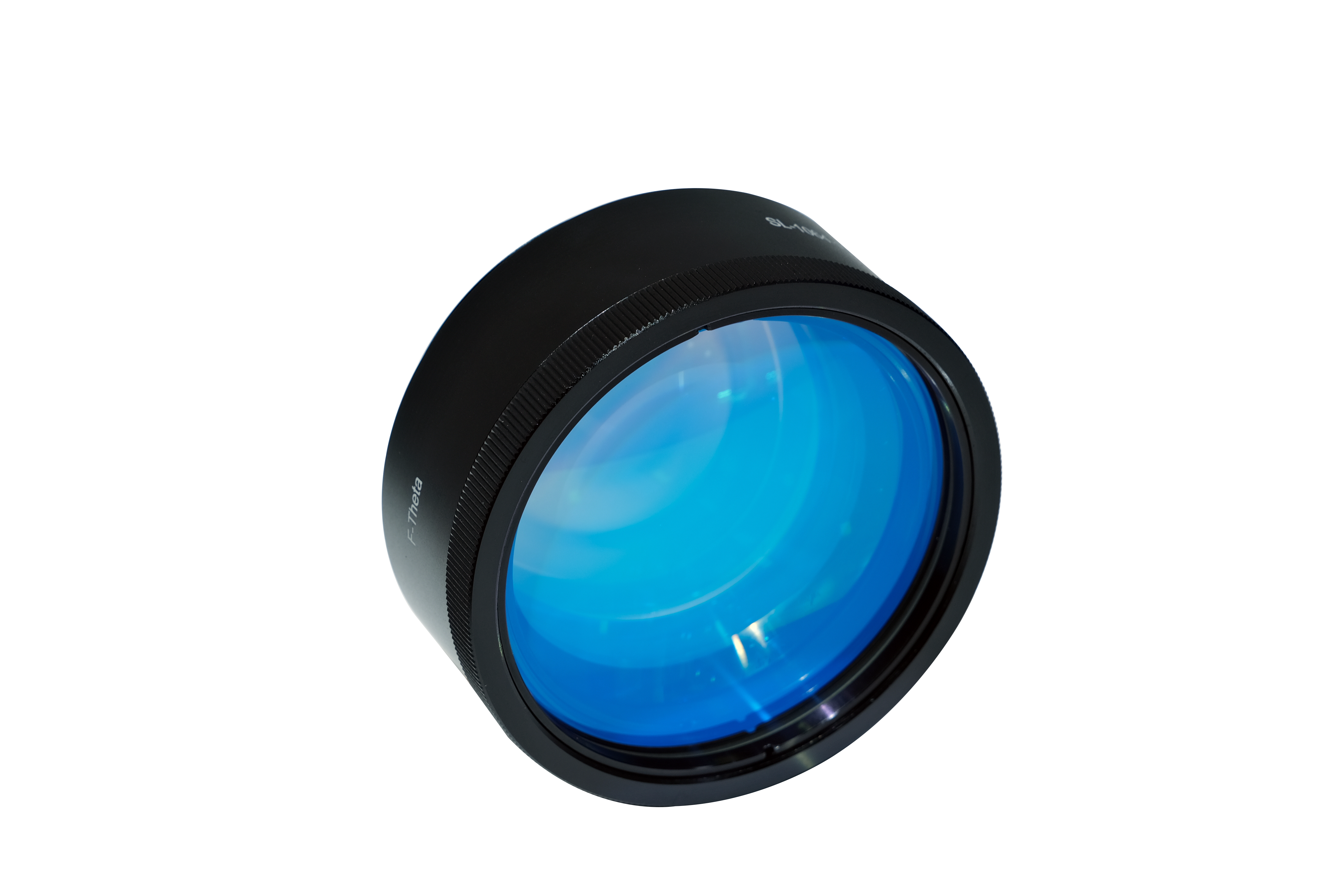

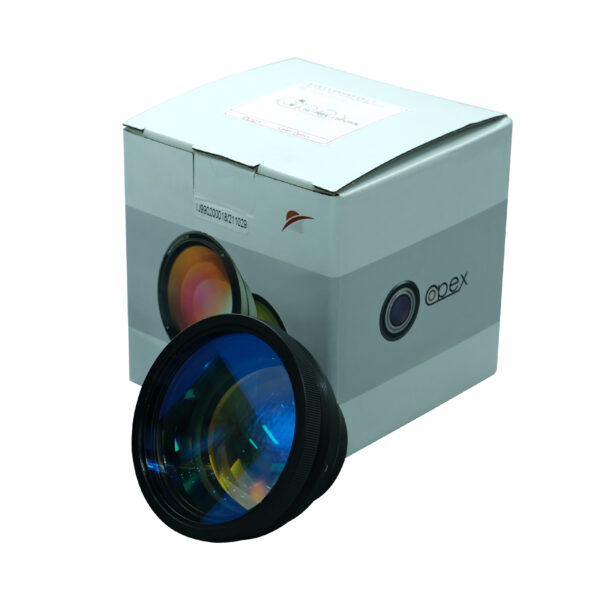

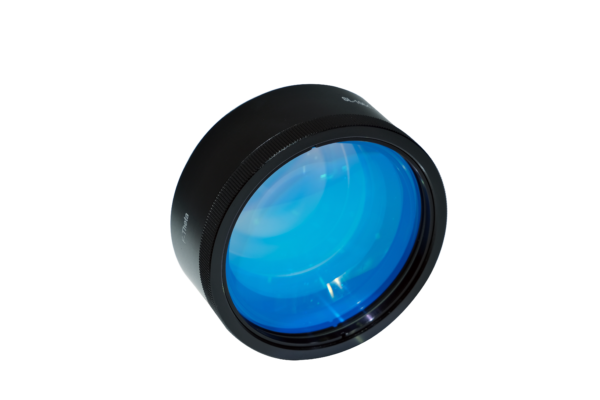

OPEX Lens Fiber Laser Optical F-Theta Lens Scan Field 70/110/150/175/220/300mm Wavelength 1064nm Thread M85
$289.00 – $429.00
F-Theta Scan Lenses are developed for ultra fast lasers with short pulse width and high pulse energy laser applications. These lenses are made with low dispersion Fused Silica with optical design to avoid back reflection and ghost image.
Standard fused silica f-theta lenses are suitable for all high-power-laser applications like welding, cleaning and structuring. Thermal lens, which occurs at high power laser applications and leads to a focal shift, is also minimized.
Products
-
-
2000W 3000W 6000W 1530 Metal Sheet and Tube Fiber Laser Cutting Machine
$55,299.00 – $73,199.00 -
OPEX Lens Fiber Laser Optical F-Theta Lens
- F-Theta Scan Lenses are developed for ultra fast lasers with short pulse width and high pulse energy laser applications. These lenses are made with low dispersion Fused Silica with optical design to avoid back reflection and ghost image.
- Standard fused silica f-theta lenses are suitable for all high-power-laser applications like welding, cleaning and structuring. Thermal lens, which occurs at high power laser applications and leads to a focal shift, is also minimized.
- Aplicable Wavelength:Fiber YAG 1064nm.

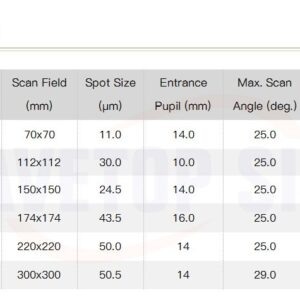

- Scan Field: 70×70mm/110×110mm/150×150mm/175×175mm/220mm×220mm/300×300mm

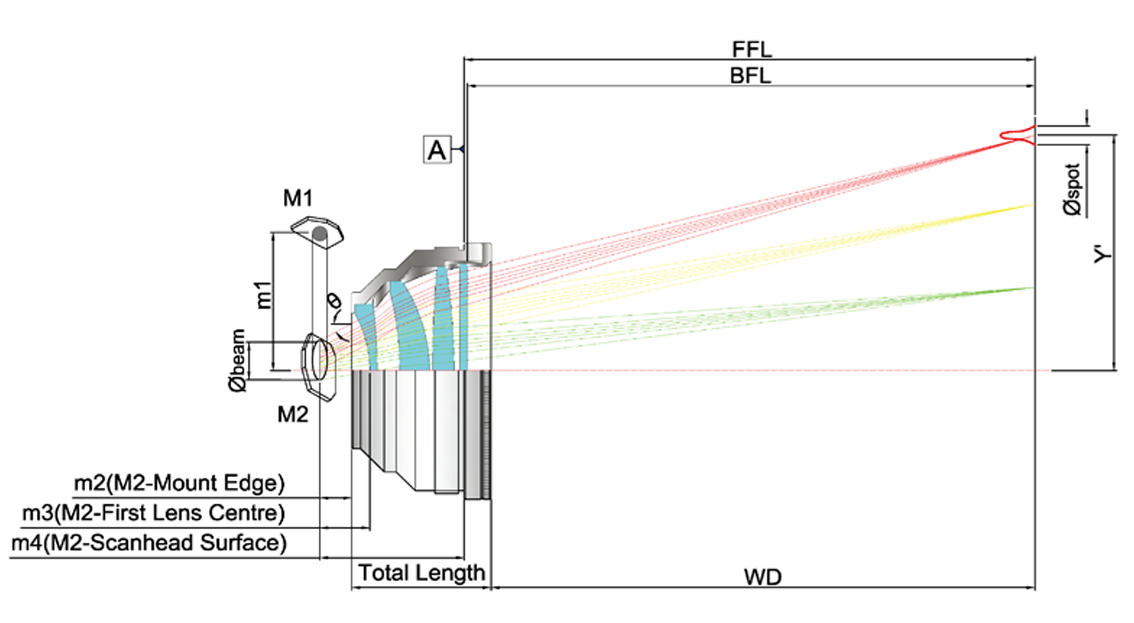

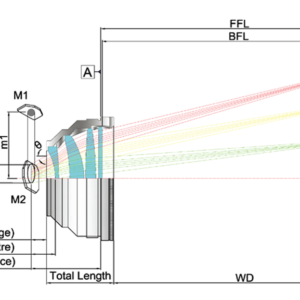

- Focal Length: F=100mm/163mm/210mm/254mm/330mm/420mm
- Thread:M85*1
| lens | 110×110mm, 150×150mm, 175×175mm, 220*220mm, 300*300mm, 70*70mm |
|---|
