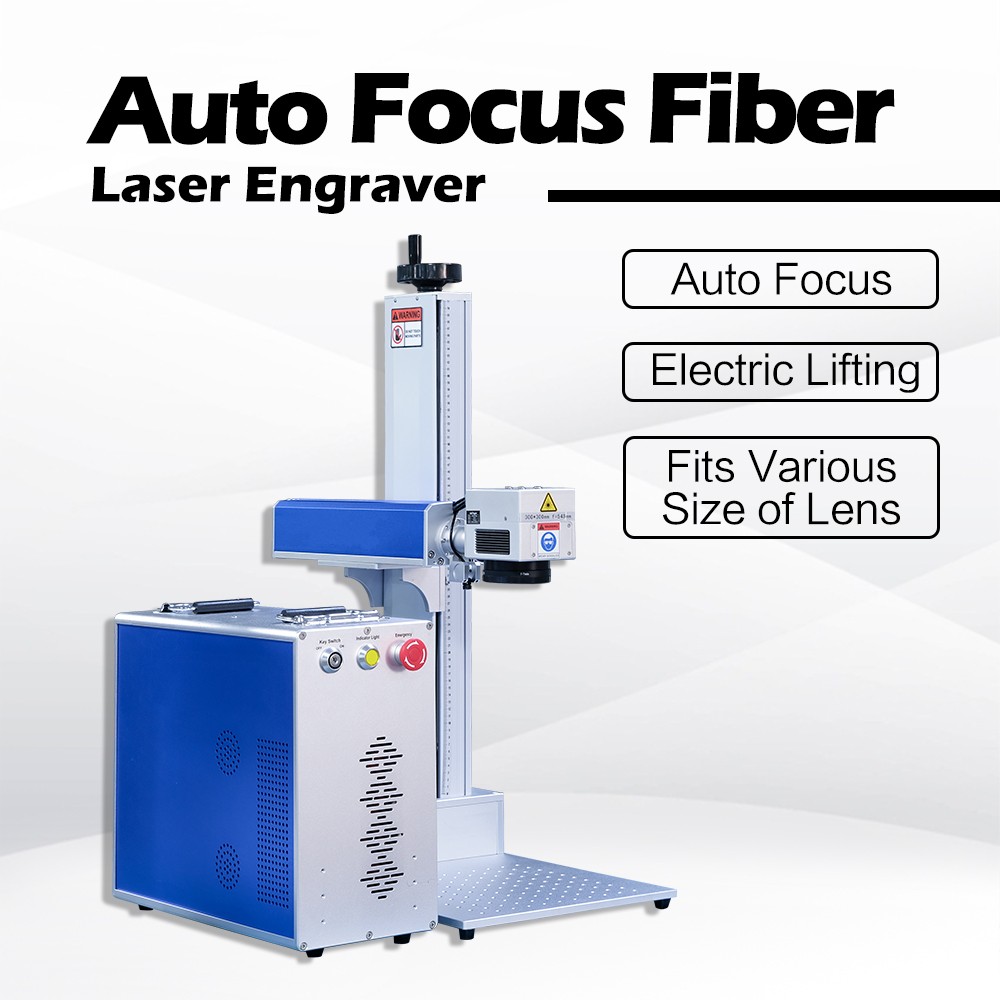

Auto Focus Split 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine
$5,632.00 – $9,392.00
Auto Focus JPT LP 20W/30W/50W Fiber Laser Engraver for Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, Platinum, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,.etc.
Products
-
-
2000W 3000W 6000W 1530 Metal Sheet and Tube Fiber Laser Cutting Machine
$55,299.00 – $73,199.00 -
- Laser Source: 20W/30W/50W JPT LP
- Adjustable Frequency Range: 1-600kHz
- Pulse Width: 200ns
- Marking Area(Lens): 110*110mm/150*150mm/175*175mm Optional
- Rotary Axis: D80/100/125mm Optional
- Software: EZCAD2.0/EZCAD3.0. Support WIN7/8/10 System

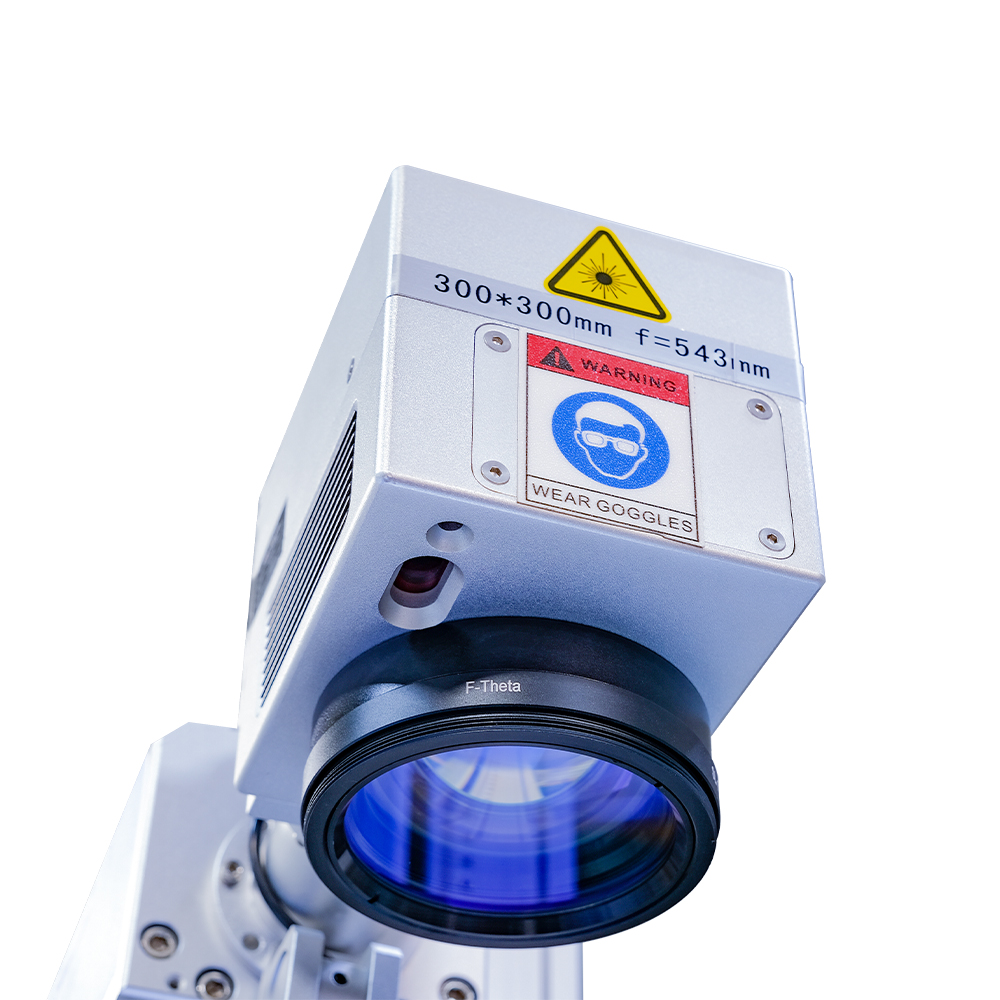

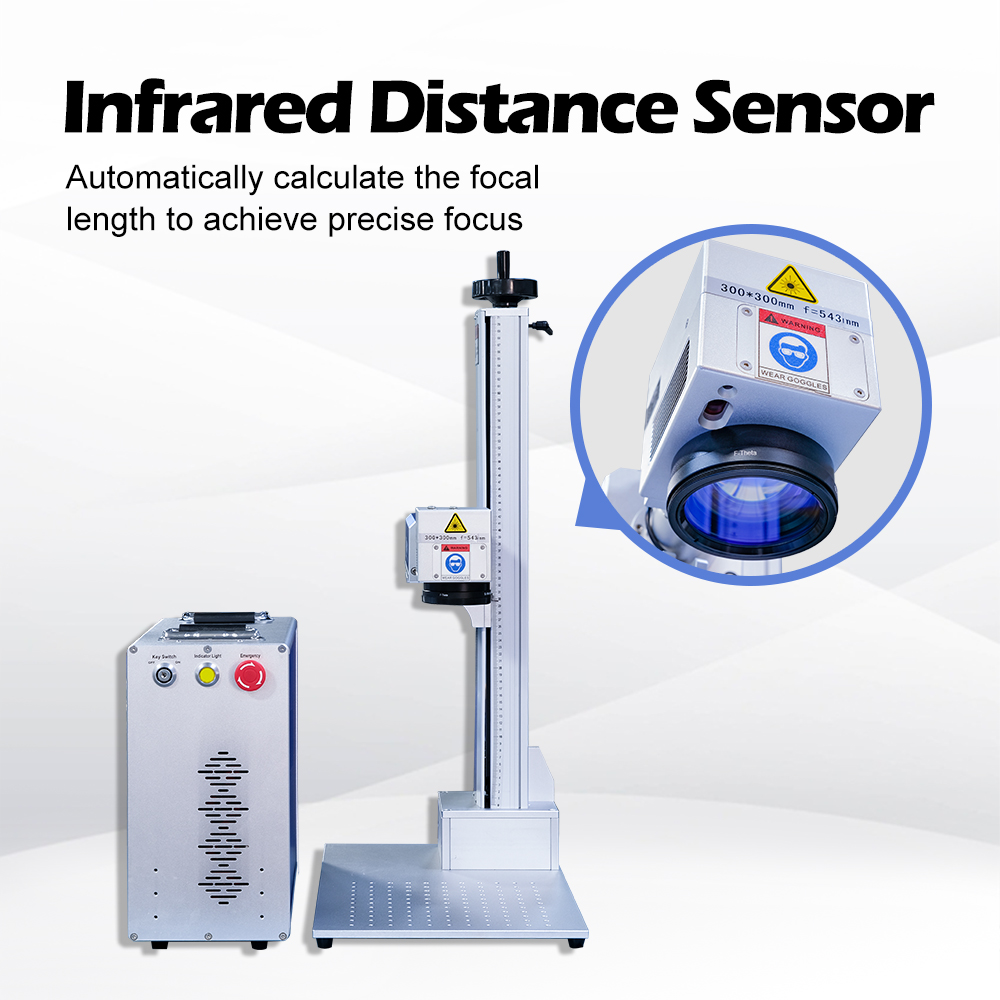

- Infrared Distance Sensor. Automatically Calculate the Focal Length to Achieve Precise Focus.

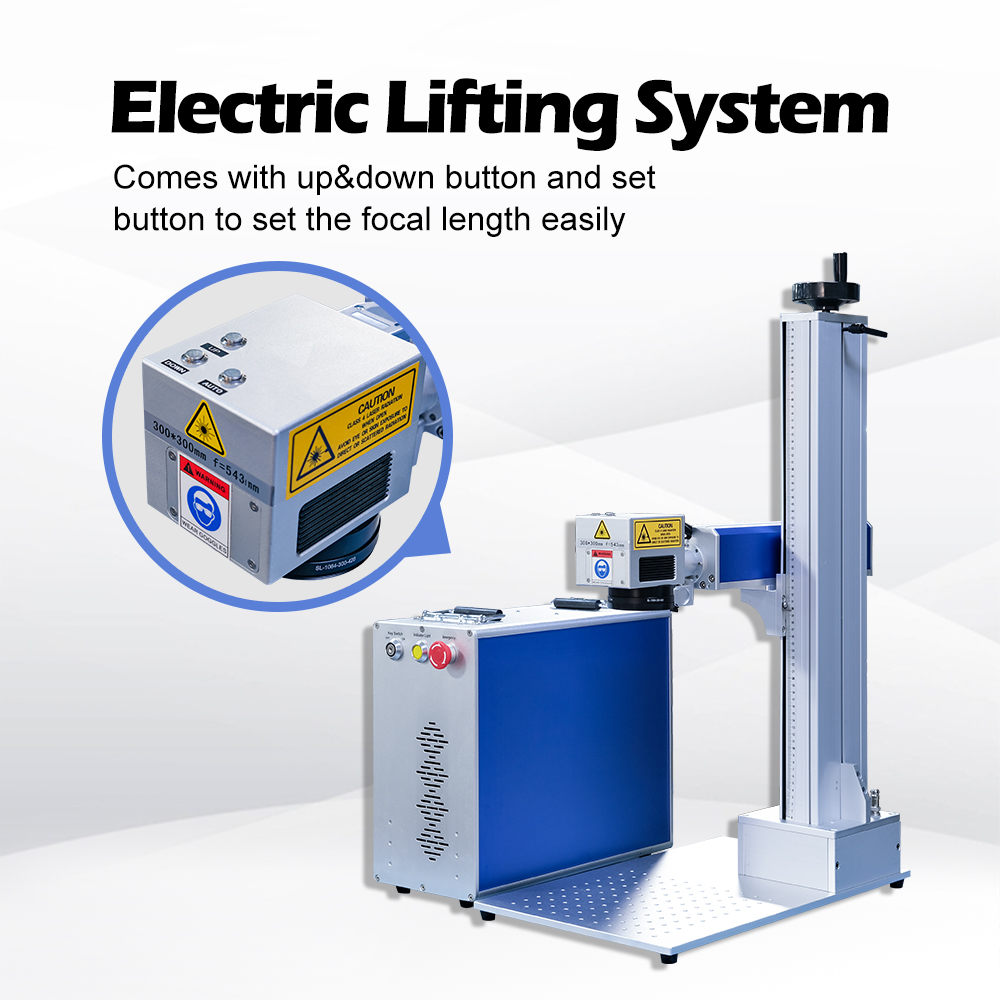

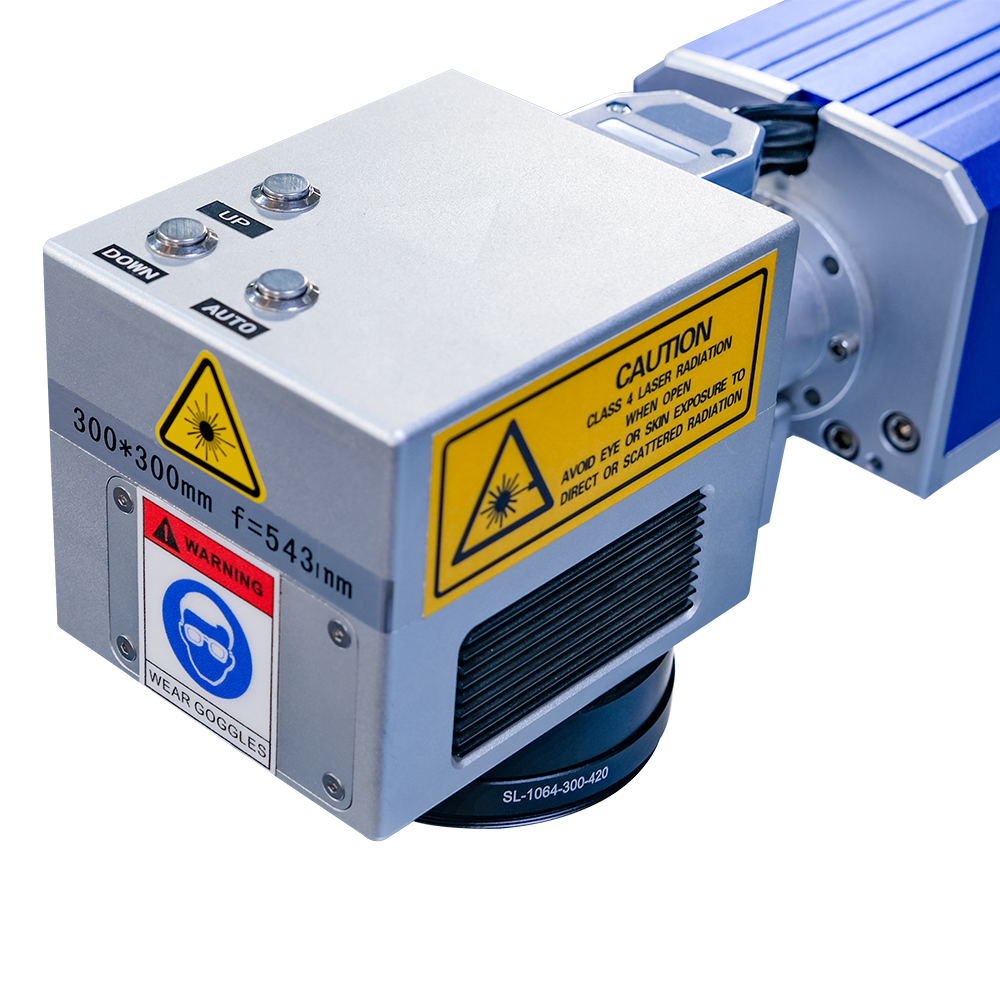

- Auto Focus System. Comes with Auto, UP & Down Button for Easy Focusing.
- Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
- Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
- Two-Year Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine
- The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
- The machine can directly use SHX, TTF fonts;Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
- Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
- Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
- Free shipping by DHL/UPS around 7 to 15 days.
| laser-power | 20W, 30W, 50W |
|---|---|
| lens | 110×110mm, 150×150mm, 175×175mm, 200*200mm, 220*220mm, 300*300mm, 70*70mm |
| rotary-axis | D100, D125, D69, D80 |
| software-additional-functi | EZCAD2.0, EZCAD3.0, EZCAD3.0 2.5D Motorized Z Axis |
