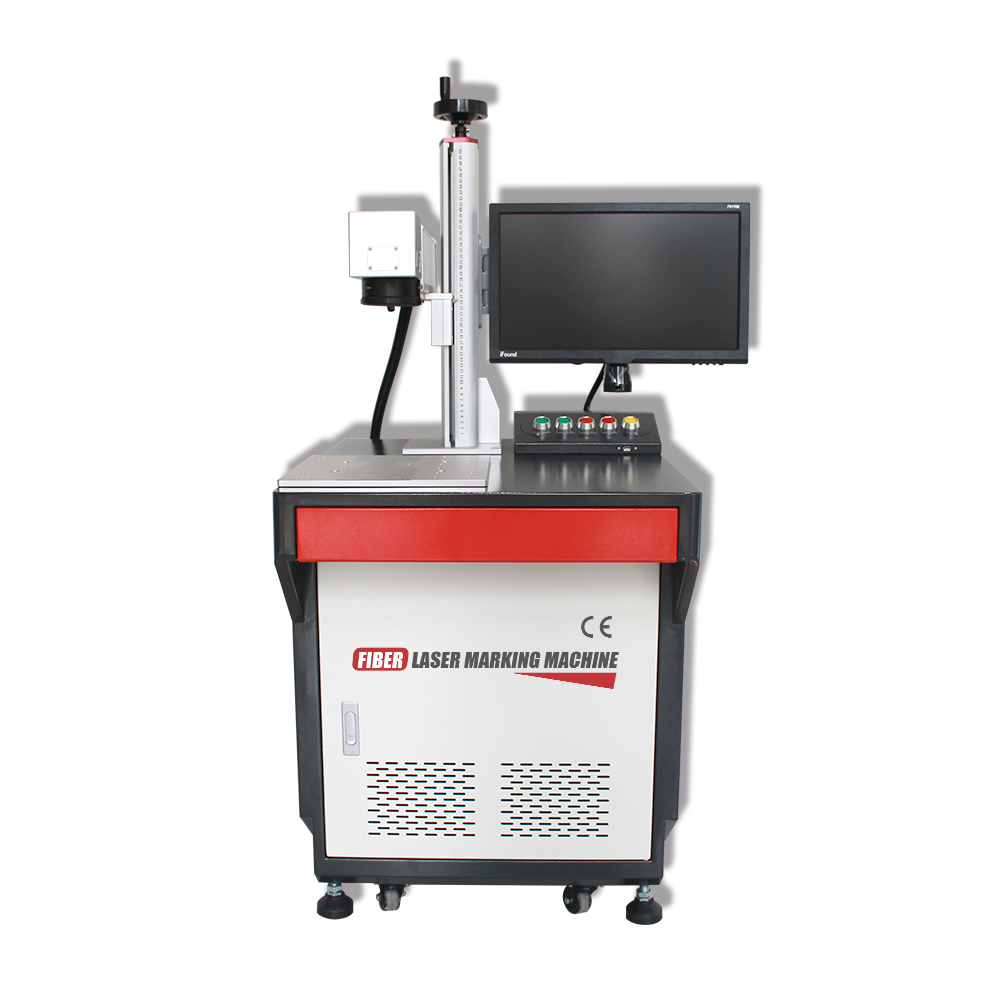

Desktop 20W/60W/100W JPT MOPA M7(YDFLP-E-M7-M-R) Fiber Laser Engraver Laser Marking Machine
$7,199.00 – $11,499.00
Desktop JPT MOPA M7 Fiber Laser Engraver. Metal deep marking engraving, stainless steel color marking.
Products
-
-
2000W 3000W 6000W 1530 Metal Sheet and Tube Fiber Laser Cutting Machine
$55,299.00 – $73,199.00 -
- Laser Source: 20W/30W/60W/80W/100W YDFLP-E-M7-M-R JPT MOPA M7
- Adjustable Frequency Range: 1-4000kHz
- Marking Area(Lens): 110*110mm/175*175mm Optional
- Adjustable Pulse Width Range : 2-350ns@20W/@60W/100W
- Maximum Pulse Energy: 0.8mj@20W/30W; 1.5mj@60W/100W; 2.0mj@80W

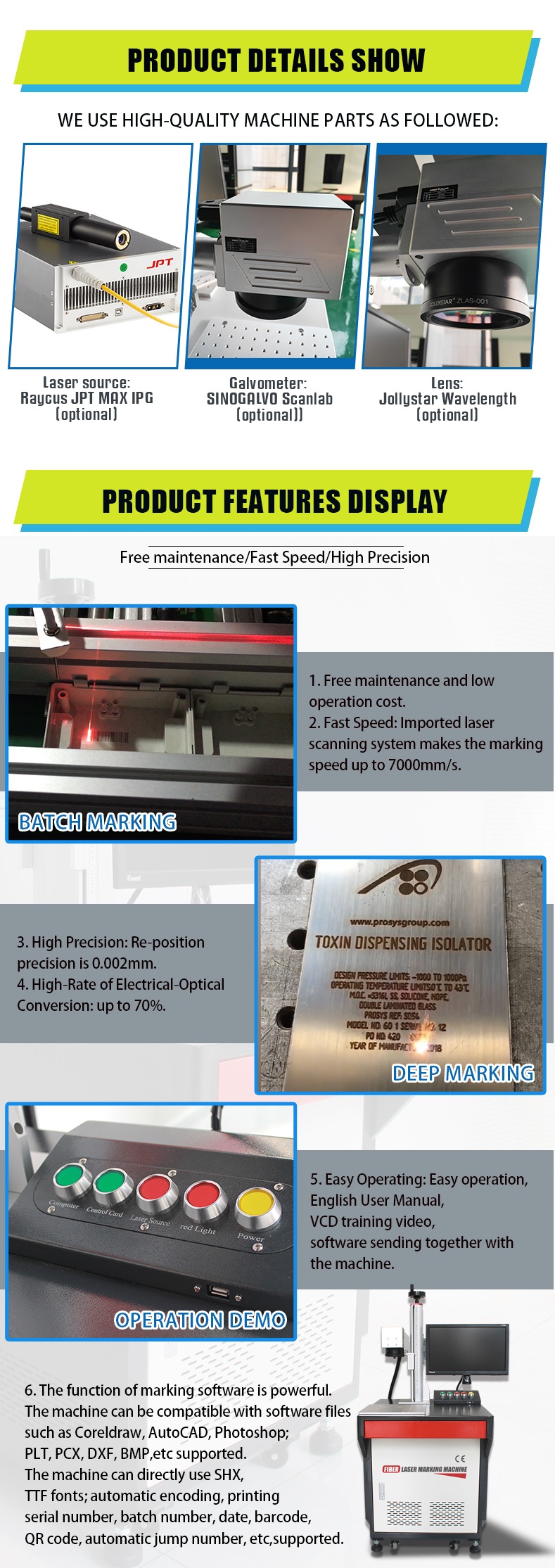

- Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
- 2 Years Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine
- Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF fonts.
- Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.

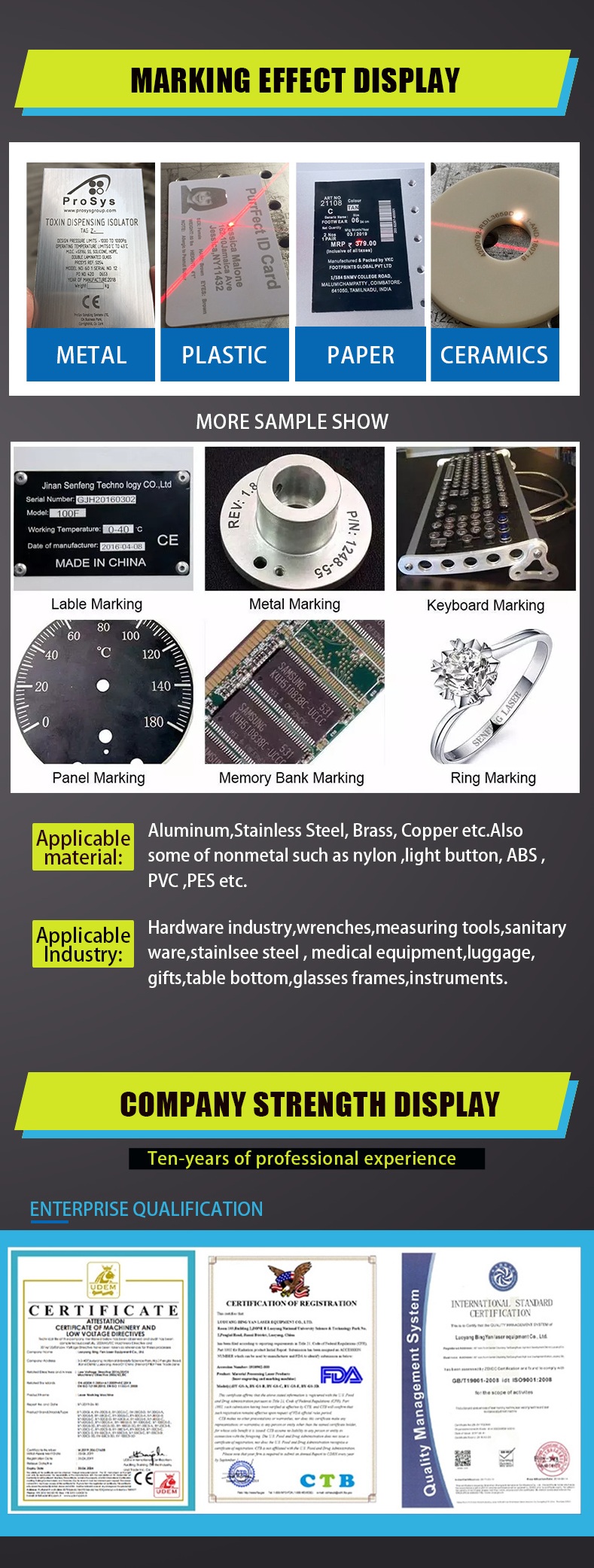

- Applicable Material: Aluminum, Stainless Steel, Brass, Copper, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
- Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
- Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black marking on stainless steel.
- Free Shipping by Air to Door inlcuding Tariffs and Broke Fees around 15 to 25 days. No Import Duty for American Customers.
- After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Lifetime Online Technical Support. CE, ISO & FDA Certificate.
- We also have split type mopa fiber laser engraver for optional.
| laser-power | 100W, 20W, 60W |
|---|---|
| lens | 110×110mm, 175×175mm |
