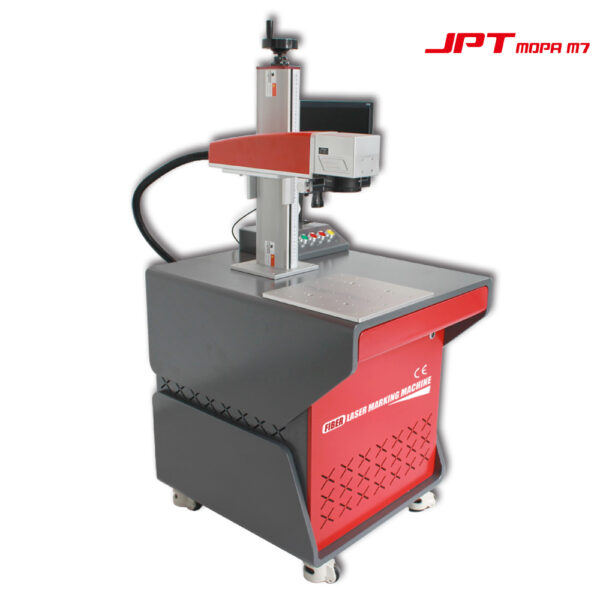

• Laser Source: 20W/60W/100W YDFLP-E-M7-M-R JPT MOPA M7
  • Adjustable Frequency Range: 1-4000kHz

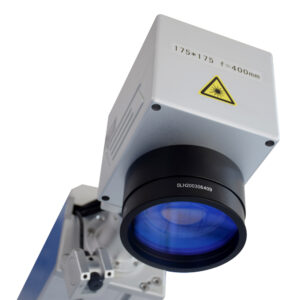

  • Marking Area(Lens): 110*110mm/175*175mm Optional
  • Rotary Axis: D80/100/125mm Optional
  • Adjustable Pulse Width Range : 2-350ns@20W/30W; 2-500ns@60W/80W/100W
  • Maximum Pulse Energy: 0.8mj@20W/30W; 1.5mj@60W/100W; 2.0mj@80W
  • Software: EZCAD2(compatible with lightburn)/EZCAD3. Support WIN7/8/10 System
  • Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
  • 2 Years Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine
  • The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
  • The machine can directly use SHX, TTF fonts;Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
  • Applicable Material: Aluminum, Stainless Steel, Brass, Copper, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES, etc.
  • Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
  • Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black marking on stainless steel.
  • Free Shipping by Air to Door inlcuding Tariffs and Broke Fees around 15 to 25 days. No Import Duty for American Customers.
  • After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Lifetime Online Technical Support. CE, ISO & FDA Certificate.

laser-power

100W, 20W, 60W

lens

110×110mm, 175×175mm

Desktop 20W/60W/100W JPT MOPA ...

$7,199.00$11,499.00

Add to Enquiry Basket
Tap to Call: 416-832-5640
