Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software

Name: Desktop 20W/30W/50W JPT Fiber Laser Engraver Laser Marking Machine with built-in computer and software
SKU: LYXC-GD-B-1
Availability: InStock

$7,099.00 – $8,799.00

JPT LP 20W/30W/50W Fiber Laser Engraver for metal products.

SKU: LYXC-GD-B-1

Categories: Engraving, Fiber Lasers, Laser Marking Machines

Tags: 20w-30w-60w-80w-100w-jpt-mopa-m7, fiber-laser-engraver, laser-marking-machine

Description
Additional information

Laser Source: 20W/30W/50W JPT LP
Adjustable Frequency Range: 1-600kHz
Pulse Width: 200ns
Marking Area(Lens): 110*110mm/150*150mm/175*175mm Optional

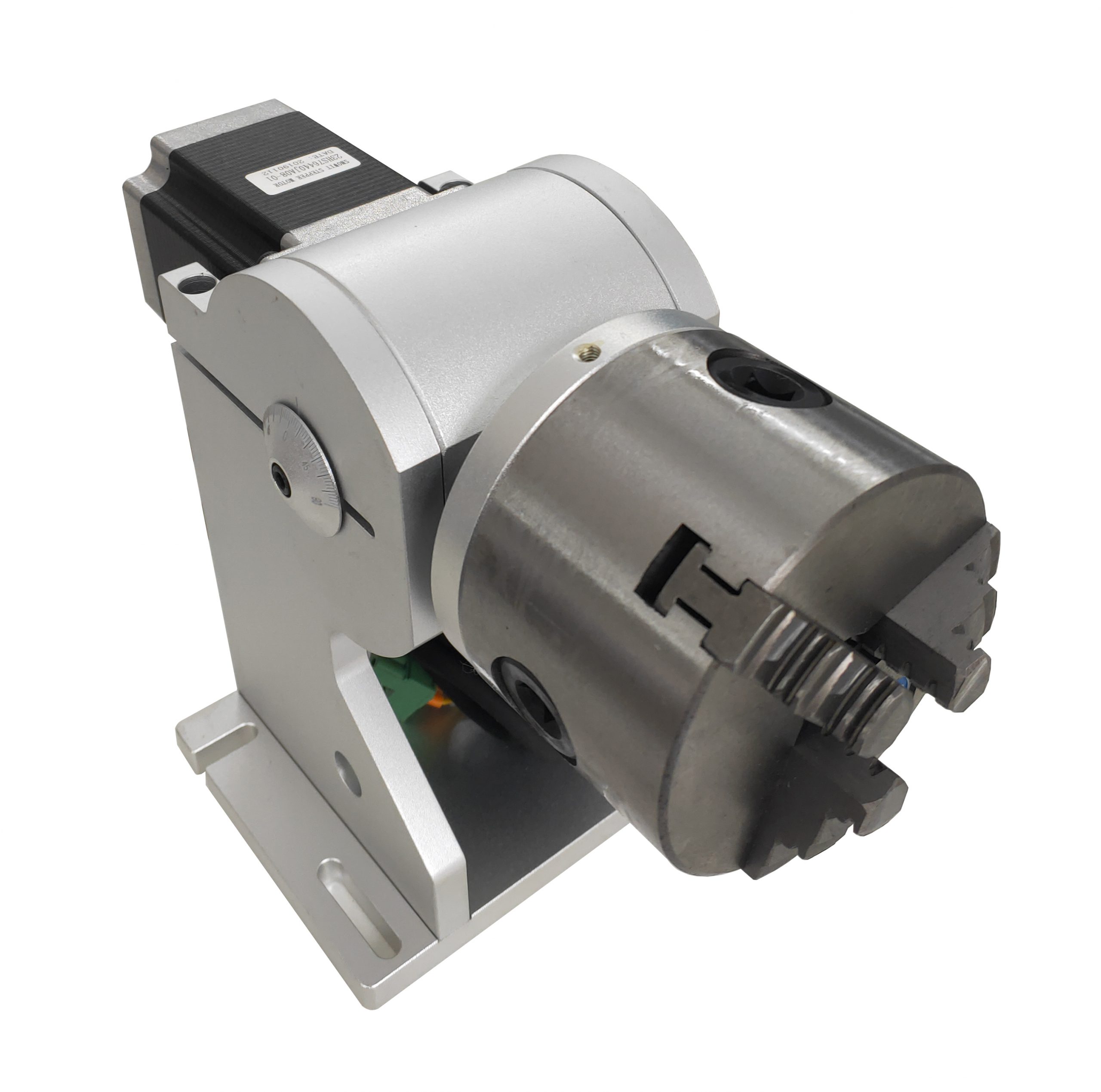

Rotary Axis: D80/100/125mm Optional
Software: EZCAD2. Support WIN7/8/10 System
Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
Two-Year Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine
The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
The machine can directly use SHX, TTF fonts;Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
