Enclosure 60W YDFLP-M7-M-R JPT MOPA M7 Fiber Laser Marker Laser Engraving Machine

Name: Enclosure 60W YDFLP-M7-M-R JPT MOPA M7 Fiber Laser Marker Laser Engraving Machine
SKU: LYXC-GS-D-C
Price: 9582.00 USD
Availability: InStock

$9,582.00

Totally-Closed Type with Observation Window; Easy and Safe Operation. Stepper Motor up and down. YDFLP-M7-M-R Laser Source.

SKU: LYXC-GS-D-C

Categories: Engraving, Fiber Lasers, Laser Marking Machines

Tags: enclosure-fiber-laser-engraver, jpt-mopa-m7-fiber-laser

Description
Additional information

Laser Source: 20W/30W/60W/80W/100W YDFLP-M7-M-R
Marking Area: 70*70mm/110*110mm/150*150mm
Max. Material Thinkness: 300mm/250mm/206mm
Laser Source: JPT MOPA M7
Repetition Rate(Frequency): 1-4000kHz
Pulse Duration: 2-350ns@20W/30W; 2-500ns@60W/80W/100W
Maximum Pulse Energy: 0.8mj@20W/30W; 2.0mj@60W/80W; 1.5mj@100W
Software: EZCAD2(compatible with lightburn)/EZCAD3. Support WIN7/8/10 System
Output power adjustment range 10%-100%
Marking Speed: 7m/s
Engraving Depth:20W≤0.2mm(0.008in)/30W≤0.4mm(0.016in)/60W≤1.5mm
Min. Line Width: ≤0.01mm（Depends on the material)
Min. Character: 0.2mm（Depends on the material)
Input Voltage: 110V-240V/50-60Hz
Power Consumption: 500W/800W/1000W
Communication Mode for Automation TCP/IP, IO,RS232
Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF fonts.

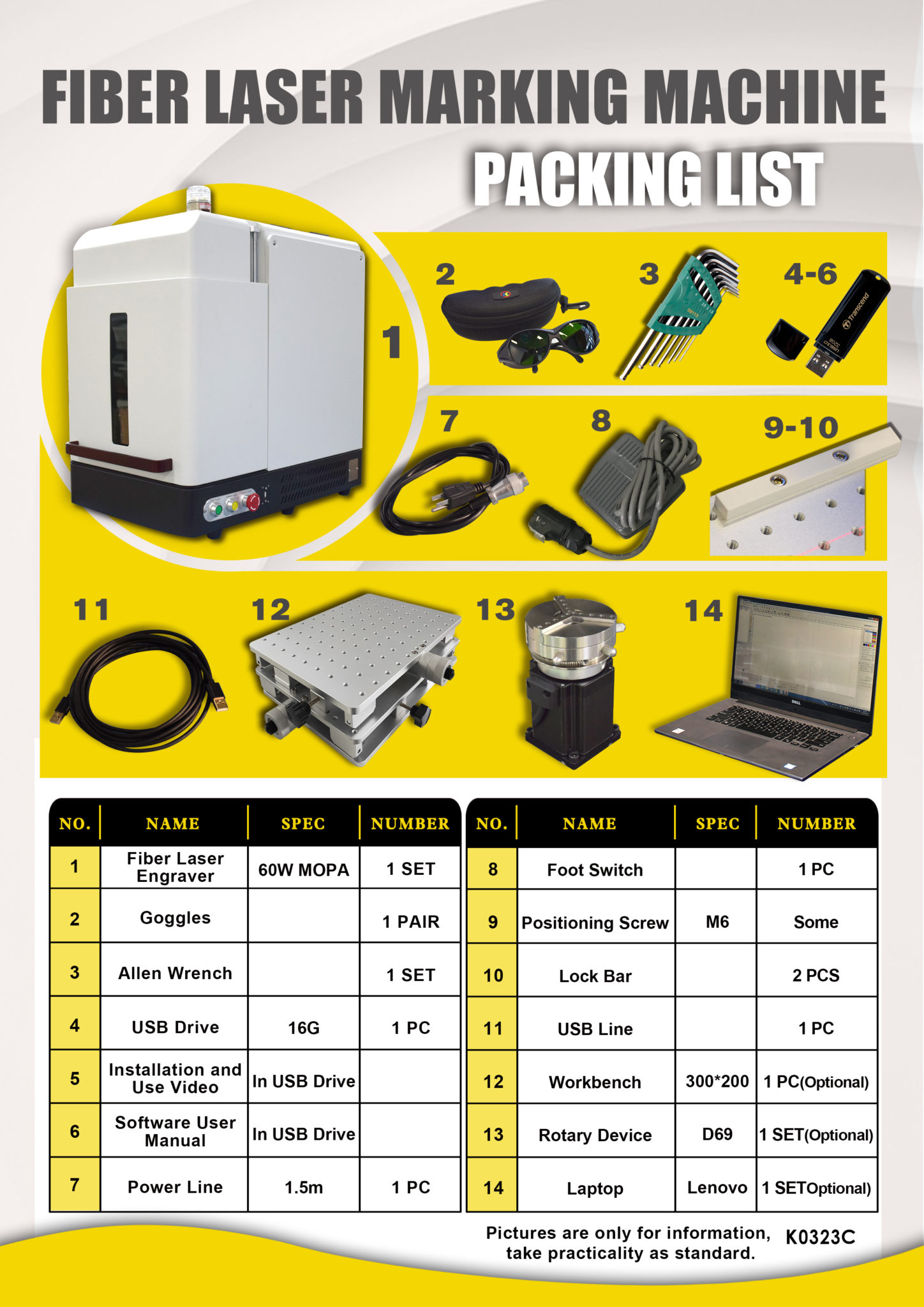

Totally-Closed Type with Observation Window; Easy and Safe Operation, English User Manual, VCD training video, software sending together with the machine
Applicable Material: Aluminum, Stainless Steel, Brass, Copper, Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES, etc.
Free Shipping by DHL/UPS including Tariffs and Broke Fees around 7 to 10 days, No Import Duty for American Customers.
2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for any Operation Issues. Lifetime Online Technical Support.
