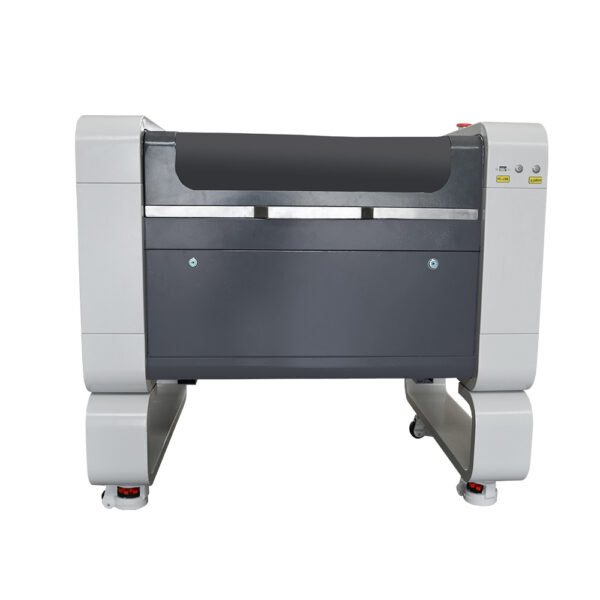

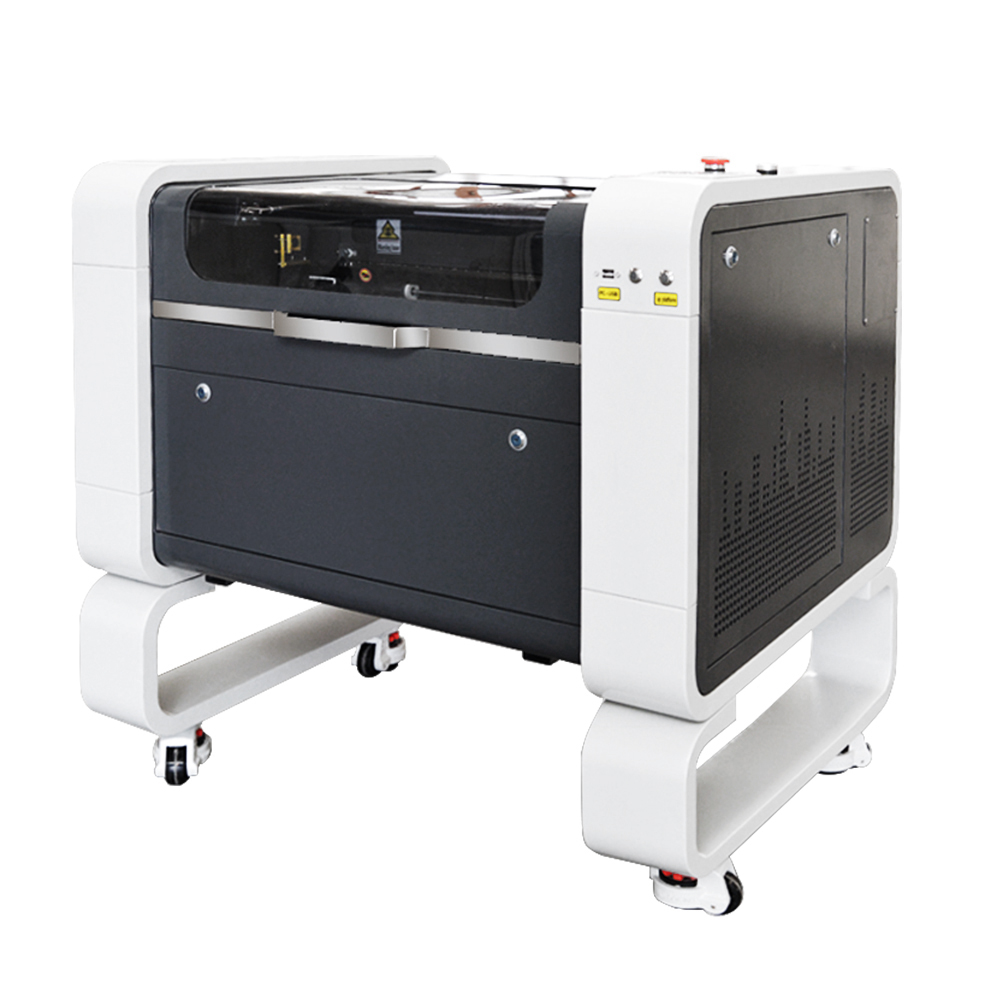

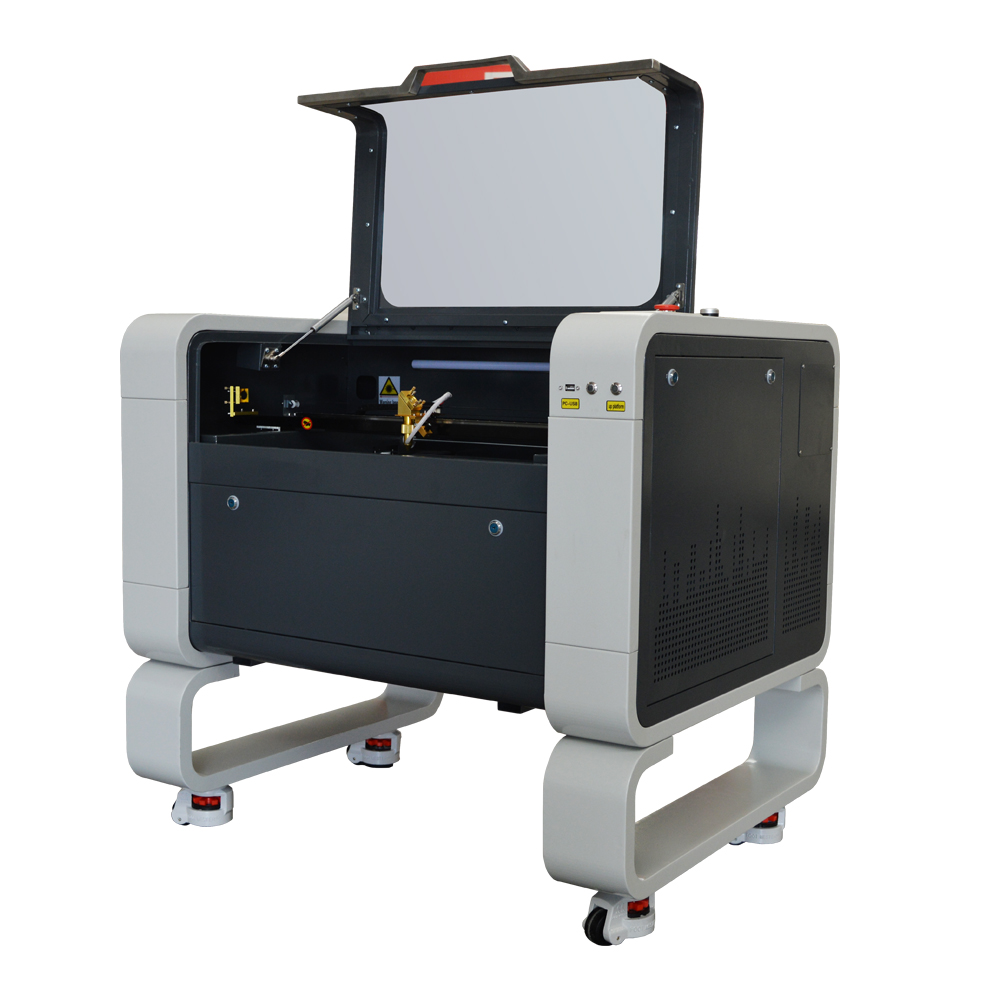

Model 1624 CO2 Laser – Compact Design

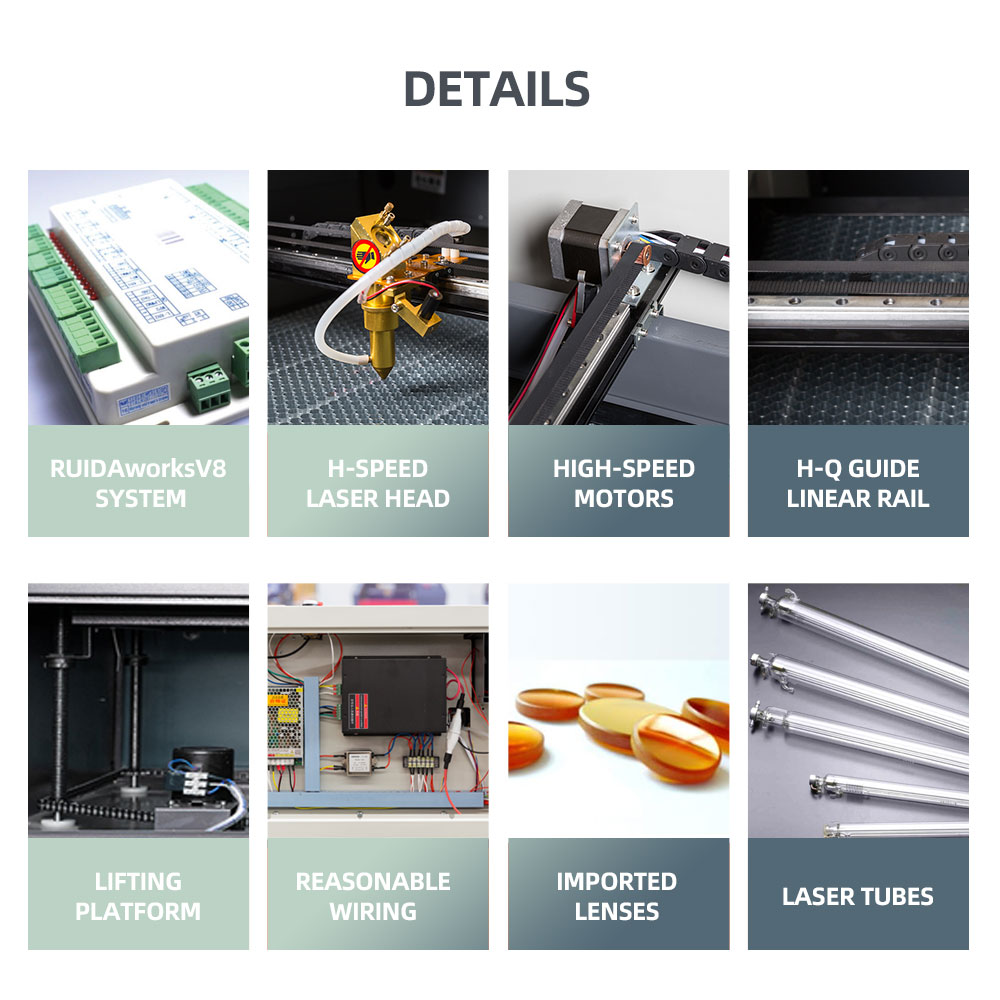

• This CO2 machine is configured with a Ruida control card and interface along with RDworks Version 8 software. This software has become the industry standard, support and direction is available everywhere from Youtube to hundreds of user groups.
• All of our machines use industry leading stepper motors for insuring fast and precise movement.
• Brand name guide rails support accurate and reliable movement of the gantry.
• The bed height is adjustable to allow for taller products.
• We only use industry leading brands such as RECI ,WEIJU , EFR .

Technical Parameters:

• Laser Power: 60watt and 100watt
• Workbed: 16″×24″ (400×600mm)
• Honeycomb design work area supports small products and minimal contact of the beam to the product. This avoids “hotspots” in the ctting contact points.
• Work Table Z travel (Up / Down) : 6″ (150mm)
• Max. Engraving Speed: 500mm/s
• Max. Cutting Speed: 50mm/s
• Cooling Method: Water
• Position tolerance: ＜0.01mm
• Control Card: Ruida 7132
• Control Mode: DSP- Digital Signal Process
• Support Fomats: .bmp, plt, cdr, dfx
• Interface: USB, Ethernet
• Overall Dims:  54″ *30″ *36″
• Net Weight: 242 lbs /110Kg
• Applicable Materials: Acrylic, Wood, Leather, Paper, Rubber, Textile. Plastic
