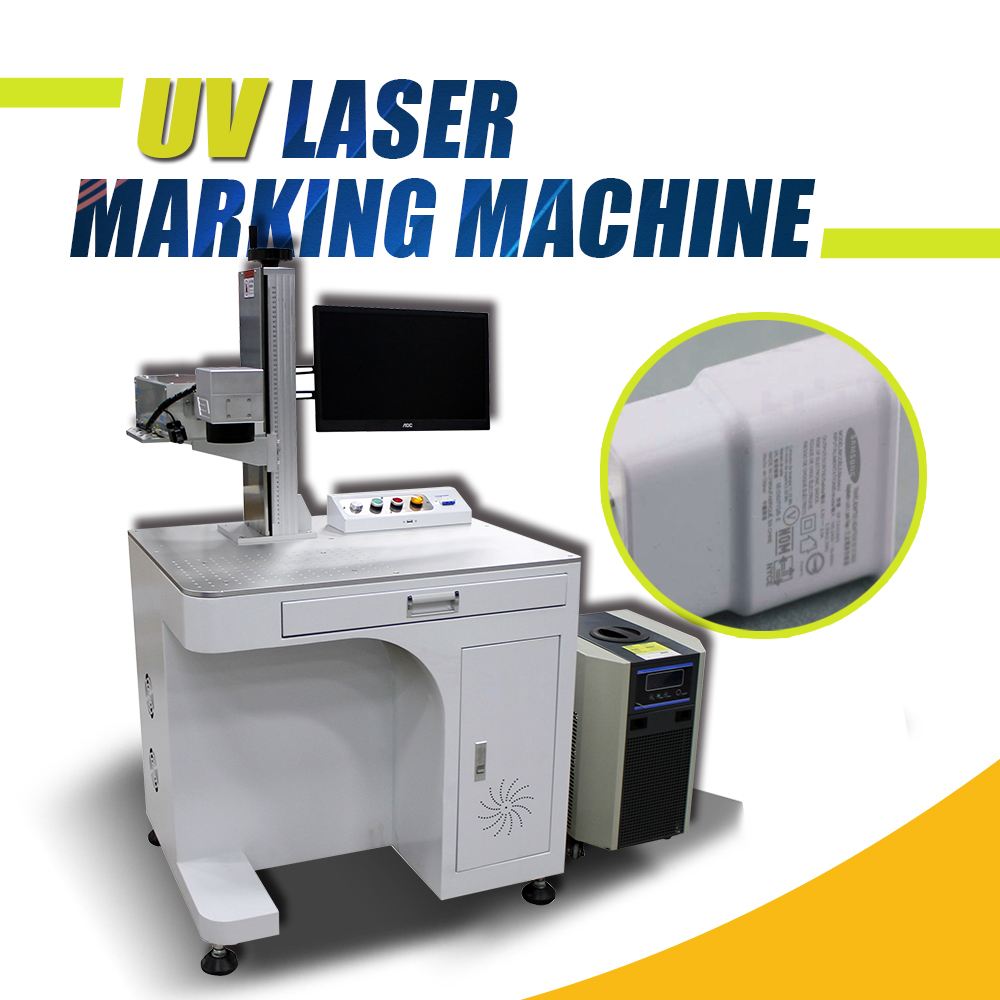

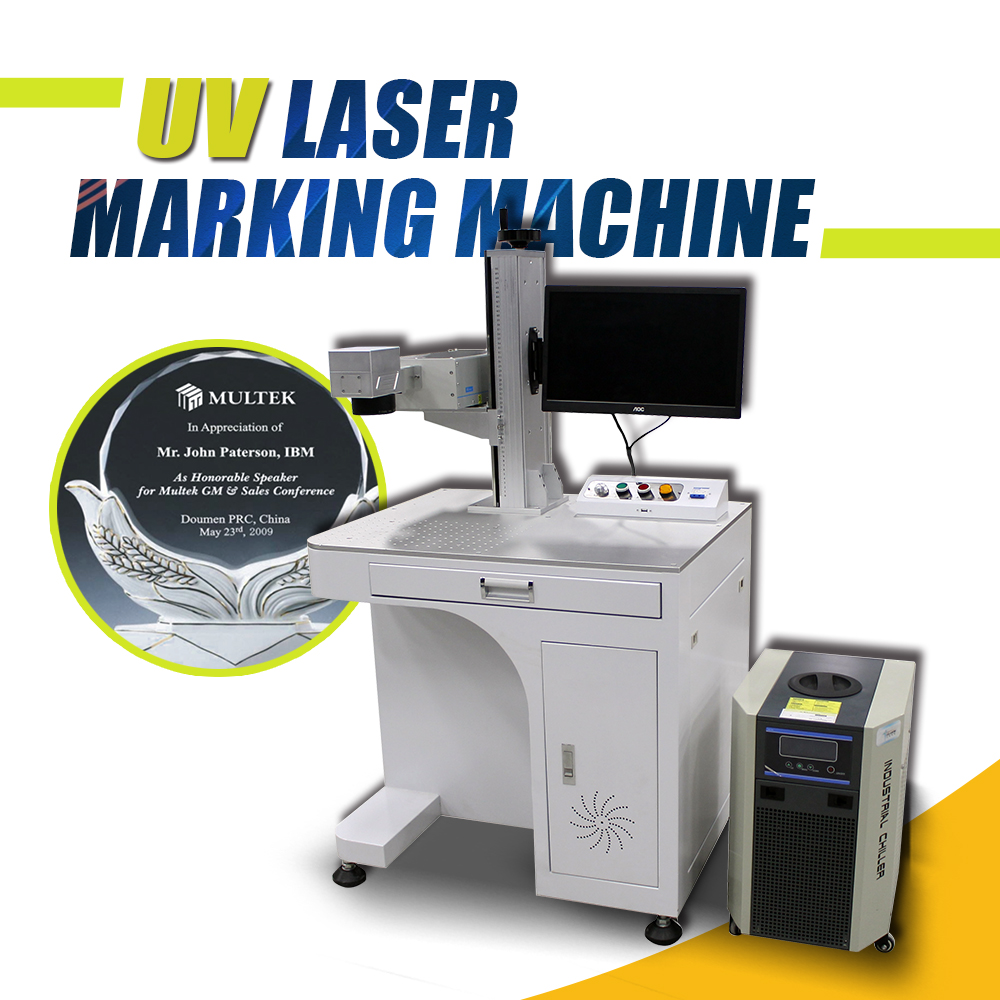

Desktop 3W/5W JPT UV Laser Marking Machine Laser Marker with built-in Computer and Software

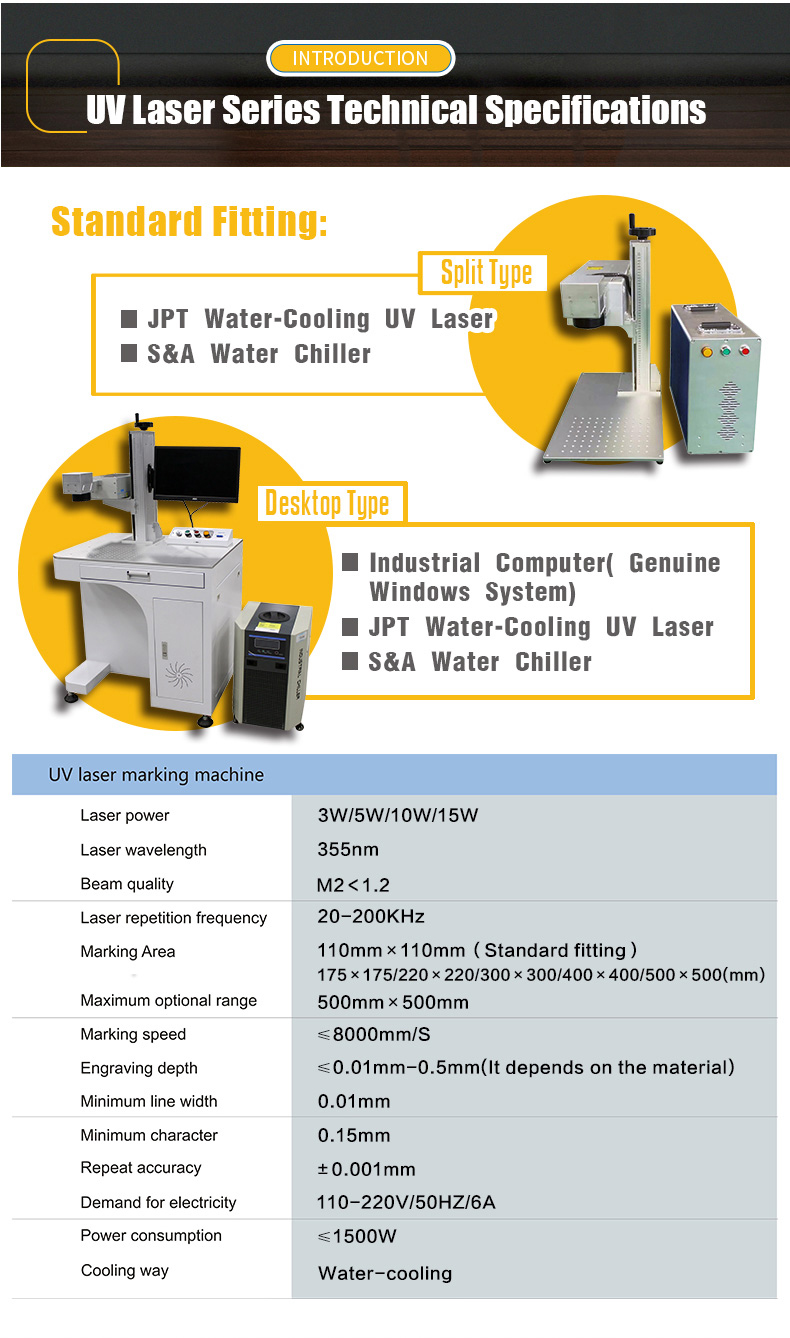

Technical Paramters:

• Laser Power: 3W/5W
• Marking Area: 110*110mm/150*150mm/175*175mm/220*220mm/300*300mm/400*400mm/500*500mm
• Laster Source: JPT Seal-355-3/JPT Seal-355-5
• Repetition Rate Frequency : 20-200kHZ@JPT
• Pulse Duration: <10ns@60kHz
• Wavelength: 355nm
• Output power adjustment range 10%-100%
• Marking Speed: 8m/s
• Engraving Depth:≤0.01-0.5mm (Depends on the material)
• Min. Line Width: ≤0.01mm (Depends on the material)
• Min. Character: 0.15mm (Depends on the material)
• Input Voltage: 110V-240V/50-60Hz
• Complete Power Consumption: ≤1500W
• Cooling Way: S&A Water-cooling
• Ships by sea including tariffs and broke fees around 60 days.

Application Advantages:

• Suitable for various material and catagory like 3C, LED Lineation, Silcon Processing.
• High Quality Beam, focusing spot is smaller, that can achieve hyper fine marking
• Thermal impact area is very small, will not produce thermal effect, will not produce material burning problem
• Stable performance, small size , low power consumption.
• The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
• Applicable Material: Cosmetics, Drugs, Food and other Macro-molecule material packaging surface, Flexible PCB, LCD Glass QR Code, Metal Surface Coating, Plastic Keys, Electronic Componentsm Gifts, Communication Equipment, Construction Materials,etc
