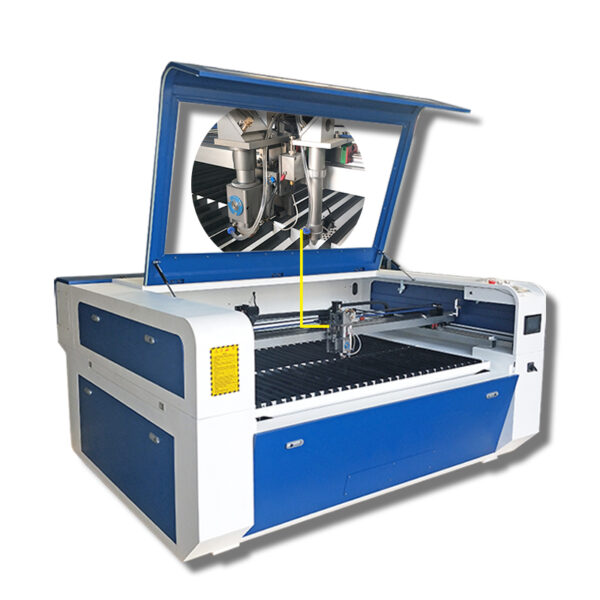

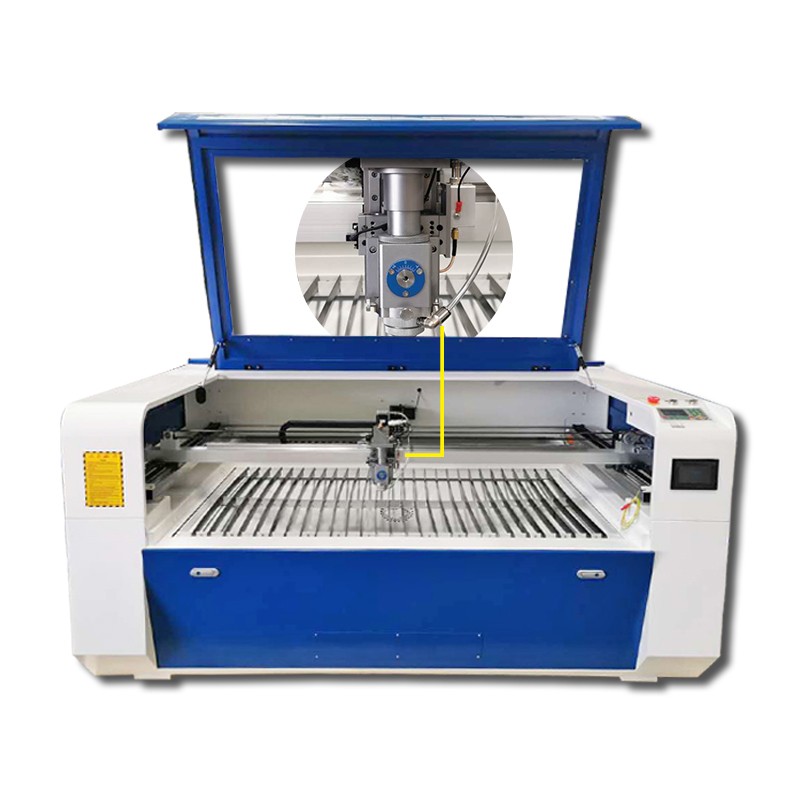

150W/180W Hybrid CO2 Laser Cutter Laser Engraver with 1300×900mm Workbench and S&A Water Chiller for Metal&Non-Metal Cutting

Advantage:

• Adopt high-precision linear guide rail drive to make the optical path more stable, cutting and engraving better.
• Using DSP control system, fast speed, simple operation, high-speed engraving.
• The beam structure is made of high-strength aluminum alloy, which has the advantages of light weight, low resonance and smoother running than traditional steel frame beams.
• Very suitable for cutting a whole plate of MDF, acrylic,non-metals and carbon Steel≤1.8mm, Stainless Steel≤1.5mm.

​This Listing Include:

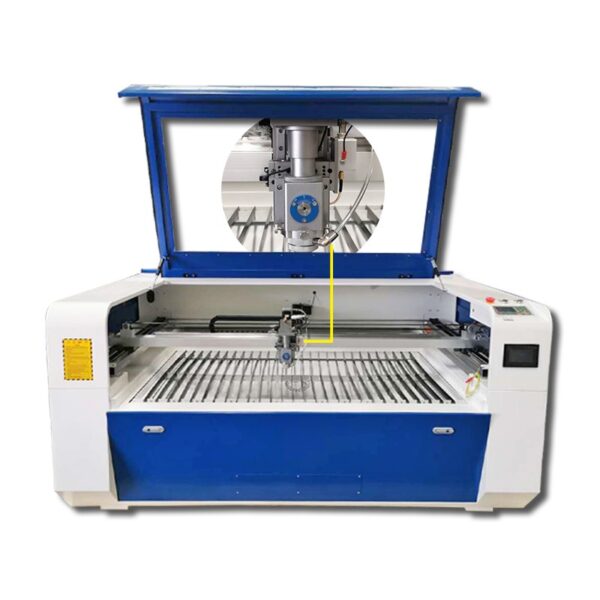

• Laser Cutter Machine(Pass Through Doors)
• 150W W6 or 180W W8 RECI Laser Tube( 80W W2 RECI Laser Tube Optional)

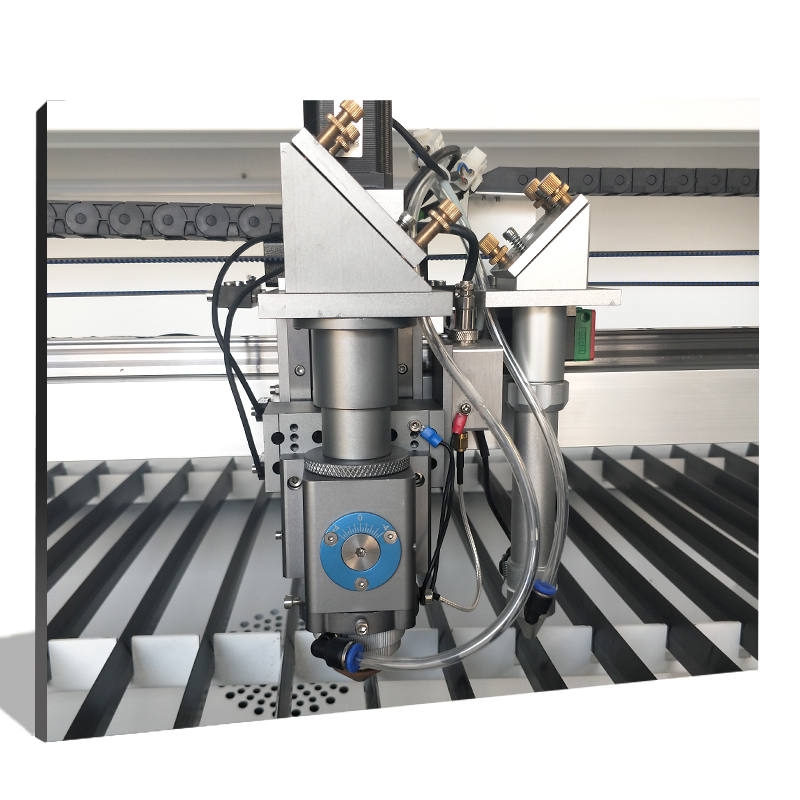

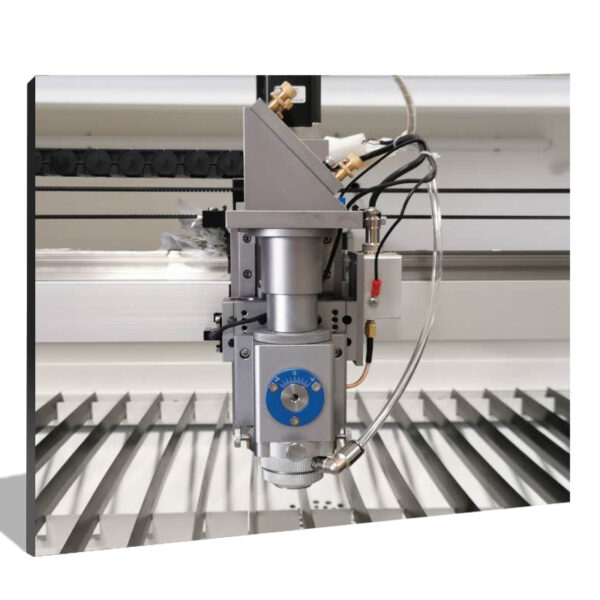

• Hybrid Cutting Head for metal&non metal cutting( Standard Non-metal Engraving Head Optional)
• Slat Workbench 1300×900mm
• S&A Water Chiller CW-5200( S&A CW-3000 Water Chiller for 80W W2 Laser)
• Air Compressor
• Exhaust Fan
• Red Dot Pointer
• HoneyComb Workbentch 1300×900mm
• Lifting Workbentch
• Open Cover Protection
• Warning Light
• Auto Blowing

​Value-Added Options:

• Rotary Device×2(Tailstock type and Roller Type)
• WIFI
• CCD(1.8 Million Pixel)

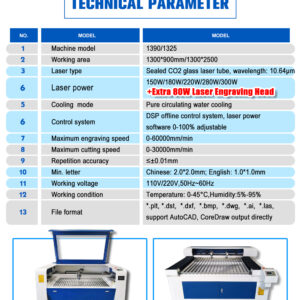

Technical Parameters:

• Laser Source: RECI W6 150W/W8 180W CO2 Laser Tube
• Engraving Size: 1300*900mm
• Cutting Speed: 0-300mm/s
• Engraving Speed: 0-600mm/s
• Min. Charactor: 1.0mm*1.0mm
• Control System: Ruida DSP System
• Input Voltage: 110V, 60Hz
• File Format: .plt .dxf .dst .ai .bmp .las. CAD,CoreDraw,etc.
• Overrall Size: 2000*1560*1090mm
• Packing Size: 2150*2050*1200mm
• G.W: 500 Kg

Delivery Notes:

• Delivery Terms: DDP(Free Shipping by Sea&Truck to Door including Tariffs Applicable to US Customers Only, other countries and area please email us for shipping details)
• Delivery Time: 60 to 70 Days
