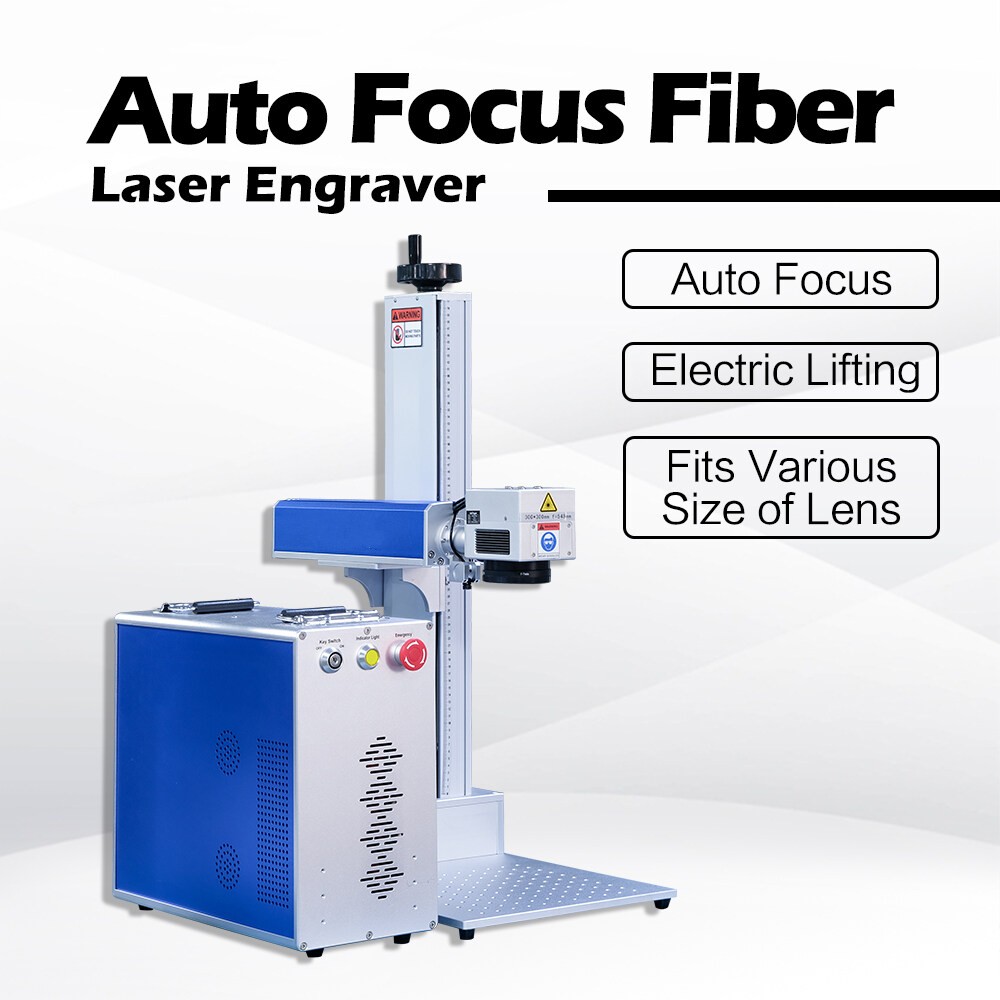

Auto Focus 20W/30W/60W YDFLP-M7-M-R JPT MOPA M7Fiber Laser Engraver Metal Laser Marking Machine

Name: Auto Focus 20W/30W/60W YDFLP-M7-M-R JPT MOPA M7Fiber Laser Engraver Metal Laser Marking Machine
SKU: SFX-GS-JPT MOPA-C
Availability: InStock

$7,532.00 – $11,992.00

Auto Focus 20W/30W/60W JPT MOPA M7 Fiber Laser Engraver. EZCAD2 and EZCAD3 for optional. Compatible with Lightburn.

SKU: SFX-GS-JPT MOPA-C

Categories: Engraving, Fiber Lasers, Laser Marking Machines

Tags: 2-5d-fiber-laser, auto-focus, fiber-laser-engraver, laser-marking-machine

Description
Additional information

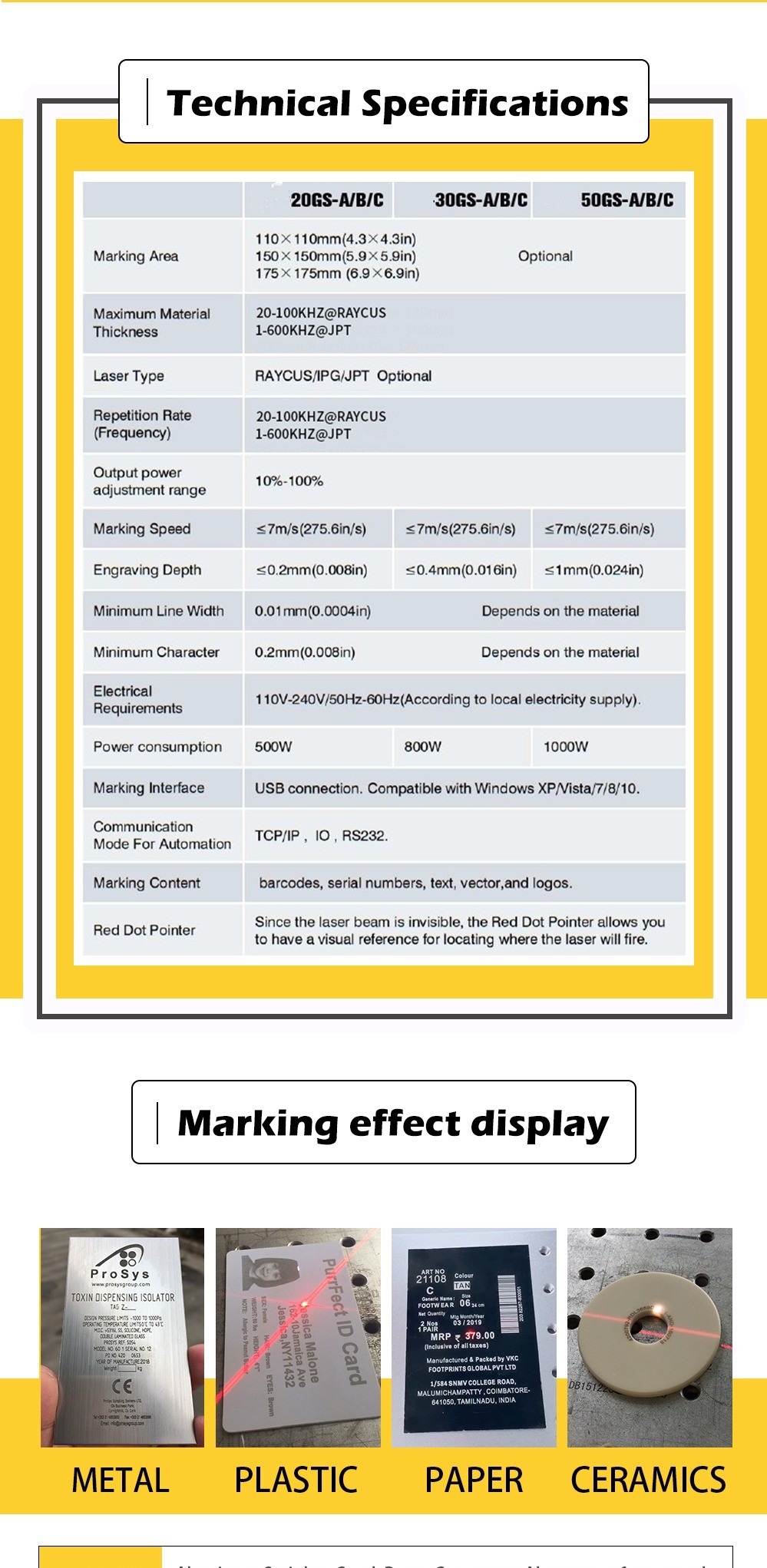

Laser Source: 20W/30W/60W YDFLP-M7-M-R
Adjustable Frequency Range: 1-4000kHz
Adjustable Pulse Width Range : 2-350ns@20W/30W; 2-500ns@60W/80W/100W
Maximum Pulse Energy: 0.8mj@20W/30W; 2.0mj@60W/80W; 1.5mj@100W

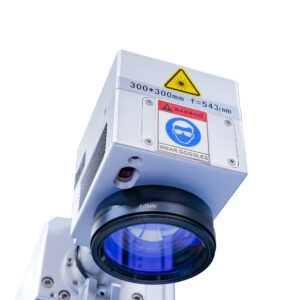

Marking Area(Lens): 110*110mm/150*150mm/175*175mm/220*220mm/300*300mm Optional
Rotary Axis: D80/100/125mm Optional
Software: EZCAD2.0 Compatible with Lightburn/EZCAD3.0. Support WIN7/8/10 System

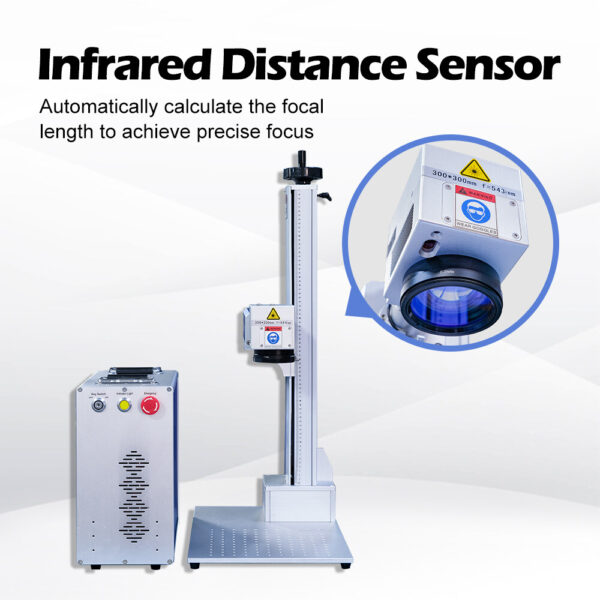

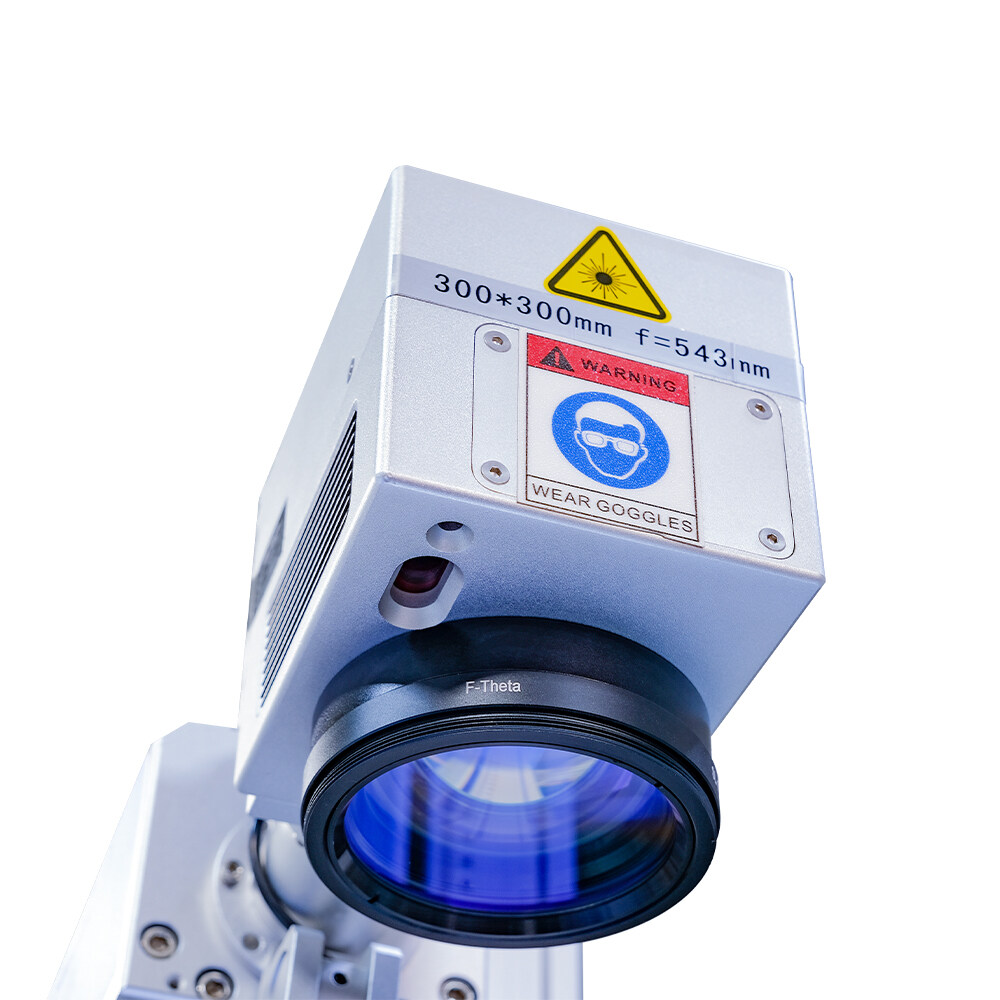

Infrared Distance Sensor. Automatically Calculate the Focal Length to Achieve Precise Focus.

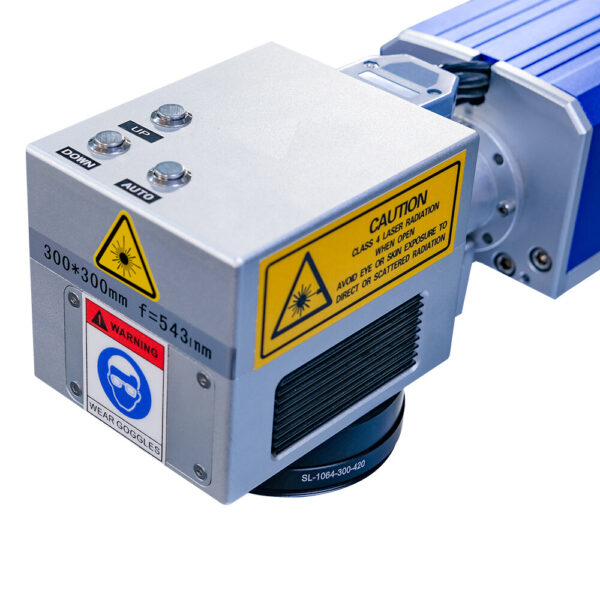

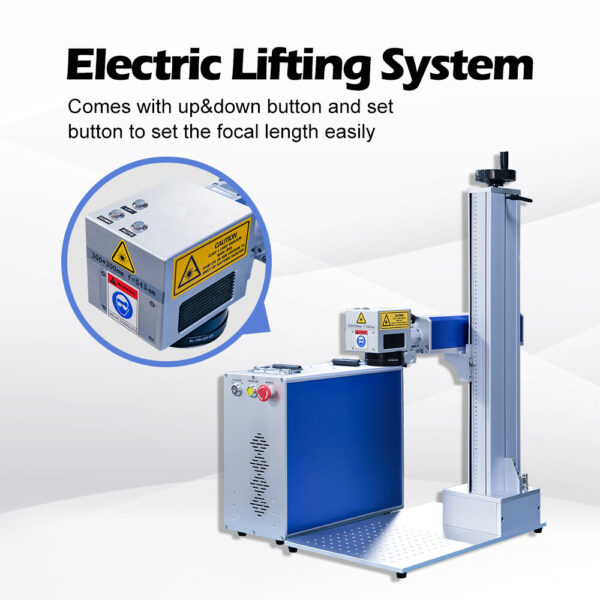

Auto Focus System. Comes with Auto, UP & Down Button for Easy Focusing.

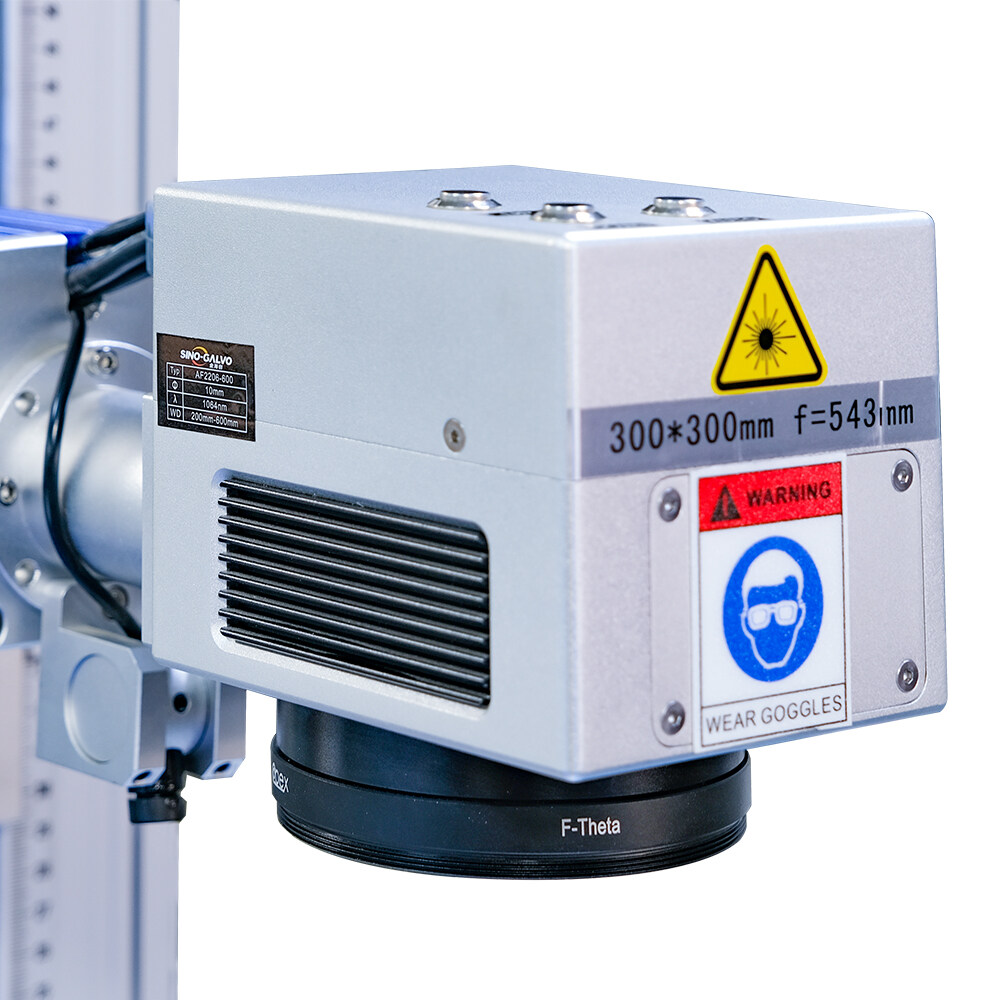

Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
2 Years Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine
The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
The machine can directly use SHX, TTF fonts; Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
Free shipping by DHL/UPS around 7 to 15 days, No Import Duty for American Customers.
After Sales Center in NY, US. Offer Remote Assistance for any Operation Issues.

laser-power	20W, 30W, 60W
lens	110×110mm, 150×150mm, 175×175mm, 200200mm, 220220mm, 300300mm, 7070mm
rotary-axis	D100, D125, D69, D80
software-additional-functi	EZCAD2.0, EZCAD3.0, EZCAD3.0 2.5D
