1000W/1500W/2000W/3000W High Precision Fiber Laser Cutting Machine 600*800mm (24″*32″) Working Area for Gold Silver

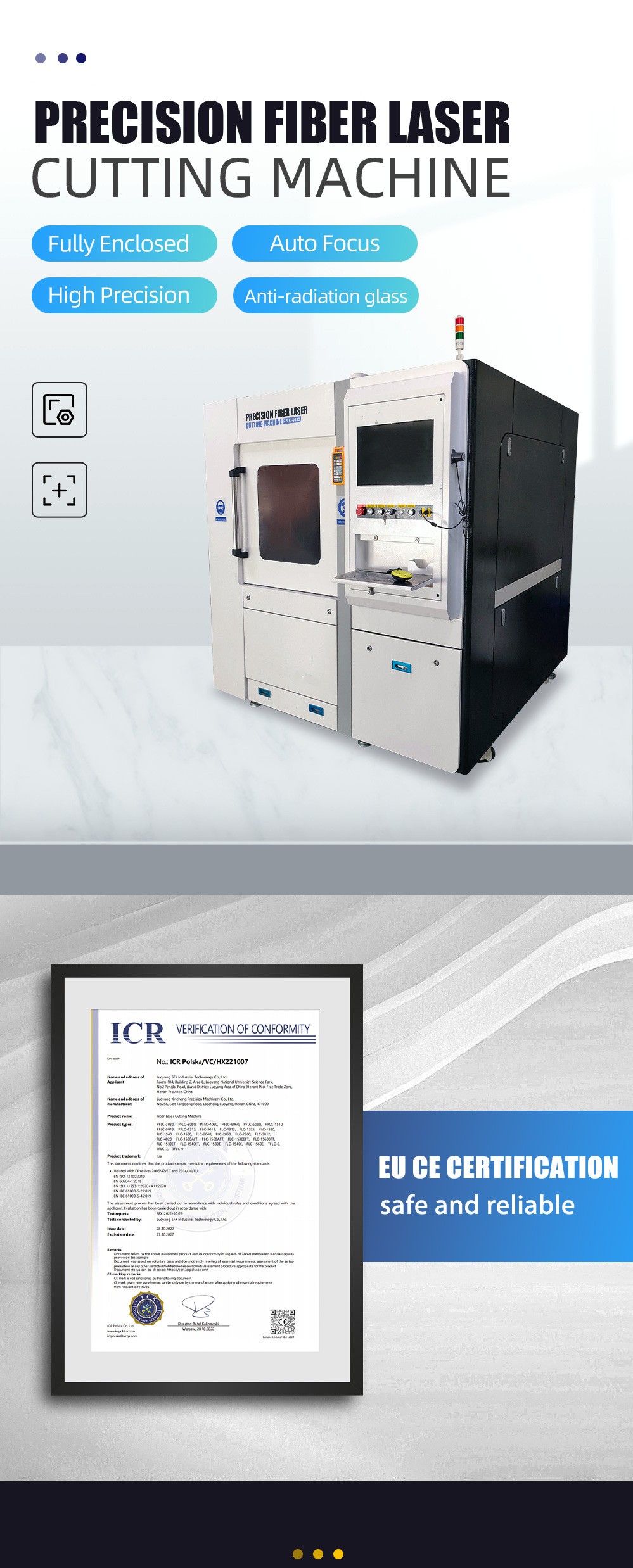

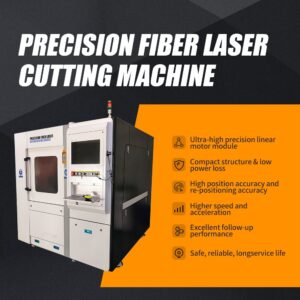

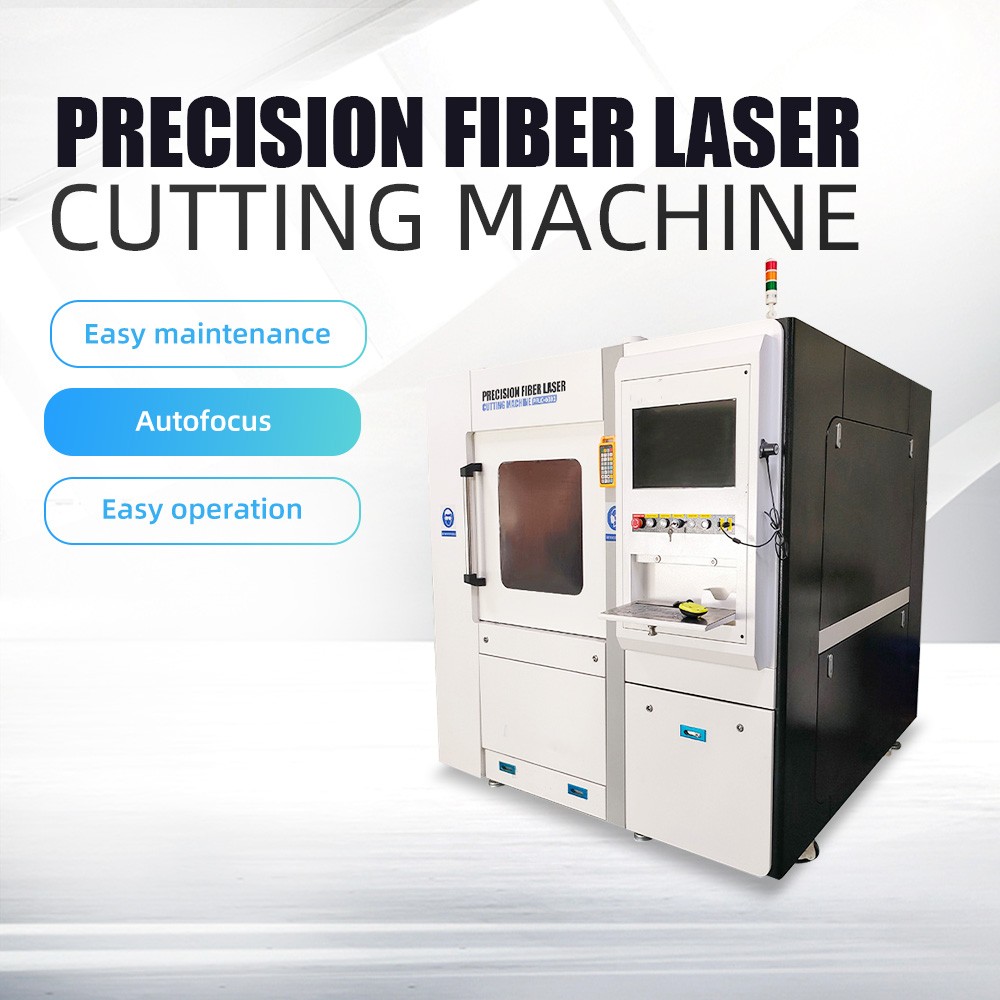

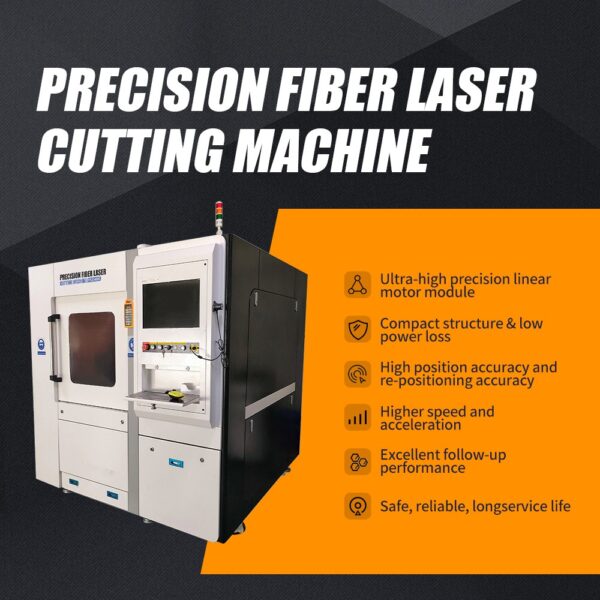

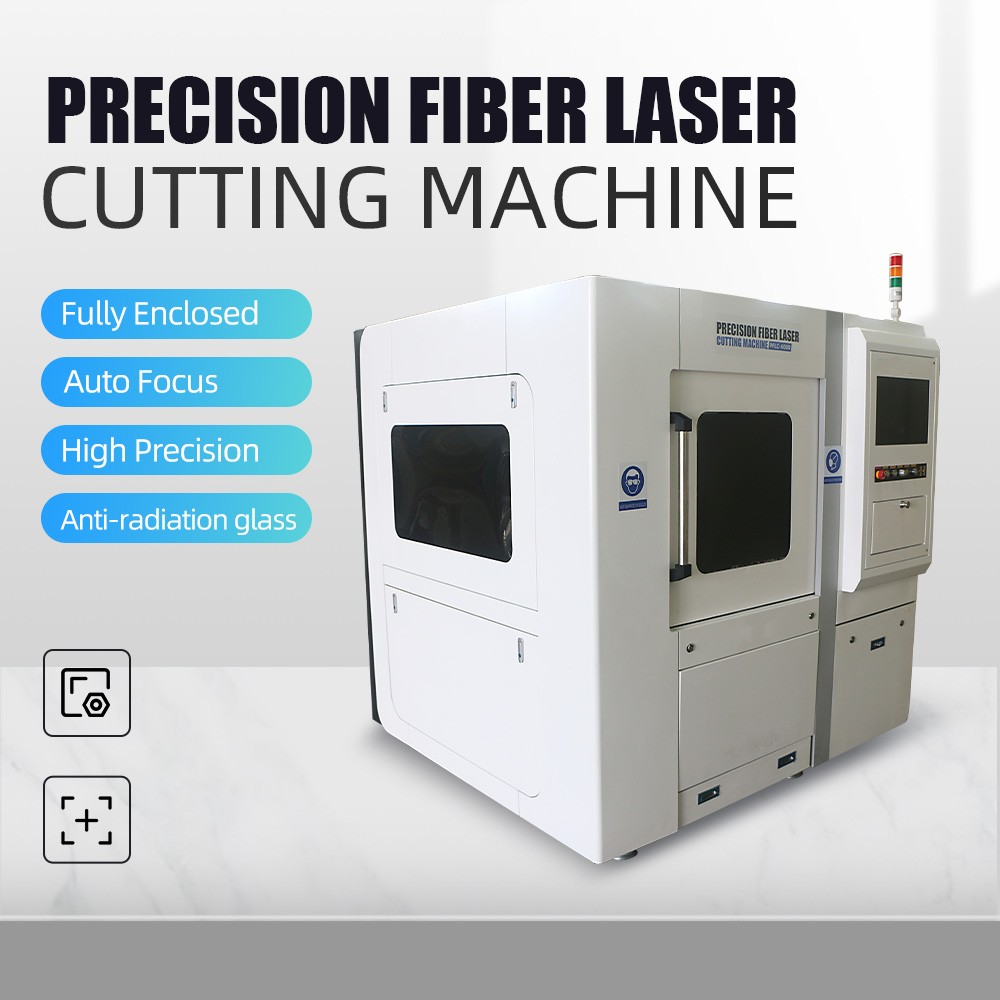

1000W/1500W/2000W/3000W Fully Enclosed High Precision Fiber Laser Cutting Machine

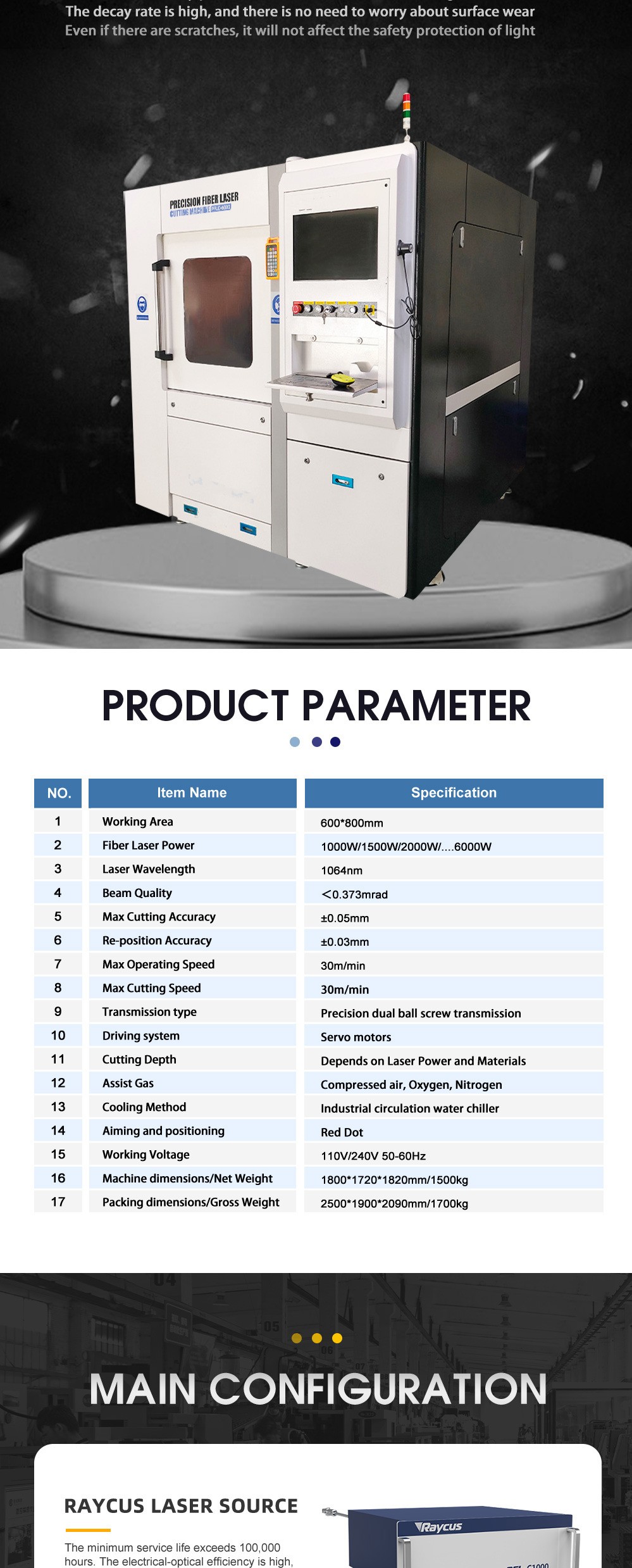

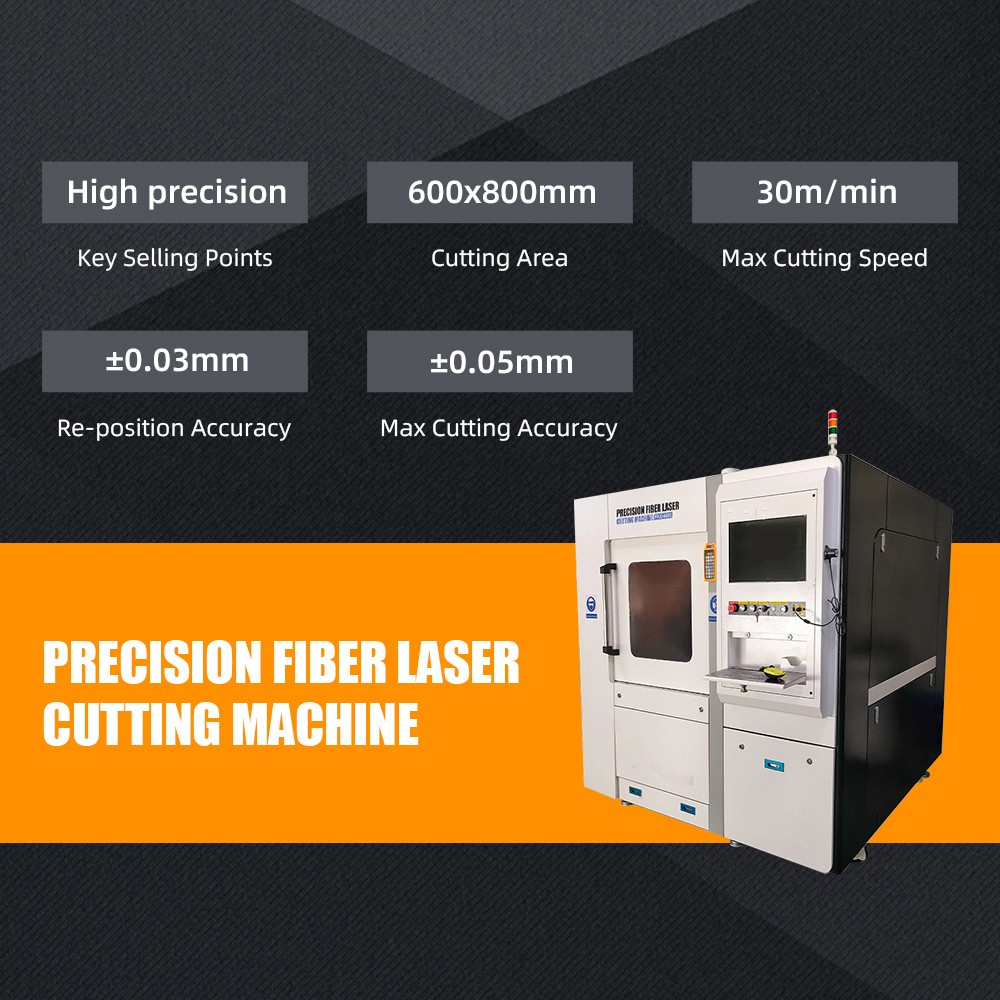

Technical Parameters:

• Working Area: 600*800mm
• Fiber Laser Power: 1000W/1500W/2000W/3000W
• Laser Wavelength: 1080nm
• Beam Quality: ＜0.373mrad
• Cutting Accuracy: ±0.05mm
• Re-position Accuracy: ±0.03mm
• Max Operating Speed: 30m/min
• Cutting Speed: Depending on Material
•  Assist Gas: Air, Oxygen, Nitrogen
•  Cooling Method: Industrial Circulation Water Chiller
•  Aiming and Positioning: Red Dot
•  Working Voltage: 110V/240V 50-60Hz
•  Machine Dimensions/Net Weight: 1800*1720*1820mm/1500kg
•  Packing Dimensions/Gross Weight: 2500*1900*2090mm/1700kg

Features and Advantages:

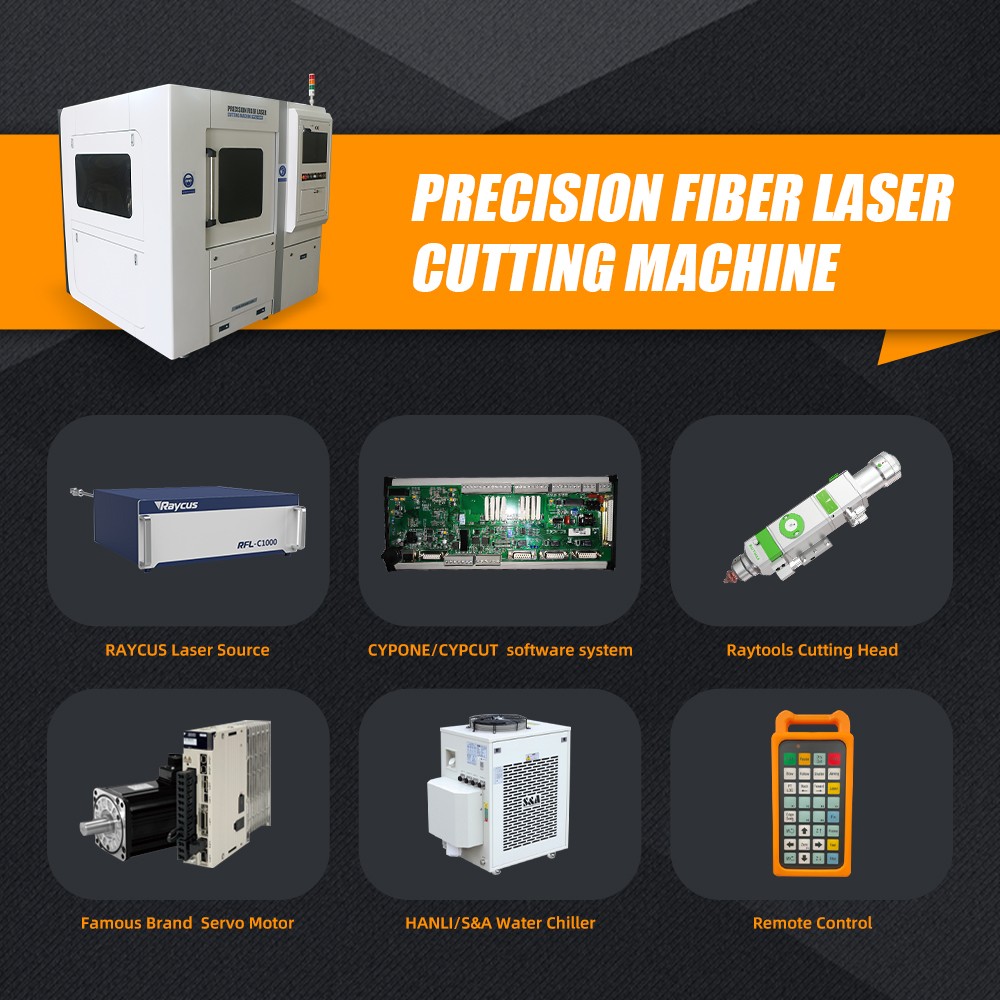

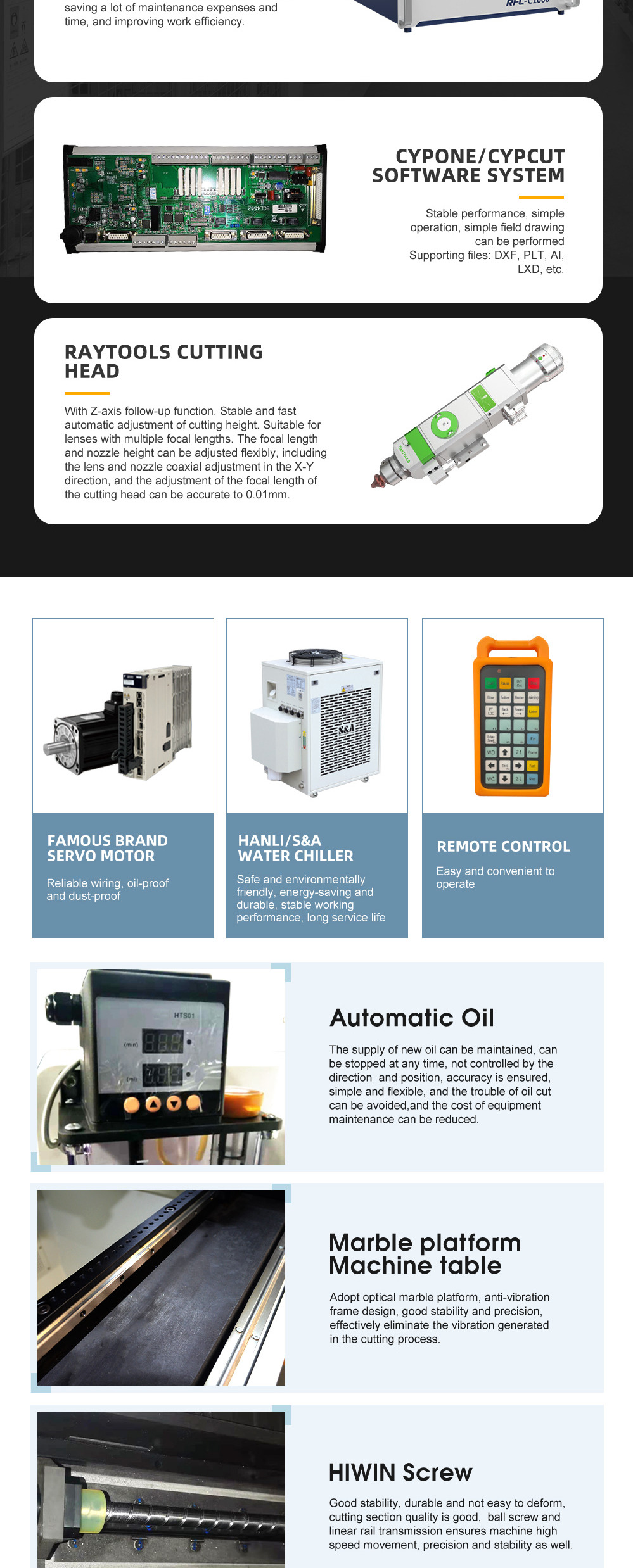

• JPT Laser Source; CypCut Software System; Raytools Cutting Head;
• Panasonic Servo Motor, Reliable Wiring, Oil-proof and Dust-proof
• S&A Water Chiller, Safe and Environmentally Friendly, Energy-saving and Durable, Stable Working Performance, Long Service Life
• Automatic Oil; Marble platform Machine table; HIWIN Screw; Air Jig; Materials Receiving Tray

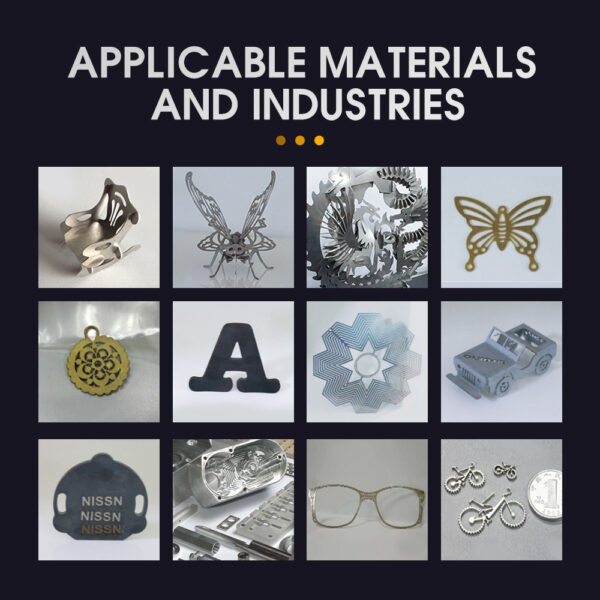

• Machine is Suitable for Ultra Precision Cutting, Such as Carbon Steel, Stainless Steel, Galvanized Sheet, Aluminum Alloy, Titanium Alloy, Gold, Silver, Aluminum, Brass, Copper and Tight Sheet Metal Fittings, etc.
• 2 Years Warranty, Factory Direct Sale, Offer Customer and Technical Support; Ships by Sea&Truck to Door Around 60 to 70 Days.
