1000W 1500W 2000W Fiber Laser Cutting Machine Metal Laser Cutter 1300*2500mm Workbed

Product Parameters

• Model: 1325
• Working area: 1300*2500mm
• Fiber Laser Power: 1KW/1.5KW/2KW
• Laser Wavelength: 1080nm
• Beam Quality: ＜0.373mrad
• Cutting Accuracy: ±0.05mm
• Re-position Accuracy: ±0.03mm
• Max. Acceleration: 1.2G
• Max.Cutting Speed: 60m/min
• Assist Gas: Air, Oxygen, Nitrogen
• Cooling Method: Industrial Circulation Water Chiller
• Aiming and Positiong: Red Dot
• Working Voltage: 110V/220V/380V 50-60Hz(According to customer’s local voltage)
• Packing Dimensions: 370*207*172cm
• Packing Weight: 2500kg

Features and Advantages

• MAX Laser Source. Modular Design, High Integrated System. Maintenance-free and Highly Reliable. High Beam Quality and Laser Stability. S&A Water Chiller.
• Cypone/Cypcut Sofeware System. Professional Cutting Control System, Adjustable Laser Power. Supports DXF/DWG Format.
• RAYTOOLS Cutting Head. Auto Focus Function. Continuous Focusing for Automatic Cutting of Plates of Different Thicknesses and Materials.
• Yaskawa Nidec Servo Motor, High Positioning Accuracy, Fast Positioning Speed. Japan Nidec, Germany Newgear Reducer. Taiwan PMI Guide Rail/YYC Rrck and Pinion.
• Finishing Heavy-duty Tube Welding Bed. Aviation Industry Extruded Aluminum Beams. Intelligent Lubrication Control System. Remote Control Handle.
• Financial installment assistance can be provided as a solution to US customer’s financial problems.
• Our local technical support in USA can solve customer’s after-sales problems faster and more professionally.
• We provide free sample processing service, which can cut according to the customer’s drawingand provide video.
• We can customize the configuration of the machine according to the customer’s requirements and design the most    suitable machine for customers.
• After the production of the customer’s machine is completed we will provide pictures and trial processing video. We will only arrange transportation after the customer is satisfied. After the machine is delivered we will also provide customers online one-on-one guidance to install and operate the machine.

Application and Warranty

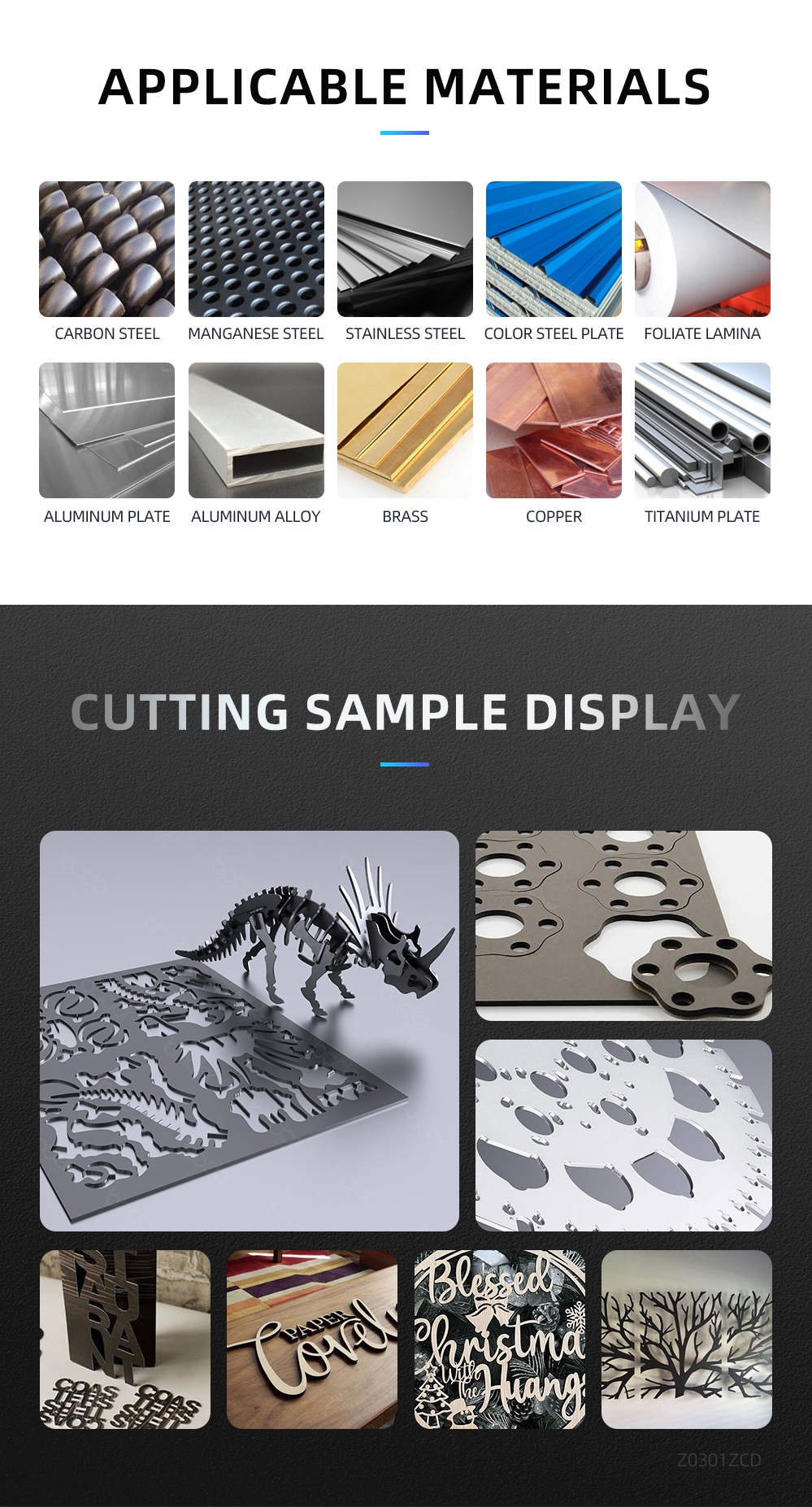

• Applicable Materials: Carbon Steel, Manganese Steel, Stainless Steel, Color Steel Plate, Foliate Lamina, Aluminum Plate, Aluminum Alloy, Brass, Copper, Titanium Plate.
• 1 Year Warranty for the Whole Machine, 2 Years Warranty for the Laser Source. CE & FDA Certificate.
• Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support. After Sales Center in NY, US.
• Free Shipping by Sea&Truck to Door Around 60 to 70 Days. No Import Duty for American Customers.
