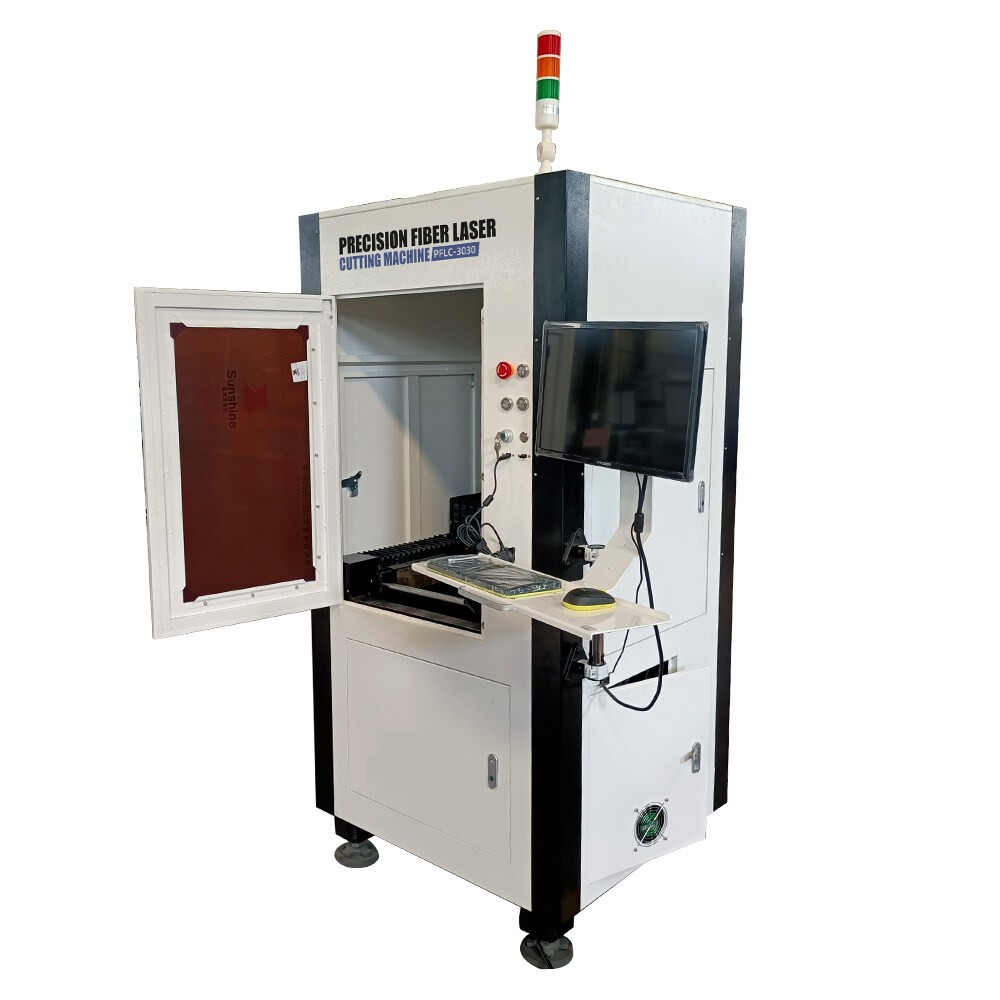

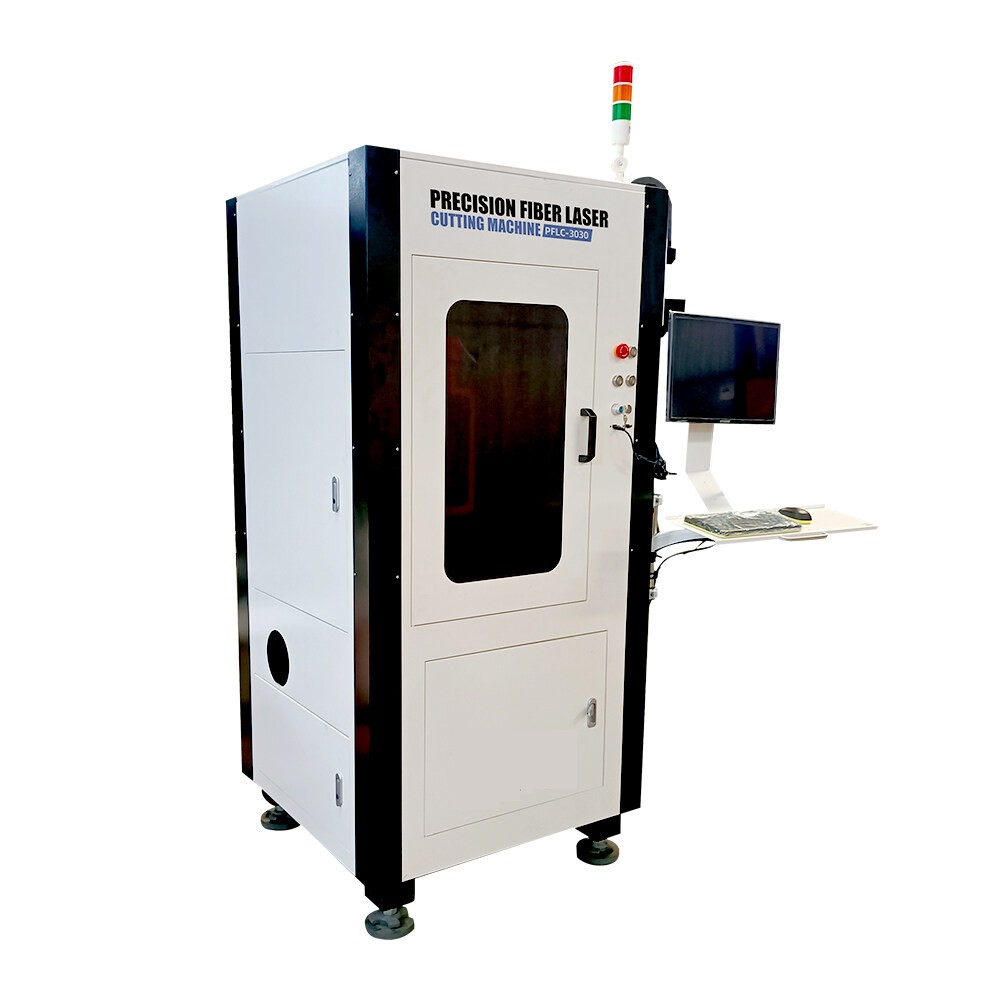

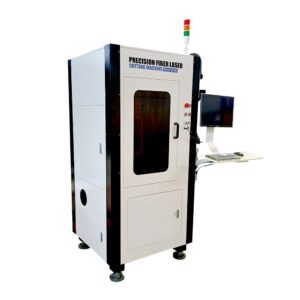

1000W 1500W Fully Enclosed Precision Fiber Laser Cutting Machine with 300*300mm Working Area

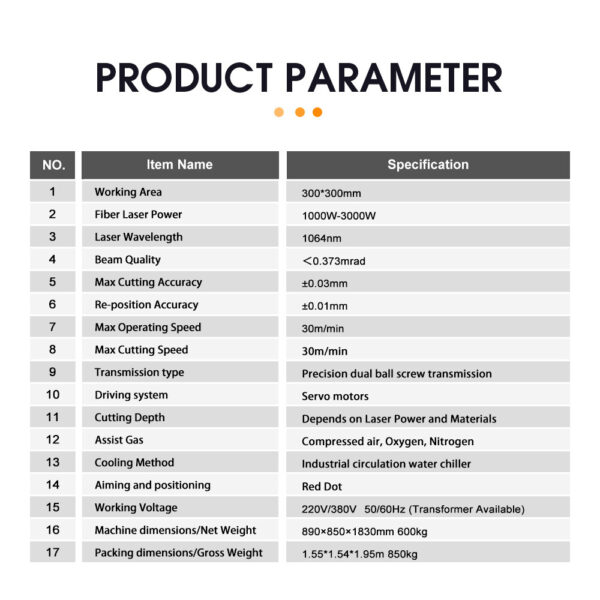

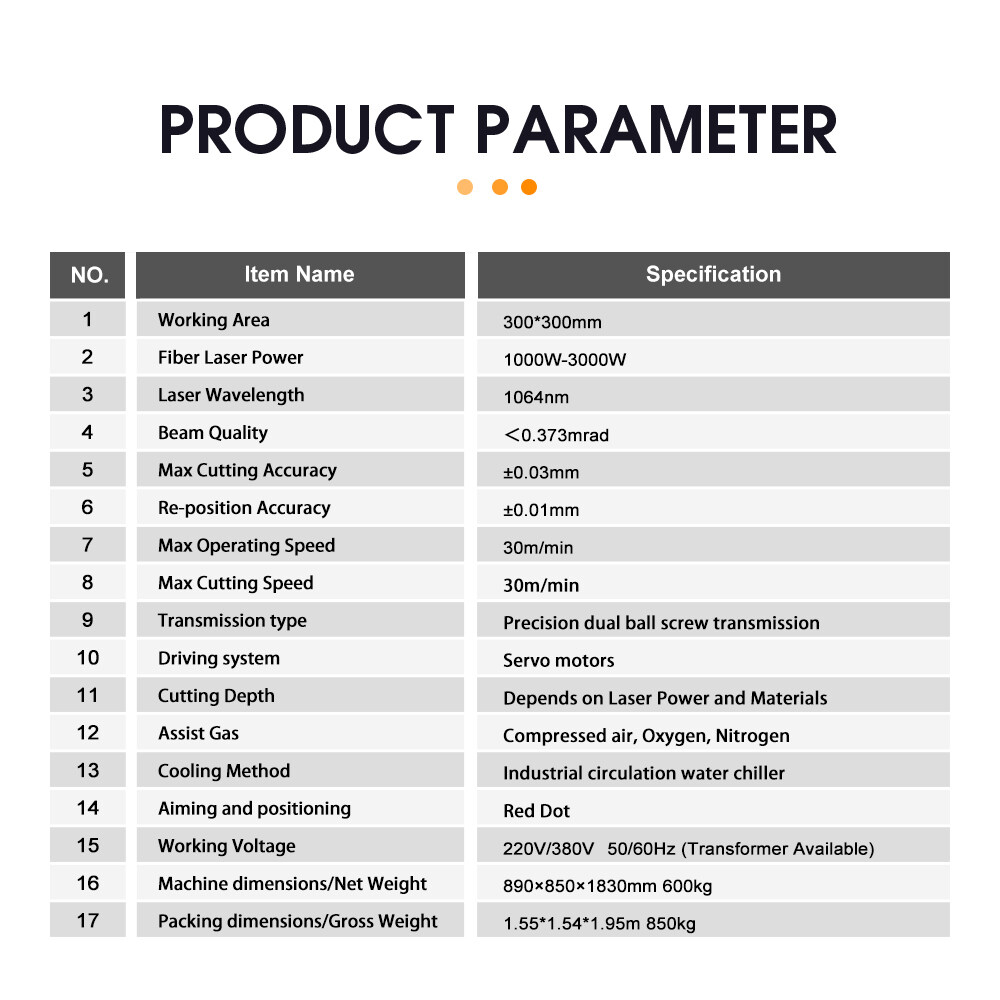

Technical Parameters:

• Model: PFLC-3030
• Working Area: 300*300mm
• Fiber Laser Power: 1000W/1500W
• Laser Wavelength: 1064nm
• Beam Quality: <0.373mrad
• Max Cutting Accuracy: ±0.03mm
• Re-position Accuracy: ±0.01mm
• Max Operating Speed: 30m/min
• Max Cutting Speed: 30m/min
• Transmission Type: Precision Dual Ball Screw Transmission
• Driving System: Servo Motors
• Cutting Depth: Depends on Laser Power and Materials
• Assist Gas: Compressed Air, Oxygen, Nitrogen
• Cooling Method: Industrial Circulation Water Chiller
• Aiming and Positioning: Red Dot
• Working Voltage: 220V/380V 50/60Hz (Transformer Available)
• Machine Dimensions/Net Weight: 890*850*1830mm 600kg
• Packing Dimensions/Gross Weight: 1550*1540*1950mm 850kg

Features and Advantages:

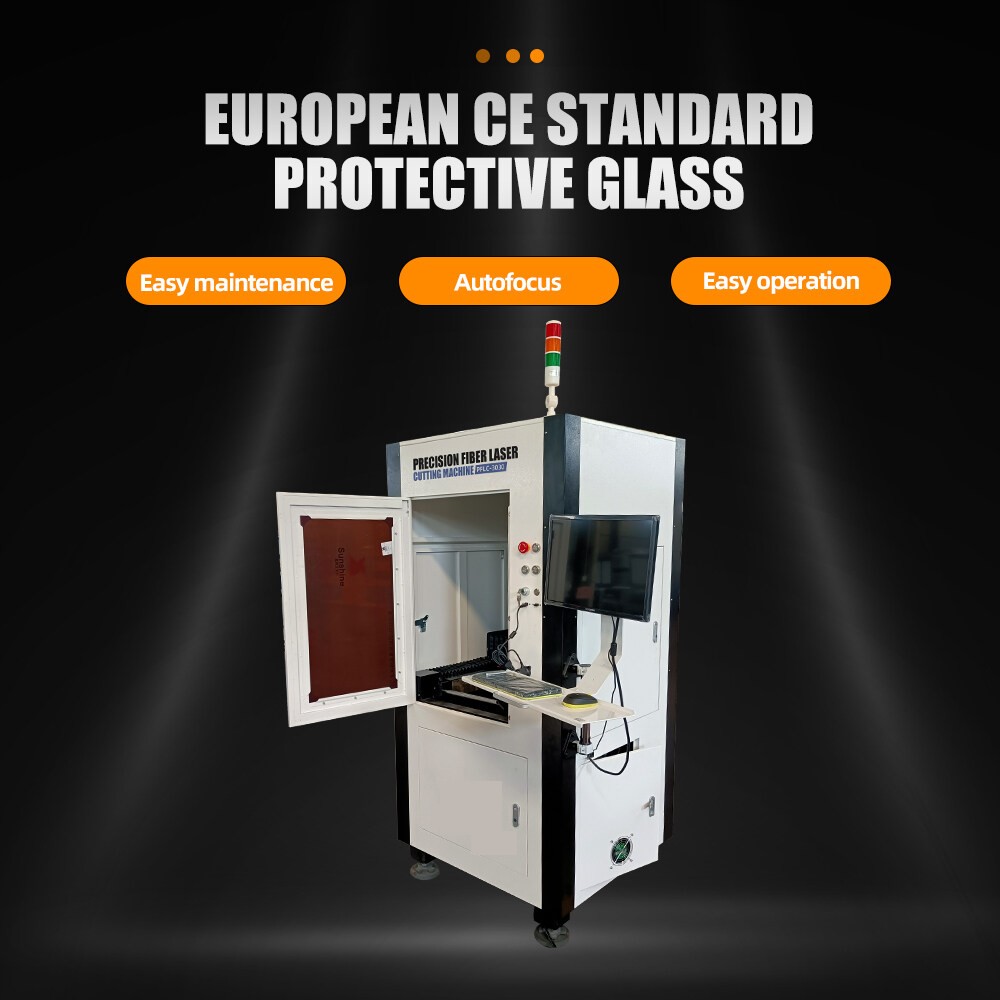

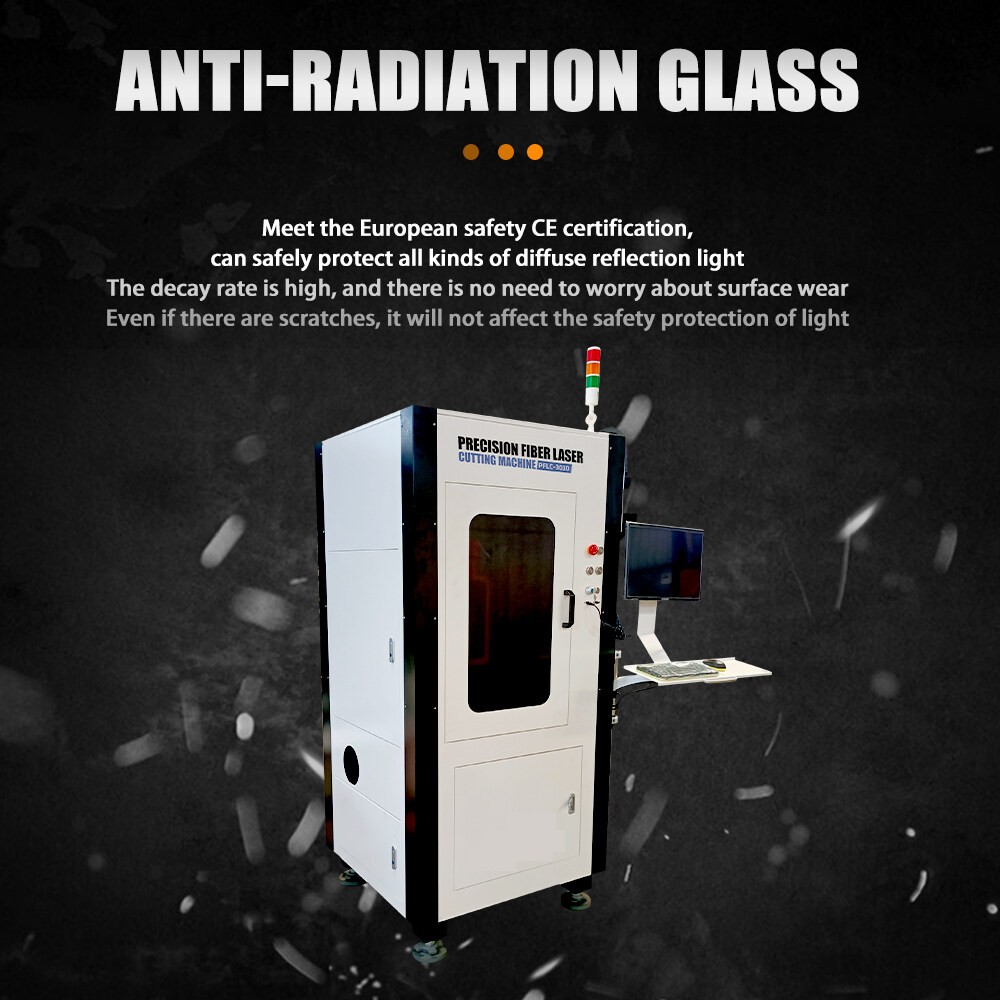

• European CE Standard Anti-radiation Protective Glass. Raycus Laser Source.  Autofocus Function.
• Cypone/Cypcut Software System. Stable Performance, Simple Operation, Simple Field Drawing can be Performed. Supporting Files: DXF, PLT, AI, LXD, etc.
• Raytools Cutting Head. Z-axis Follow-up Function. Stable and Fast Automatic Adjustment of Cutting Height. Suitable for Lenses with Multiple Focal Lengths.
• Famous Brand Servo Motor. Hanli/S&A Water Chiller. Remote Control. Automatic Oil. Marble Platform Machine Table. Hiwin Screw.
• Materials Receiving Tray for Collect the Materials from the Cutting Process. Easy to Take Out.
• Machine Seal. As a Precious Metal Precision Cutting Machine, the Machine is Fully Enclosed to prevent the Smoke and Debris Generated by the Machine from Being Discharged from the Machine During the Cutting Process.

Application and Delivery:

• Machine is Suitable for Ultra Precision Cutting, such as Carbon Steel, Stainless Steel, Galvanized Sheet, Aluminum Alloy, Titanium Alloy, Gold, Silver, Aluminum, Brass, Copper and Tight Sheet Metal Fittings, etc.
• 1 Year Warranty for the Whole Machine, 2 Years Warranty for the Laser Source. Factory Direct Sale, Offer Customer and Technical Support.
• Free Shipping by Sea&Truck to Door Around 60 to 70 Days. No Import Duty for American Customers.
