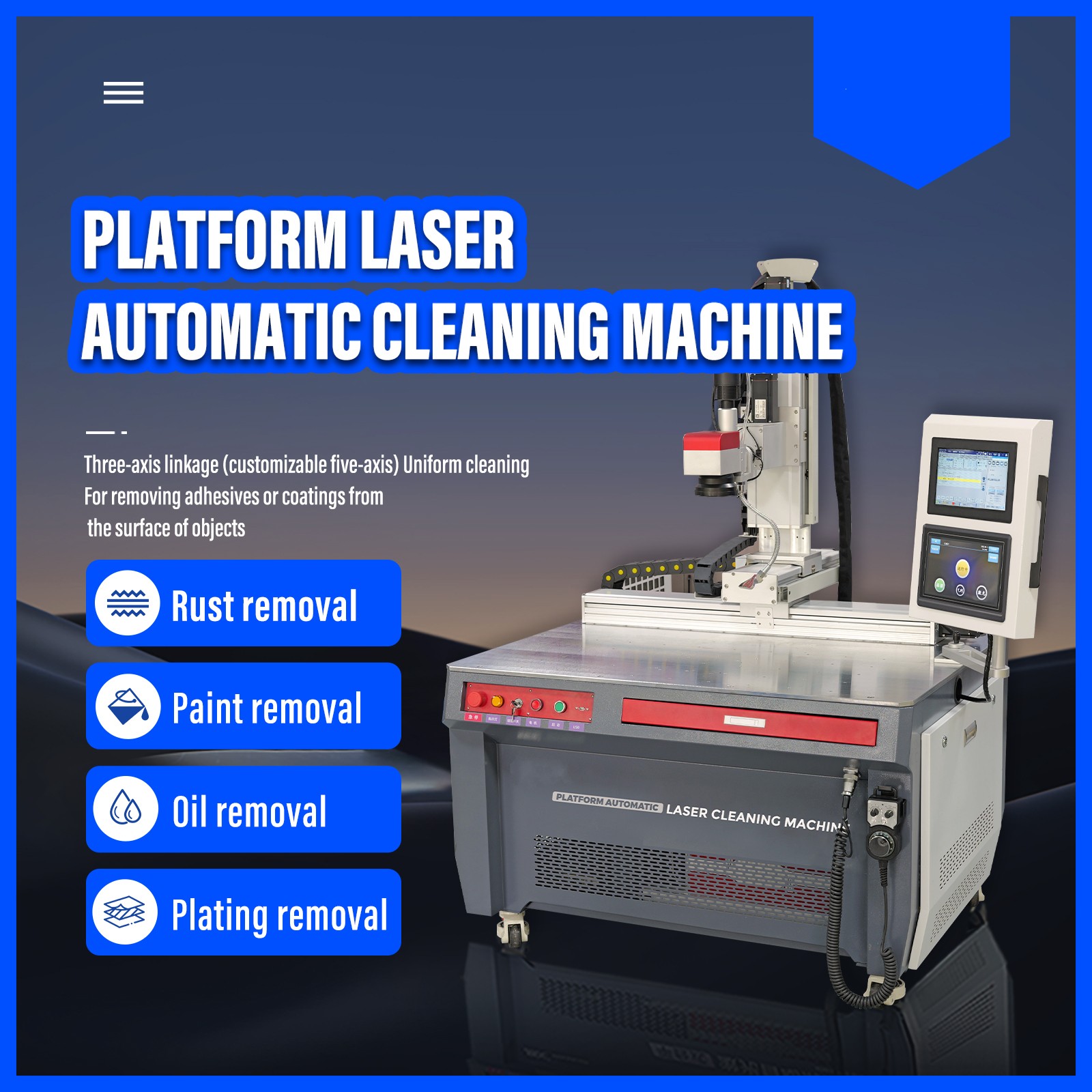

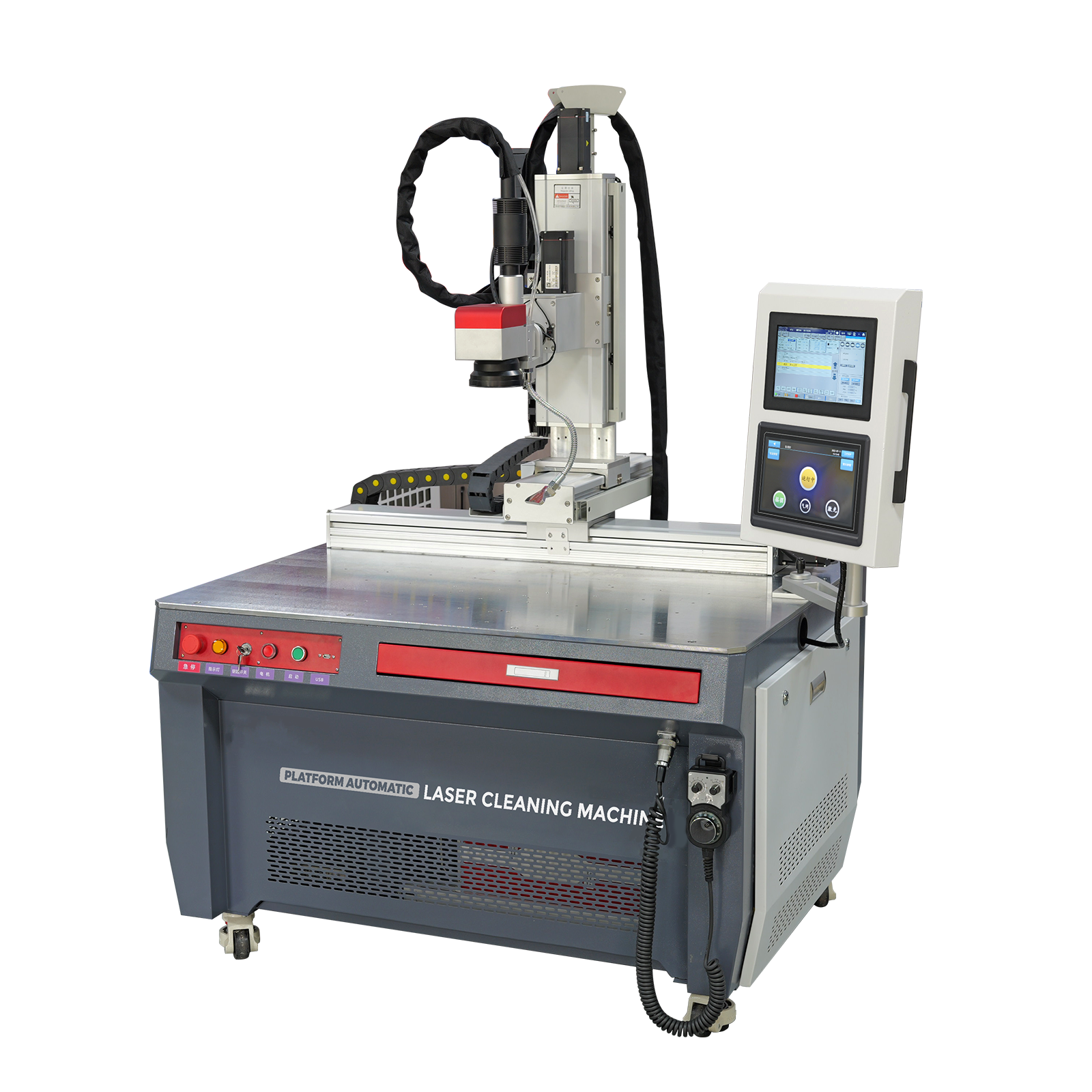

200W 300W 500W Pulsed Platform Automatic Laser Cleaning Machine Laser Rust Oil Paint Plating Remover

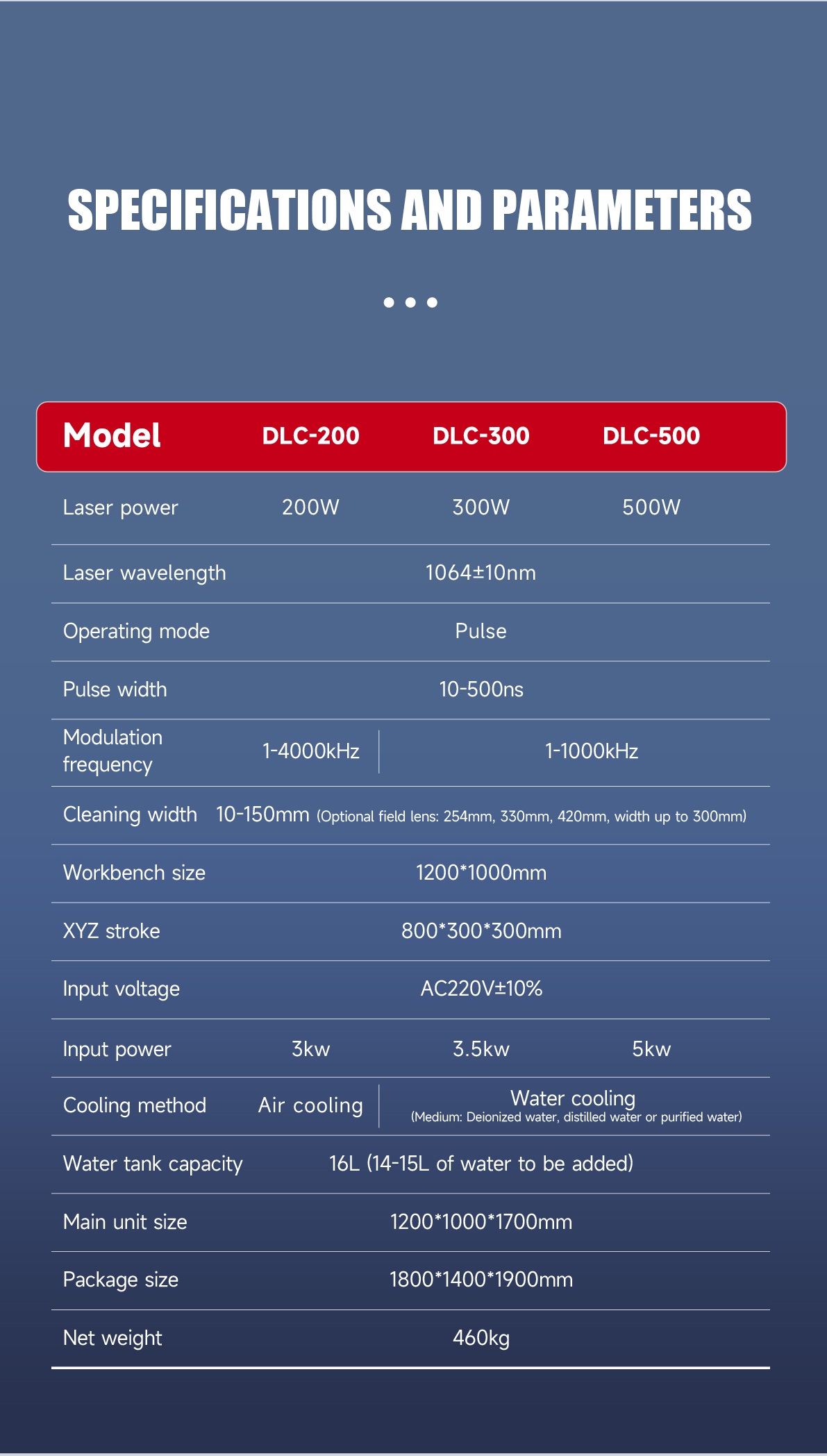

Product Parameters:

• Model: DLC-200 DLC-300 DLC-500
• Laser power: 200W 300W 500W
• Laser wavelength: 1064±10nm
• Operating mode: Pulse
• Pulse width: 10-500ns
• Modulation frequency: 1-4000kHz    1-1000kHz
• Cleaning width:10-750mm(optional field lens：25Amm，330mm，A20mm，width up to 300mm)
• Workbench size: 1200*1000mm
• XYZ stroke: 800*300*300mm
• Input voltage: AC220V±10%
• Input power: 3kw 3.5kw 5kw
• Cooling method: Air cooling   Water cooling (Medium: Deionized water, distilled water or purified water)
• Water tank capacity: 16L (14-15L of water to be added)
• Main unit size: 1200*1000*1700mm
• Package size: 1800*1400*1900mm
• Net weight: 460kg

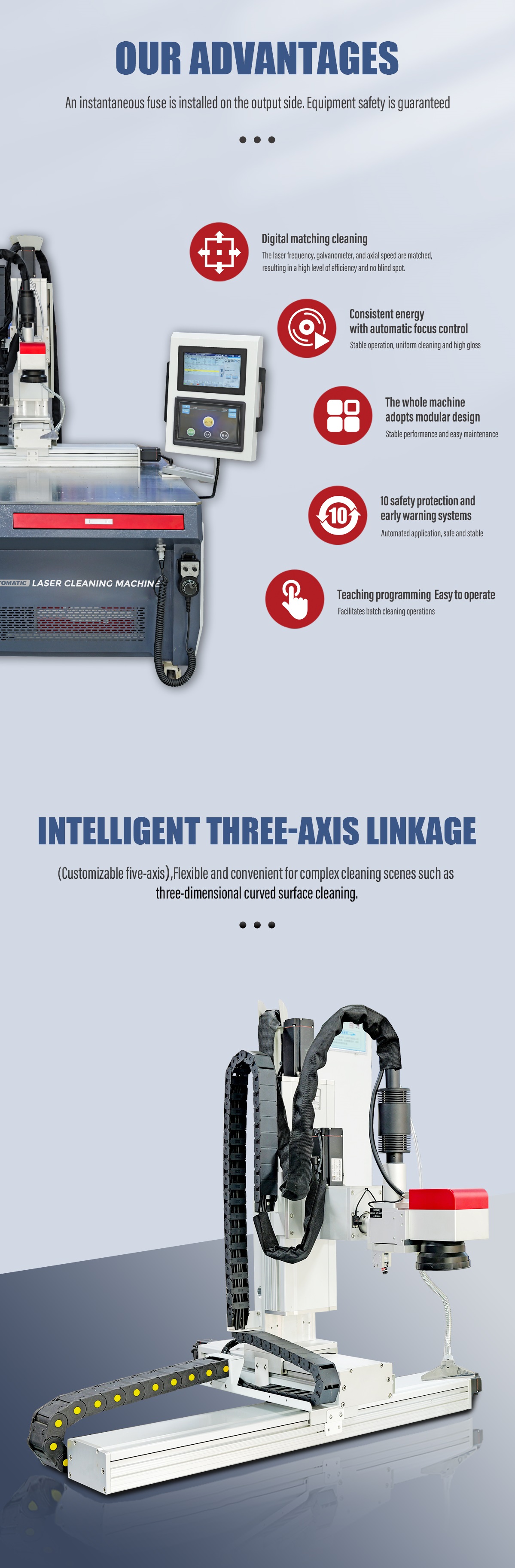

Features and Advantages:

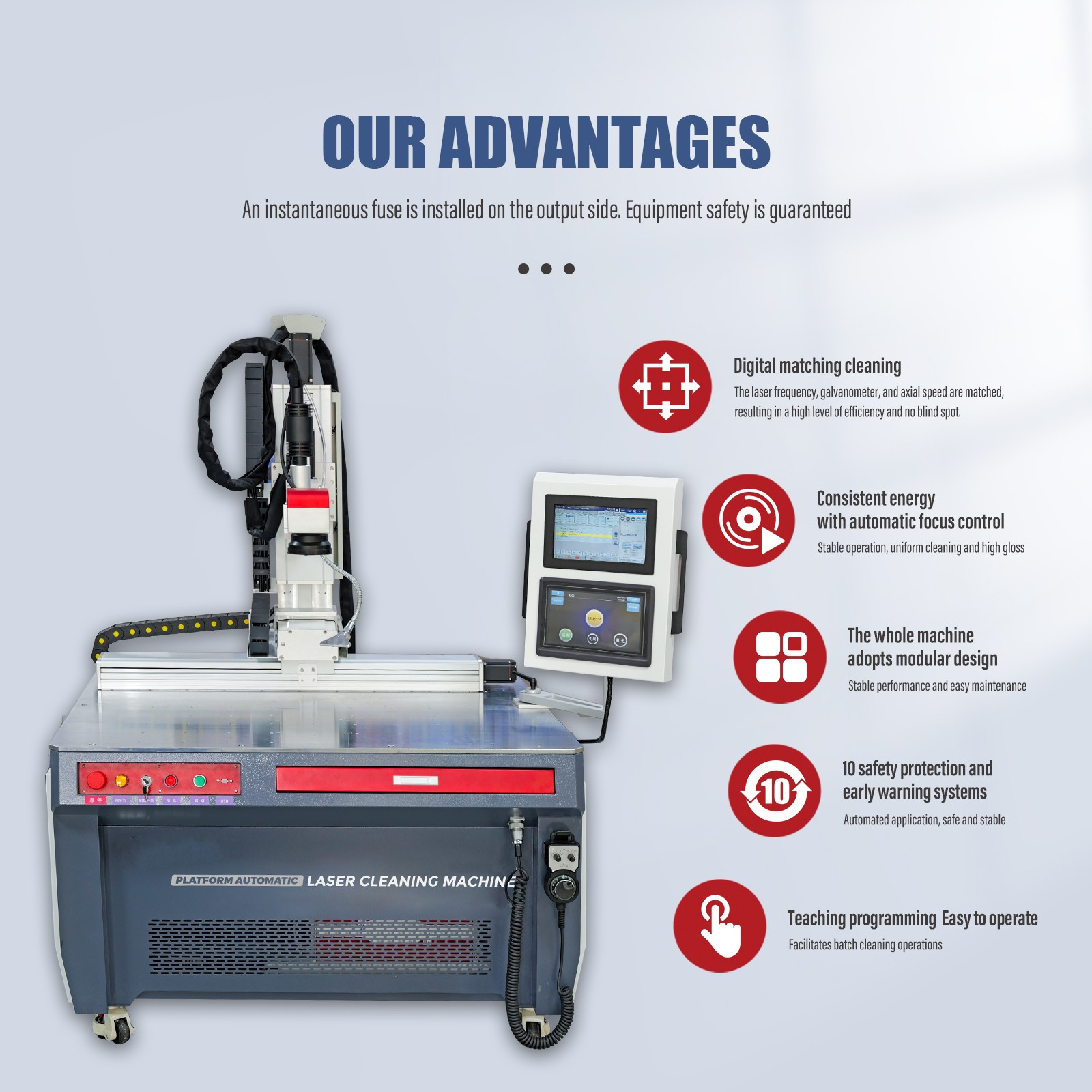

• An instantaneous fuse is installed on the output side. Equipment safety is guaranteed.
• Digital matching cleaning. The laser frequency, galvanometer, and axis speed are matched, high efficiency, no blind spot.
• Consistent energy with automatic focus control. Stable operation, uniform cleaning and high gloss.
• Modular design. Stable performance and easy maintenance.
• 10 safety protection and early warning systems. Automated application, safe and stable.
• Teching programming easy to operate. Facilitates batch cleaning operations.

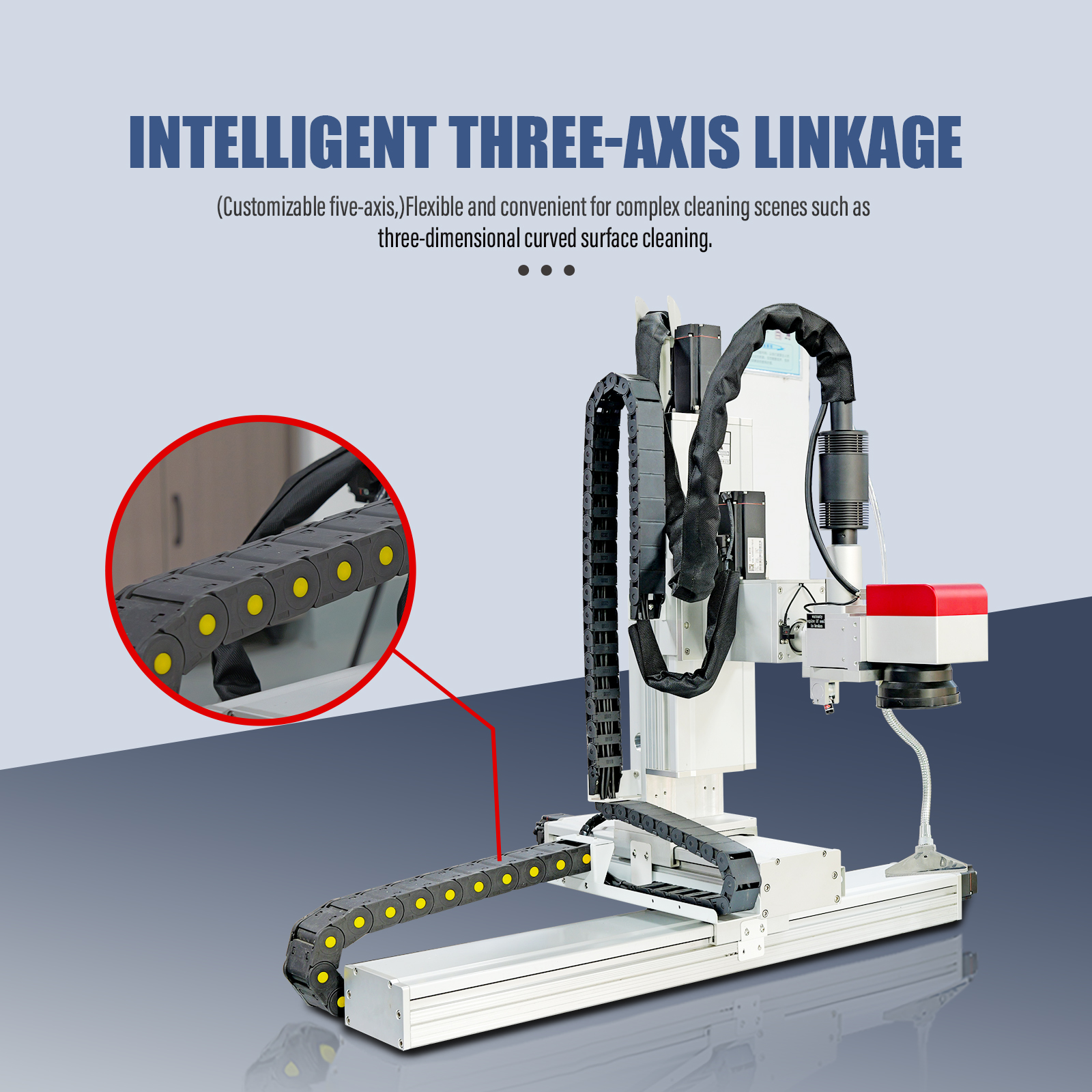

• Intelligent Three-axis Linkage (Customizable five-axis), Flexible and convenient for complex cleaning scenes such as three-dimensional curved surface cleaning.

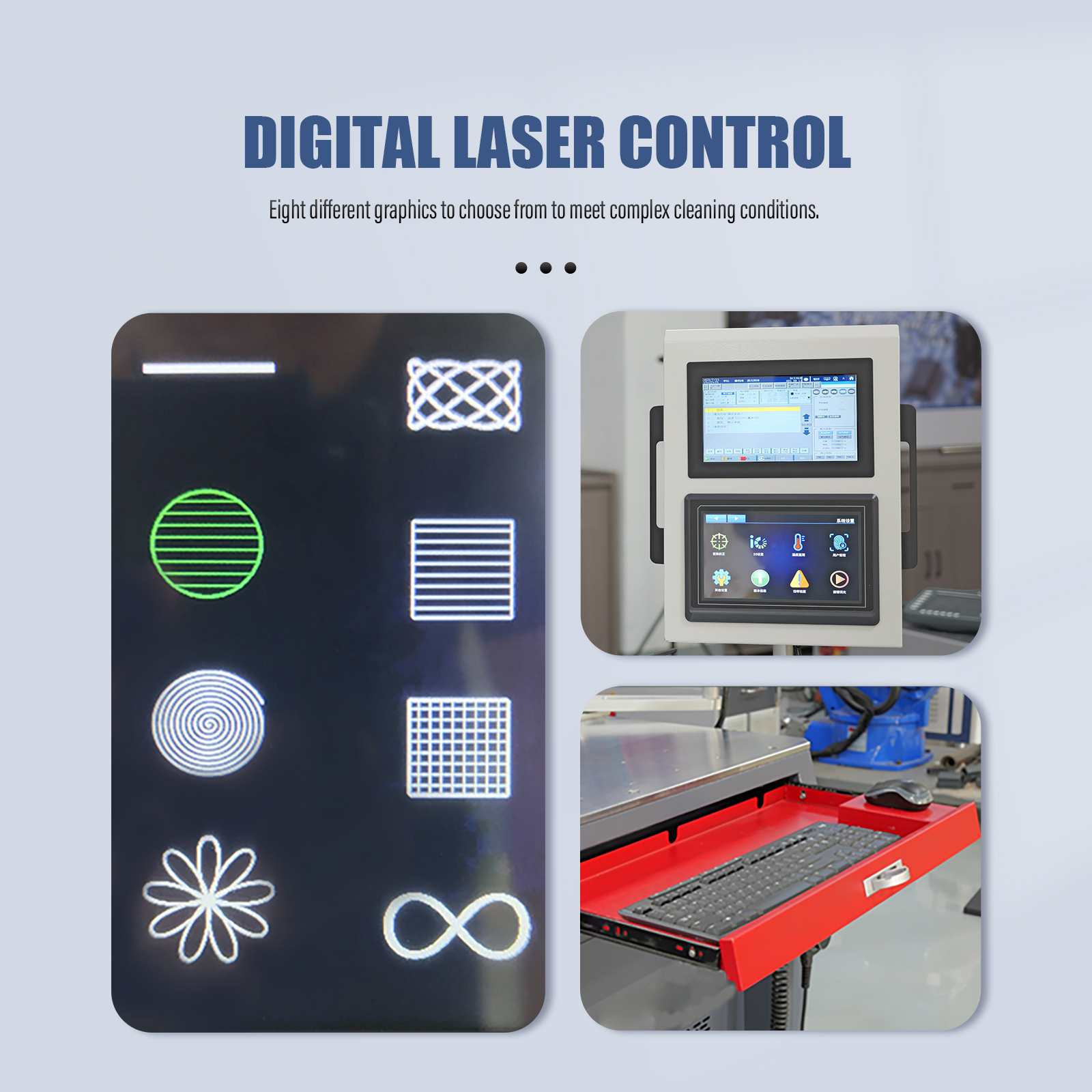

• Digital Laser Control. Eight different graphics to choose from to meet complex cleaning conditions.
• Harsh Tests, Quality Assurance. Heavy dirt, Anti-interference, Vibration , High-temperature, Anti-reflection, Fatigue, Dustroof, High-humidity test.

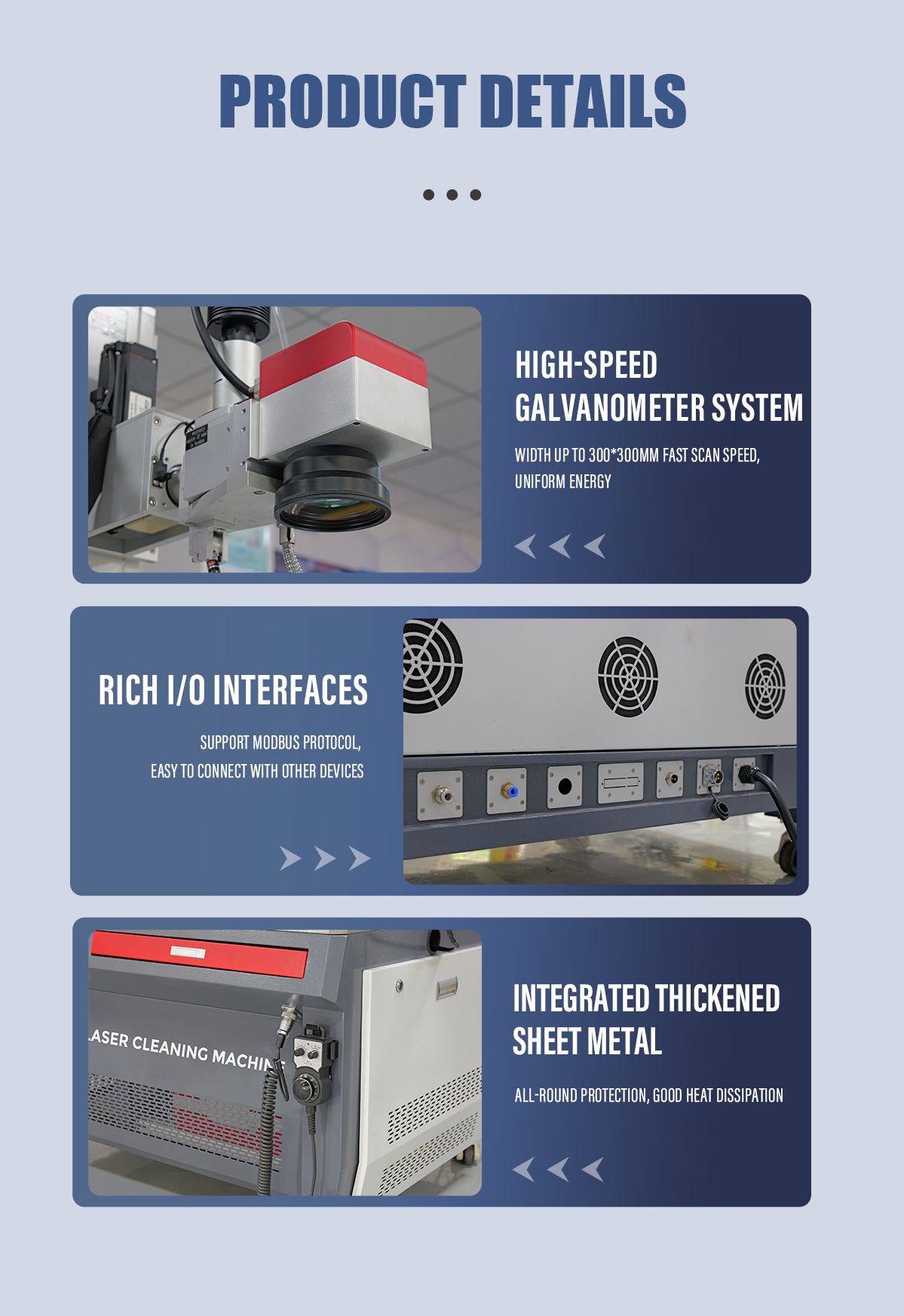

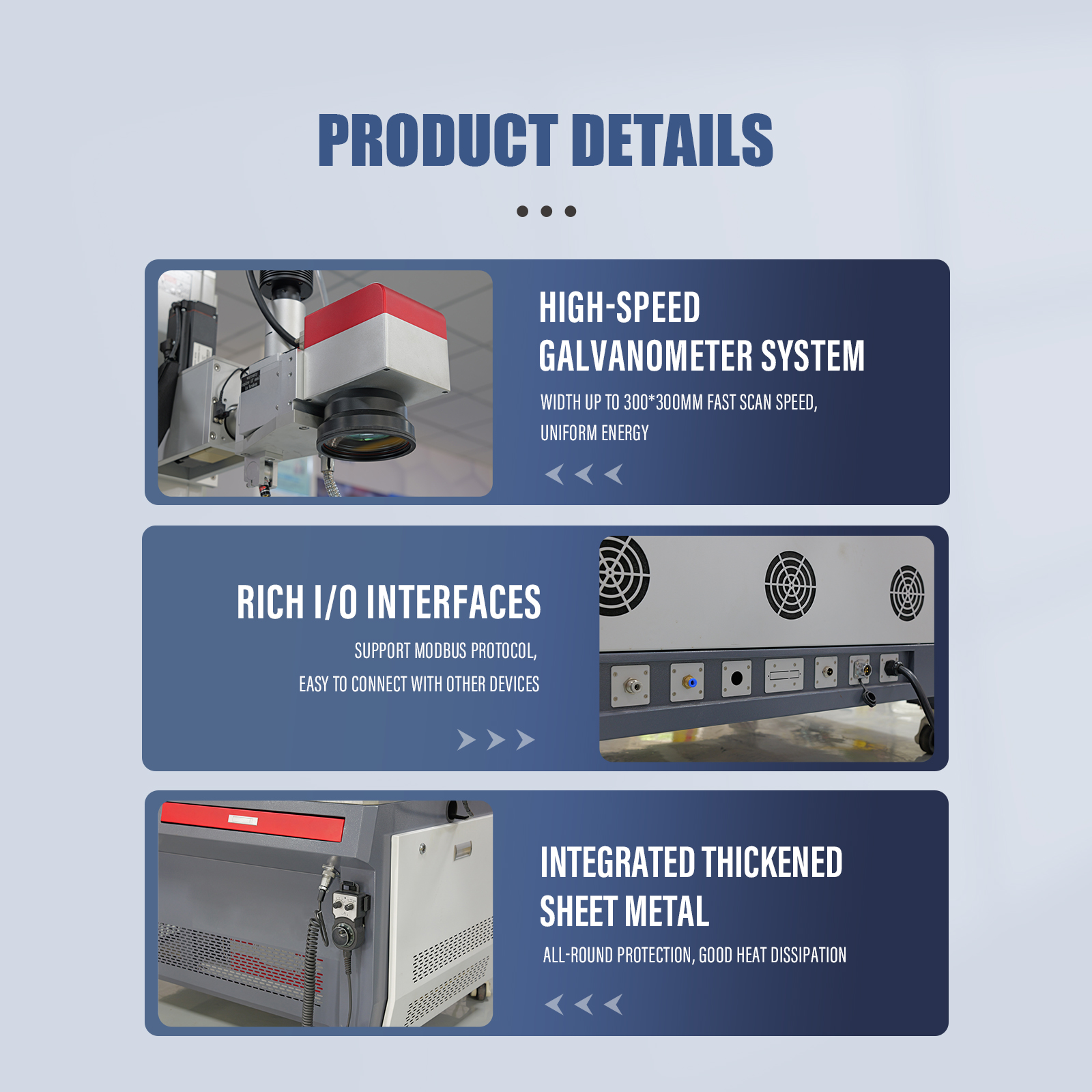

• High-speed Galvanometer System. Width up to 300*300mm fast scan speed, uniform energy.
• Rich I/O Interfaces. Support modbus protocol, easy to connect with other devices.
• Integrated Thickened Sheet Metal. All-round protection, good heat dissipation.

Application and Service:

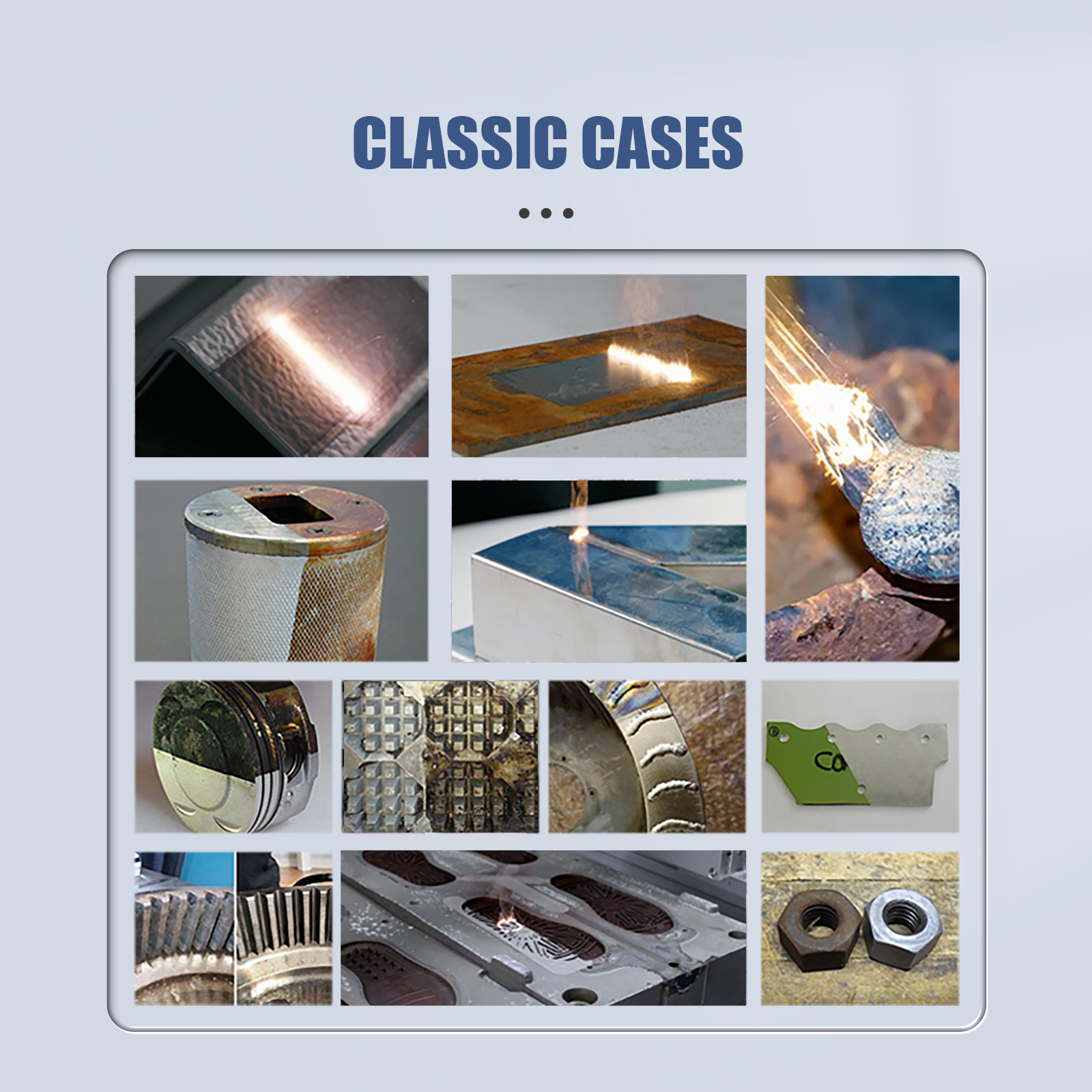

• Digital control of laser parameters ensures no damage to the workpiece and avoids heating and micro-melting. It is suitable for the cleaning of coating, plating, oxidized layers, paint, oil etc. and is especially suitable for the fine cleaning of corrosion-resistant, wear-resistant, and difficult-to-clean materials with high-temperature treatment.
• The surface of the highly reflective material is not easy to clean, please consult before placing an order. You are welcome to send samples for testing!
