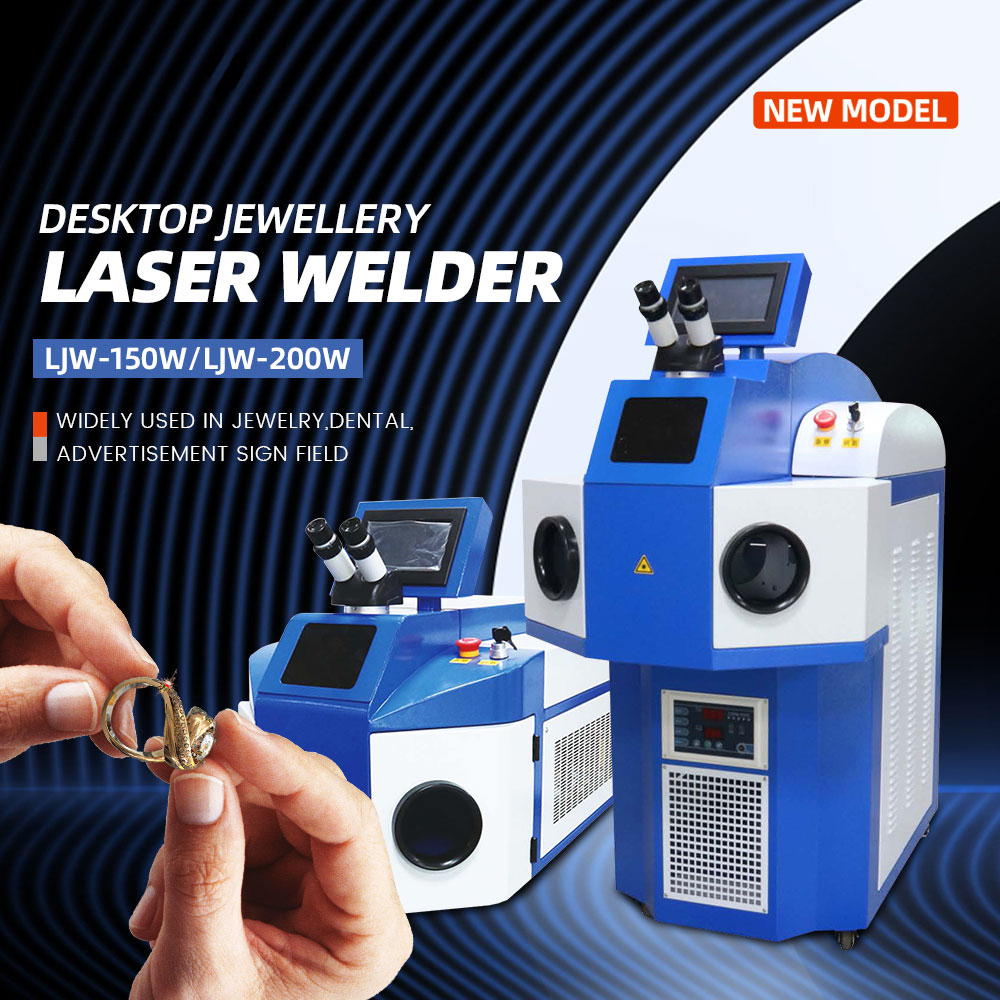

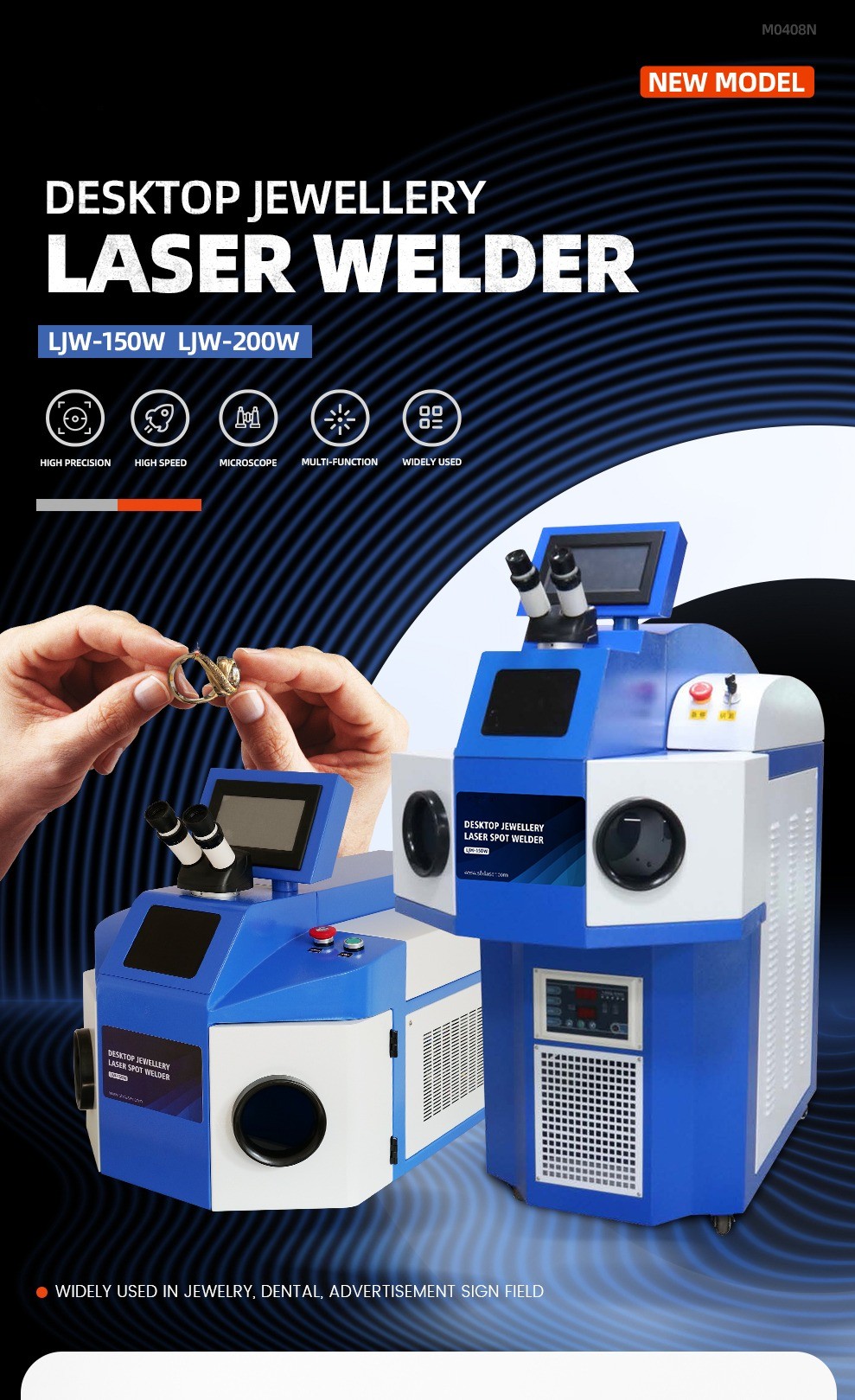

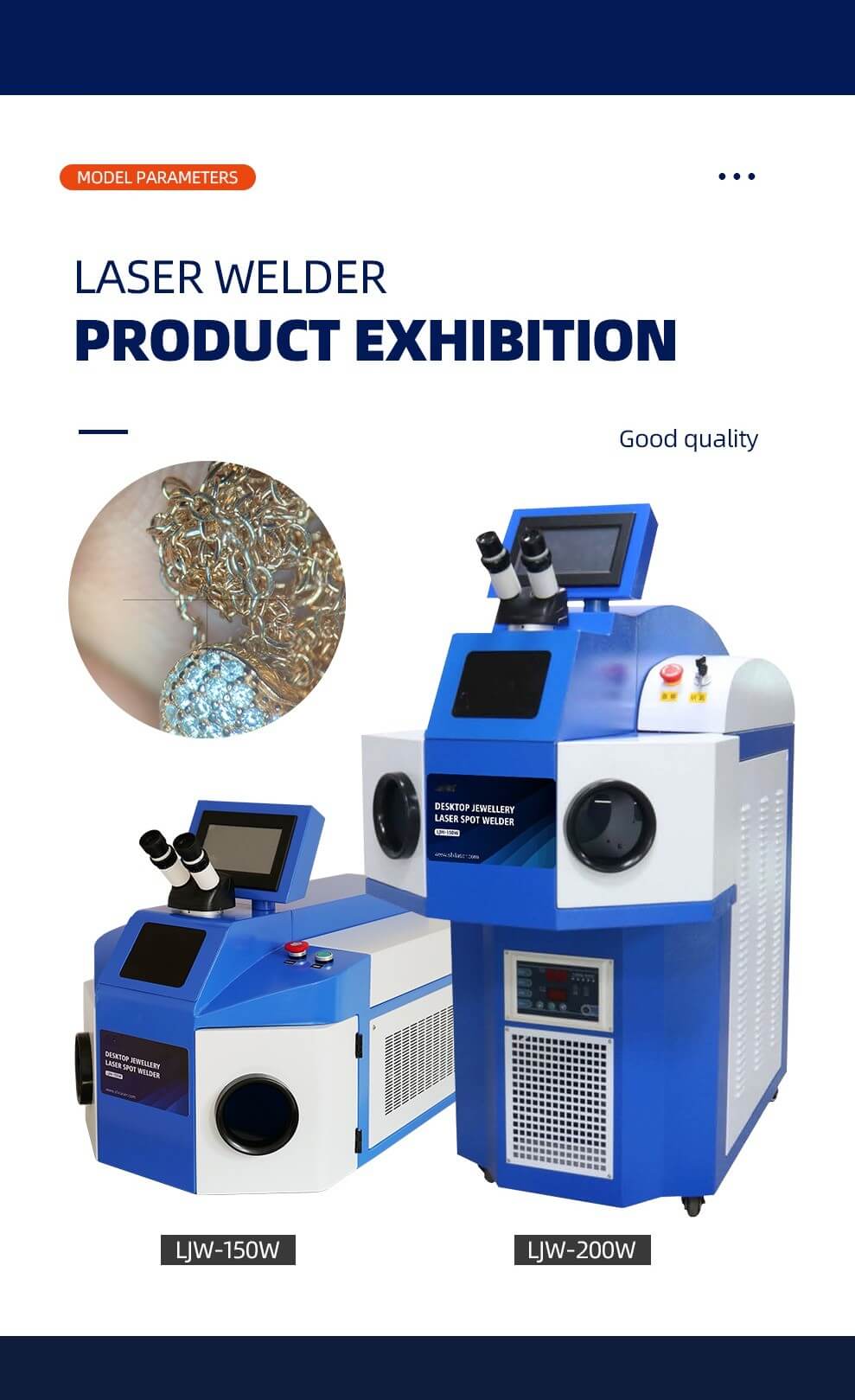

150W 200W Desktop Jewelry Laser Welder Jewellery Laser Welding Machine

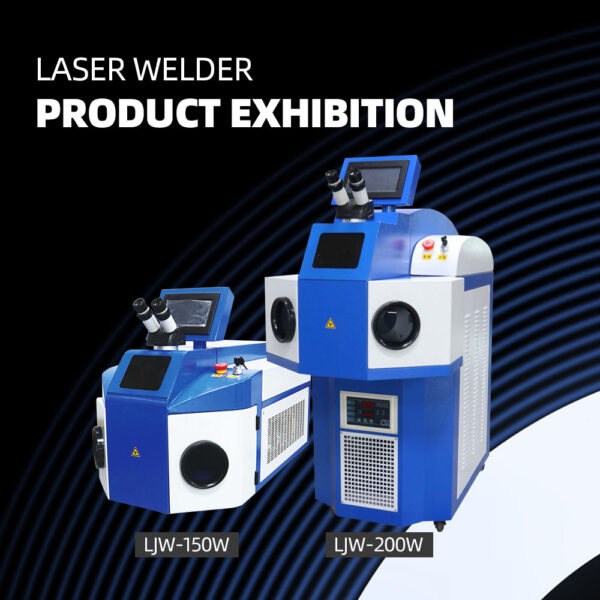

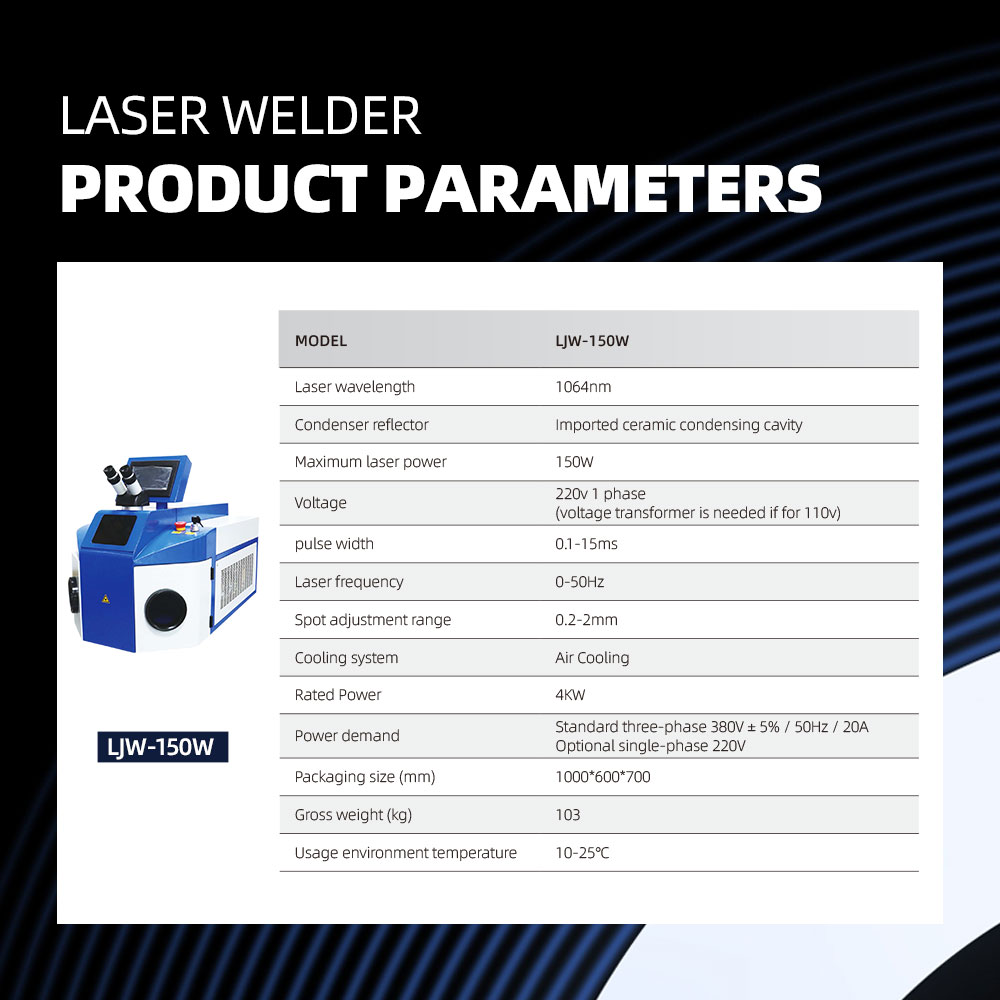

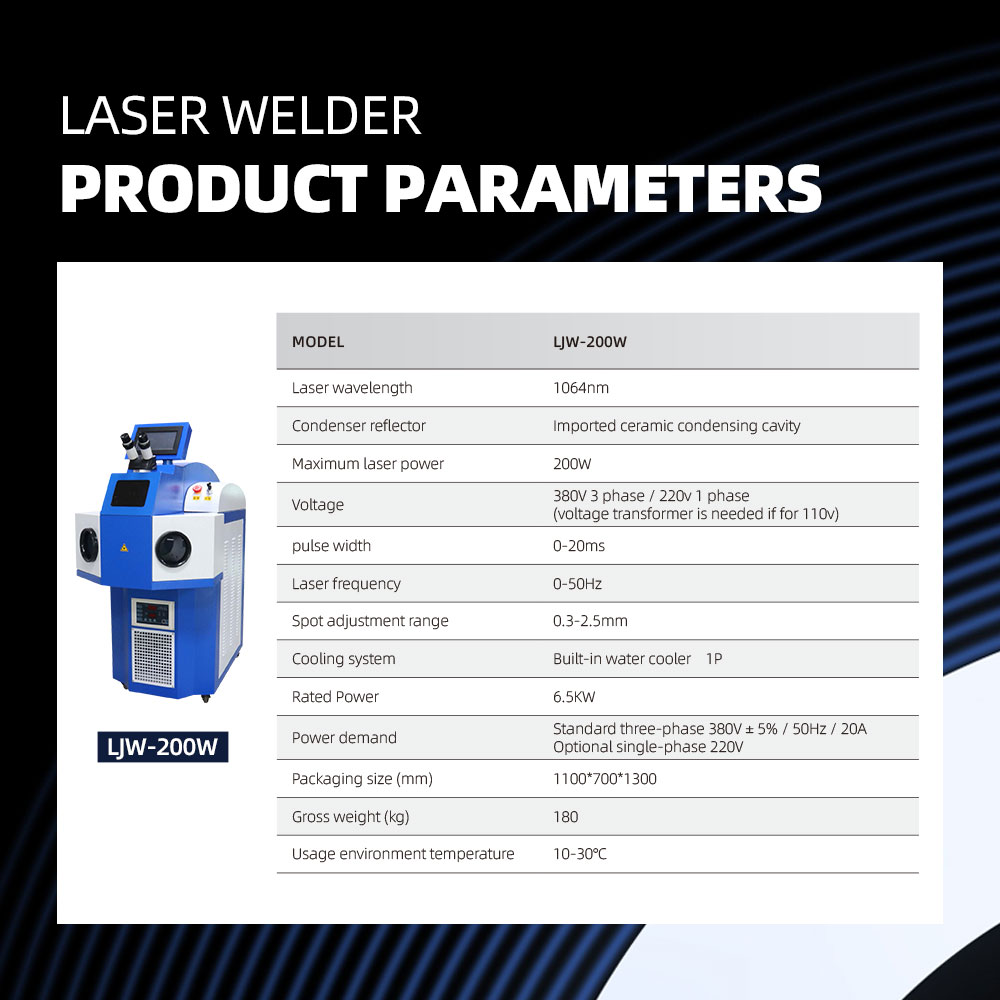

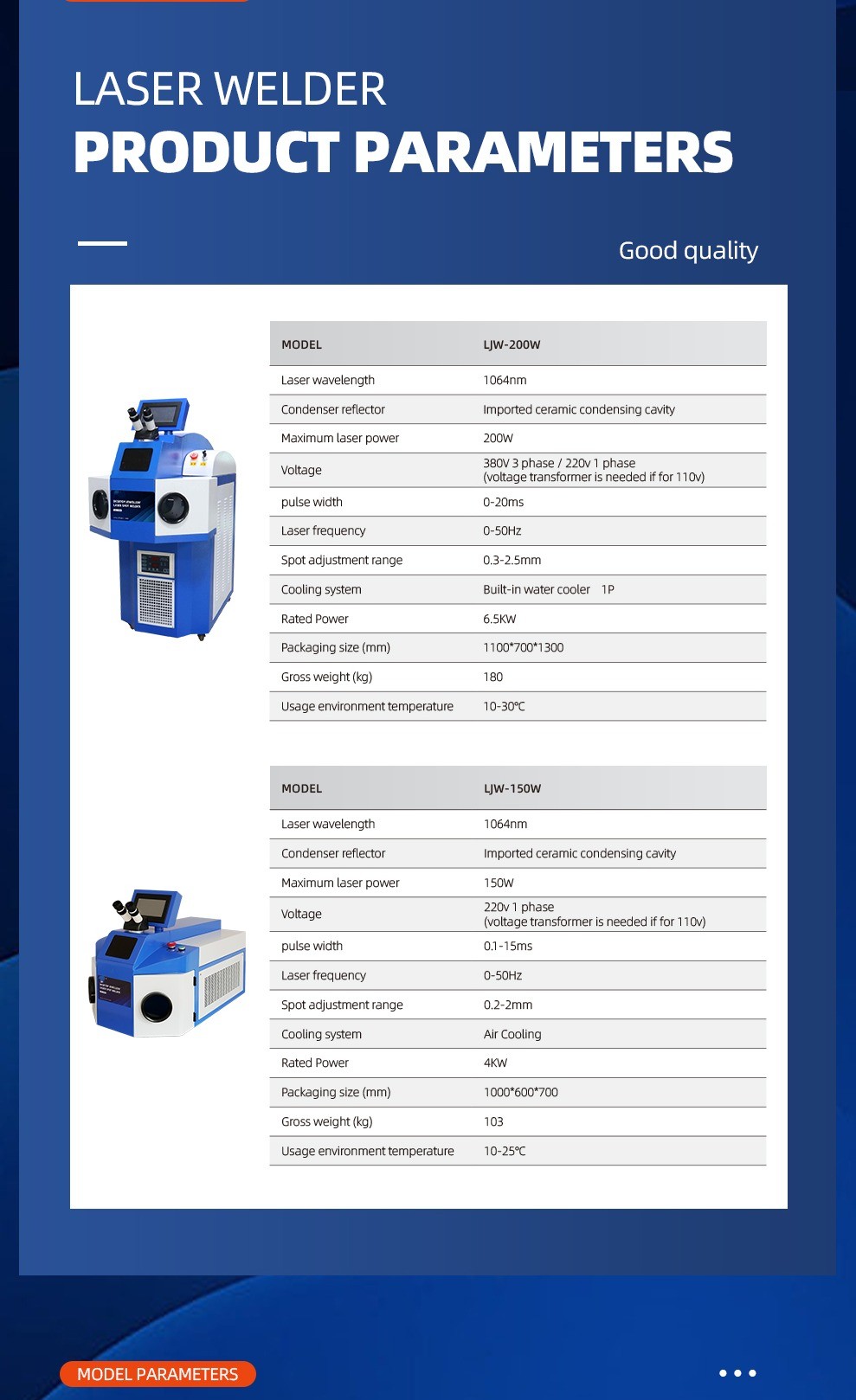

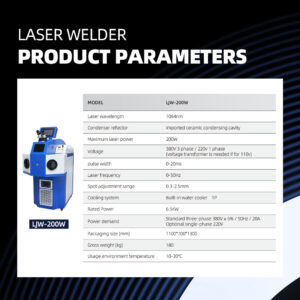

• Model: LJW-150W / LJW-200W
• Maxium Laser Power: 150W / 200W
• Condenser Reflector: Imported Ceramic Condensing Cavity
• Voltage: 380V 3 Phase / 220V 1 Phase (Voltage Transformer is Needed If for 110V)
• Pulse Width: 0.1-15ms(150W) / 0-20ms(200W)
• Laser Frequency:0-50Hz
• Spot Adjustment Range: 0.2-2mm(150W) / 0.3-2.5mm(200W)

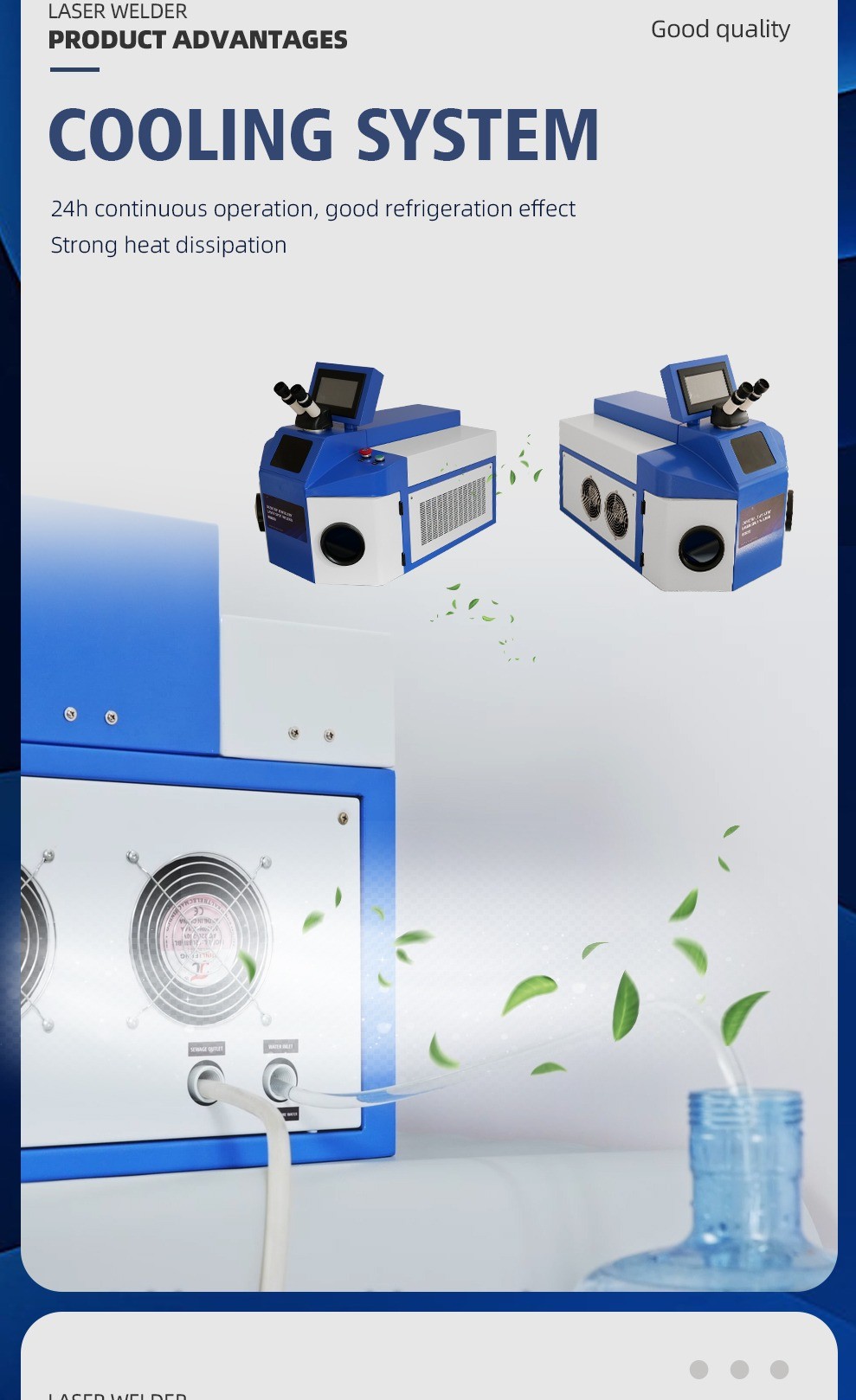

• Cooling System: Air Cooling(150W) / Built-in Water Cooler  1P(200W)
• Rated Power: 4KW(150W) / 6.5KW(200W)
• Power Demand: Standard Three-phase 380V±5% / 50Hz / 20A Optional Single-phase 220V
• Packaging Size: 1000*600*700(150W) / 1100*700*1300mm(200W)
• Gross Weight: 103KG(150W) / 180KG(200W)
• Usage Environment Temperature: 10-25℃(150W) / 10-30℃(200W)

Laser Welder Advantages:

• High Precision. Jewelry Laser Welder is High Precision(0.1-2mm Spot Size) Welding Method and Laser Beam is Very Thin.
• High Speed. Laser is Quick, Frequency can Reach 20Hz.

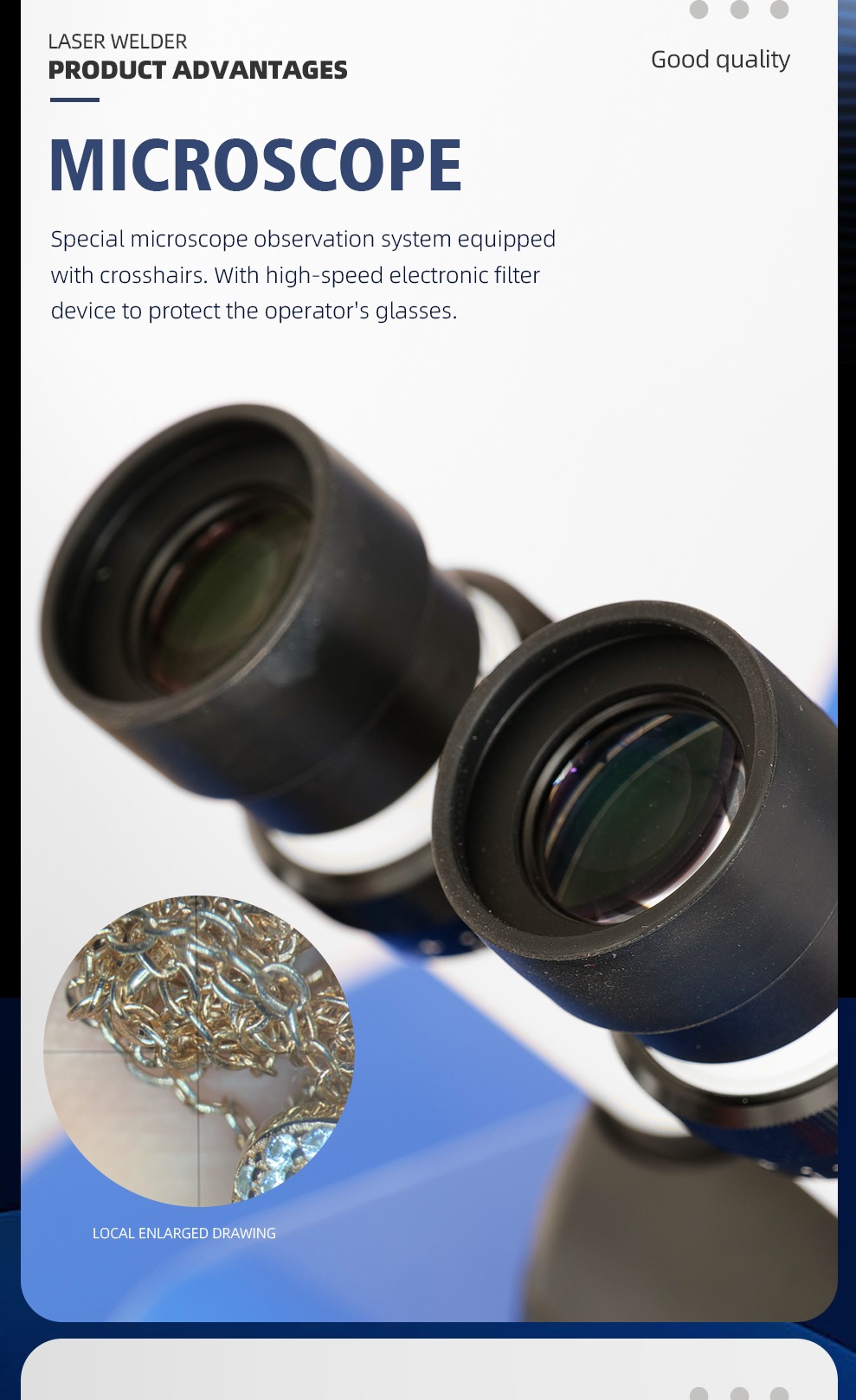

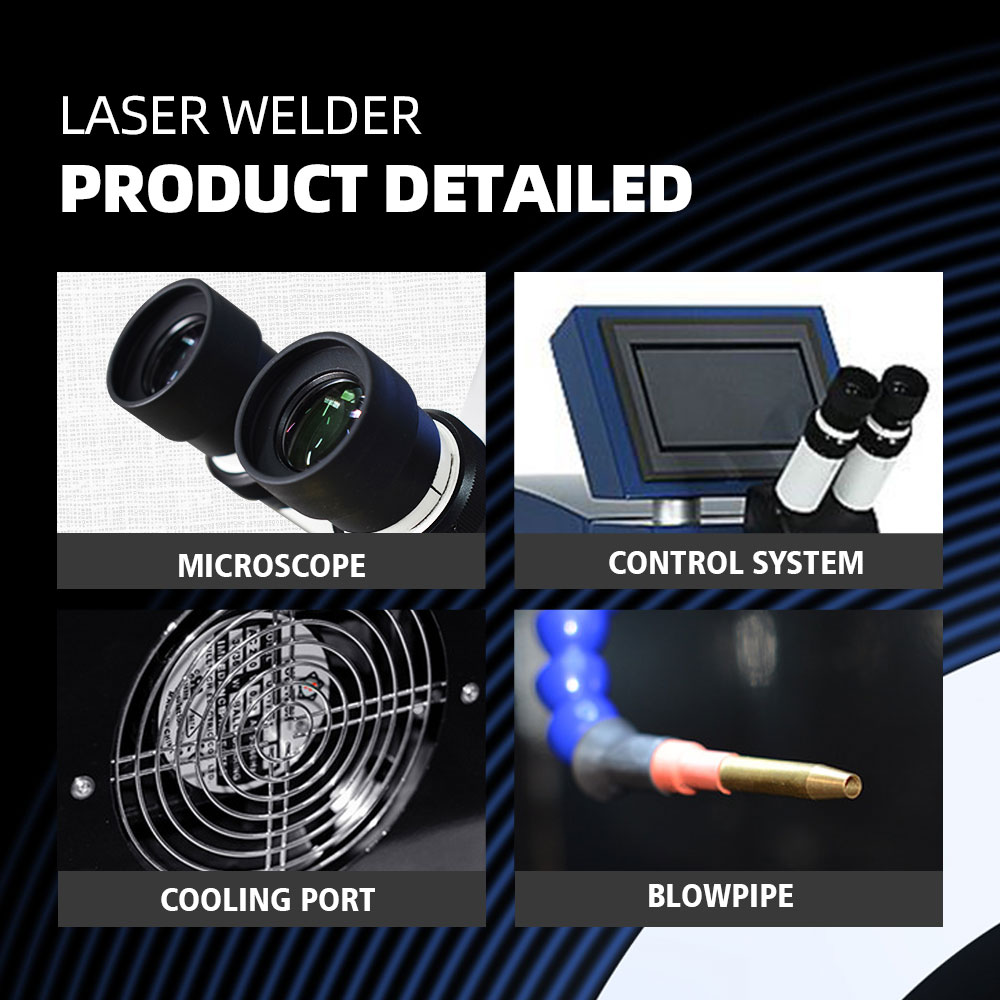

• Microscope. High Power Microscopefor Welding Metal Easily.
• Multi-function. Jewelry, Glass Frame, Mould, Dental Teeth need Laser Welding Way Which Have Beautiful Welding Joints.
• Widely Used. Jewelry Laser Welding Machine is Widely Used in All Kinds of Metal Like Gold, Silver, Bronze, Aluminum, Steel and Titanium.

Applications:

• Application Material: The Same Steel, Plain Carbon Steel, Alloy Steel: Welding and Stainless Steel, Steel Between the Welding and Stainless Steel Low Carbon Steel, Steel-310 316 Stainless Steel, Alloy Steel and 347 Nickel, Different Levels of Nickel, Titanium, Nickel, Tin, Copper, Aluminum, Niobium, Gold, Silver of Metal or Alloy the Same Metal for the Welding. Copper and Nickel, Titanium, Copper and Nickel, Titanium, Molybdenum, Brass, Copper and Low Carbon Steel, Copper, Metal for the Welding.
• Application Industries: For Mobile Communications Industry, the Arts and Crafts and Jewels, and Electronic Components, Sensor Appearance, Precision Machinery, Hardware, Spare Parts for Car, etc.

Service and Delivery:

• 7*24 Hours Online Service
• Remote Assistance for Any Operation Issues
• After Sales Center in NY, US
• Free Shipping, No Import Duty
• Delivery Terms:For CJW-150W We will Delivery by Express, For CJW-200W DDP(Free Shipping By Sea&Truck to Door including Tariffs only cover US Customers, other countries and area please email us for shipping details)
