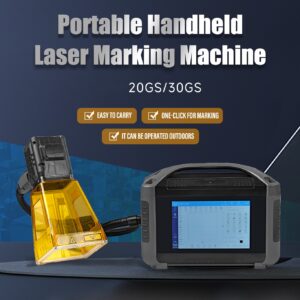

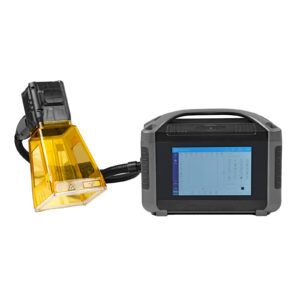

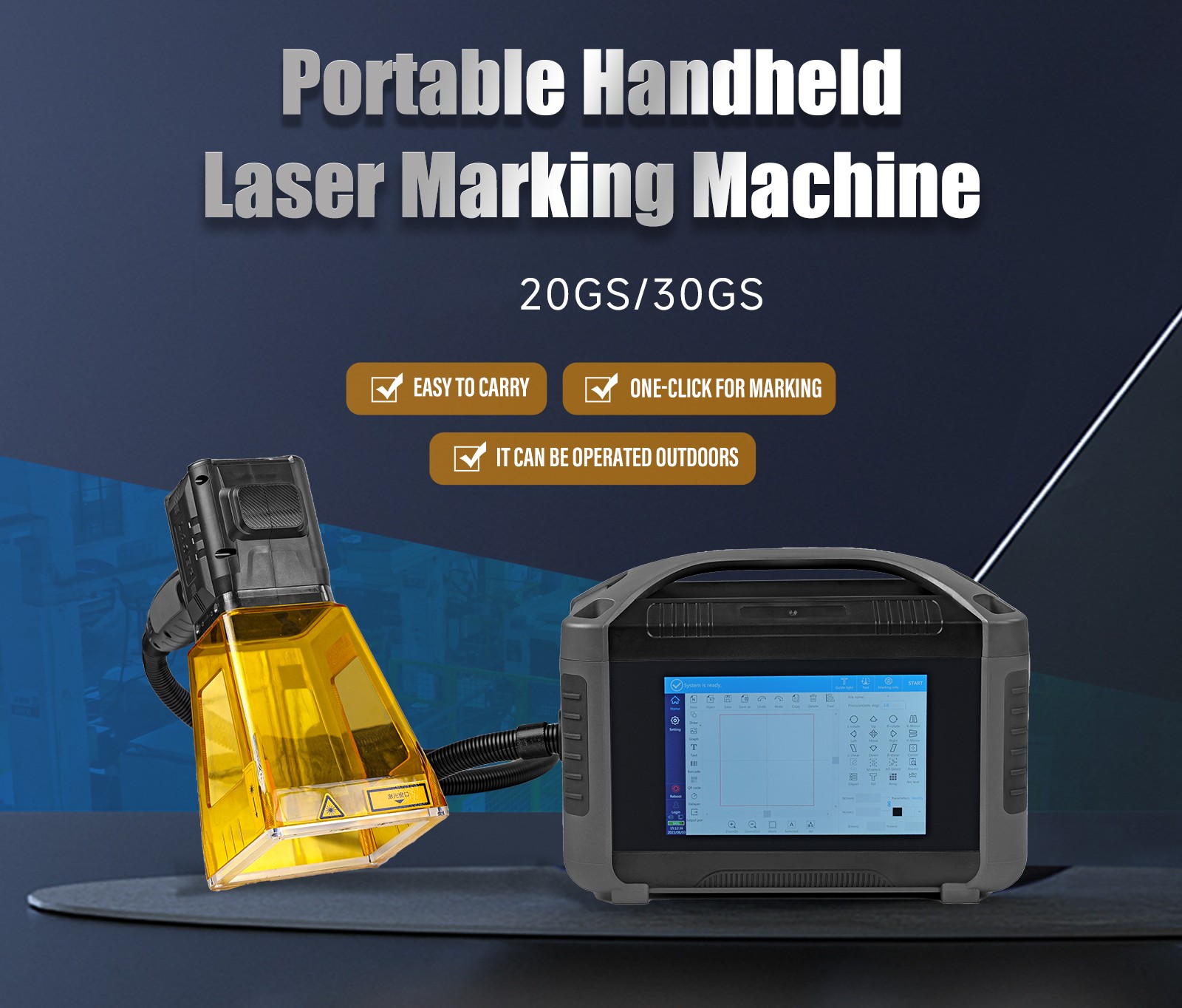

20W 30W Portable Handheld Laser Marking Machine

Product Parameters:

• Laser output power: 20W 30W
• Marking range: 70x70mm, 100x100mm (optional)
• Deflecting galvanometer: High-precision two-dimensional scanning system
• Laser wavelength/focus lens: 1064nm 130mm
• Marking speed/marking line type: <7000mm/s     dot matrix and vector integrated machine
• Master control: integrated motherboard, 8-inch capacitive full-fit screen
• Line width: 0.03mm
• Repeat positioning accuracy: 0.01mm
• Number of lines of characters that can be marked: any number of lines within the effective marking range
• Marking speed: 800 characters (depends on material and marking content)
• Fonts: Standard Fonts of simplified Chinese, English, numbers, traditional Chinese etc.
• File formats: BMP, DXF, HPGL, JPEG, PLT
• Bar code: CODE39, CODE128, CODE126, QR
• Power supply: 110V/220VAC.  Lithium battery (216wh)

Features and Advantages:

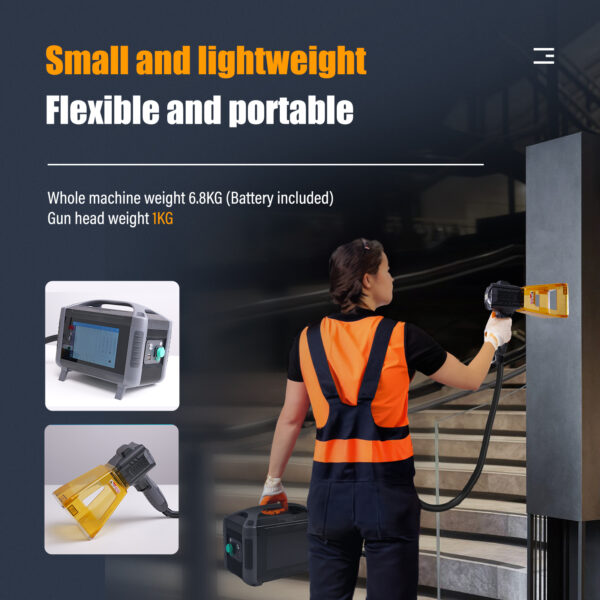

• Small and Lightweight. Easy to Carry, One-click for Marking, can be Operated Outdoors. Whole machine weight 6.8KG(Battery included), Gun head weight 1KG.

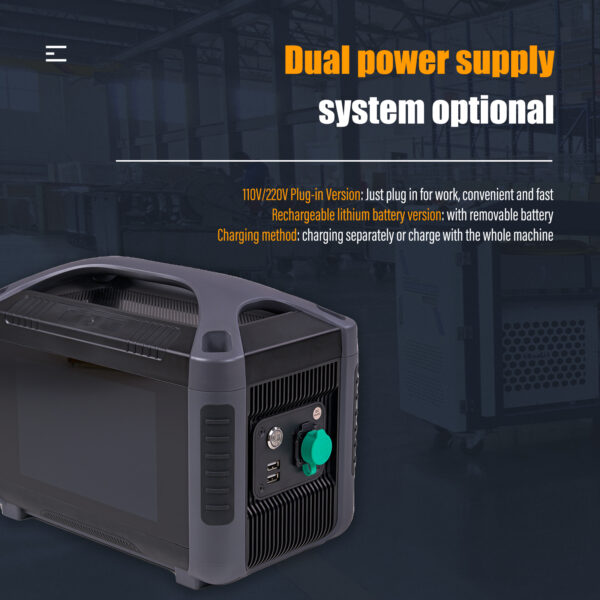

• Dual Power Supply System Optional.

110V/220V Plug-in Version: Just plug in for work, convenient and fast

Rechargeable Lithium Battery Version: with removable battery

Charging Method: charging separately or charge with the whole machine

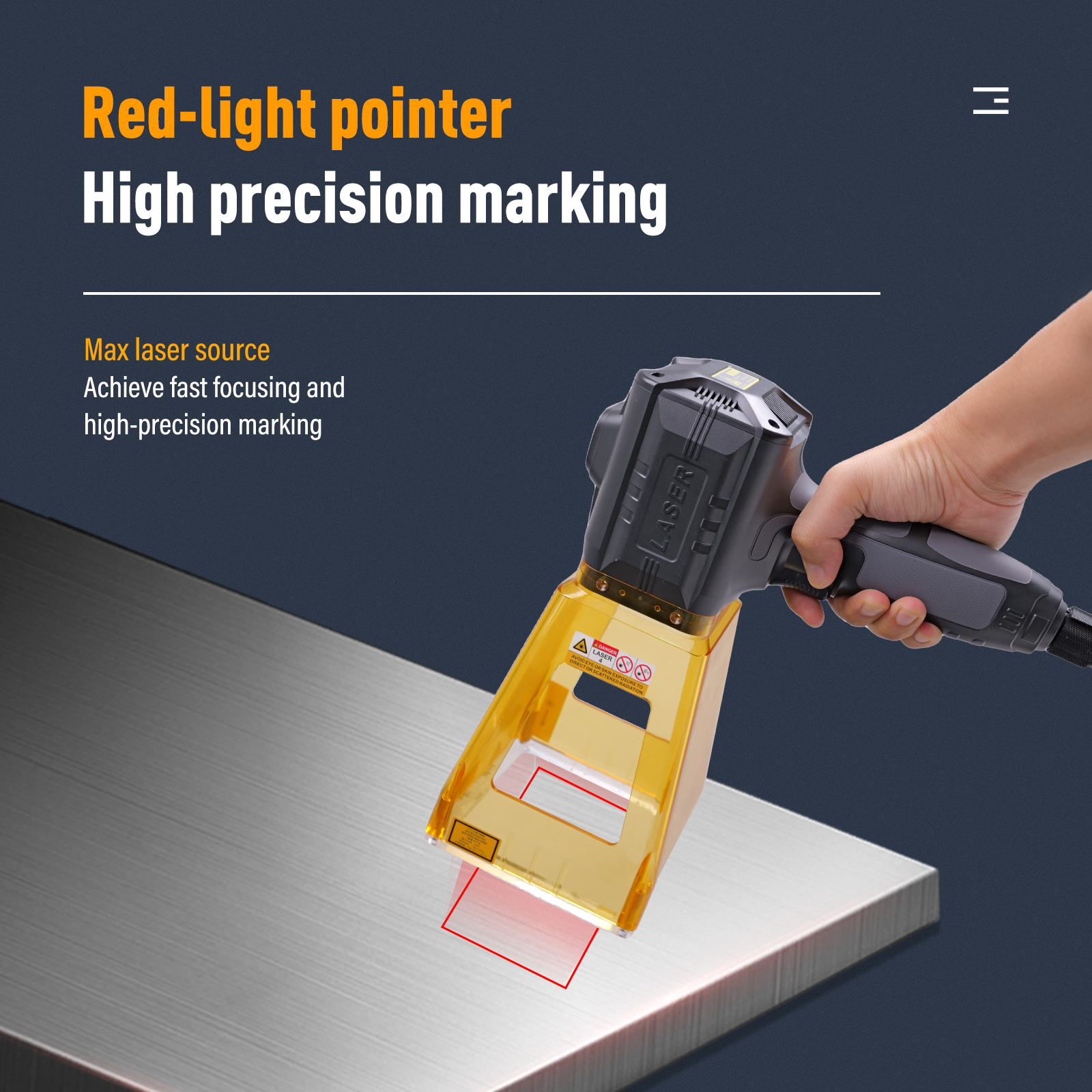

• MAX Laser Source, Red-light Pointer. Achieve fast focusing and high-precision marking.
• Linux system with 8-core processor, High security level, stable performance and fast response.

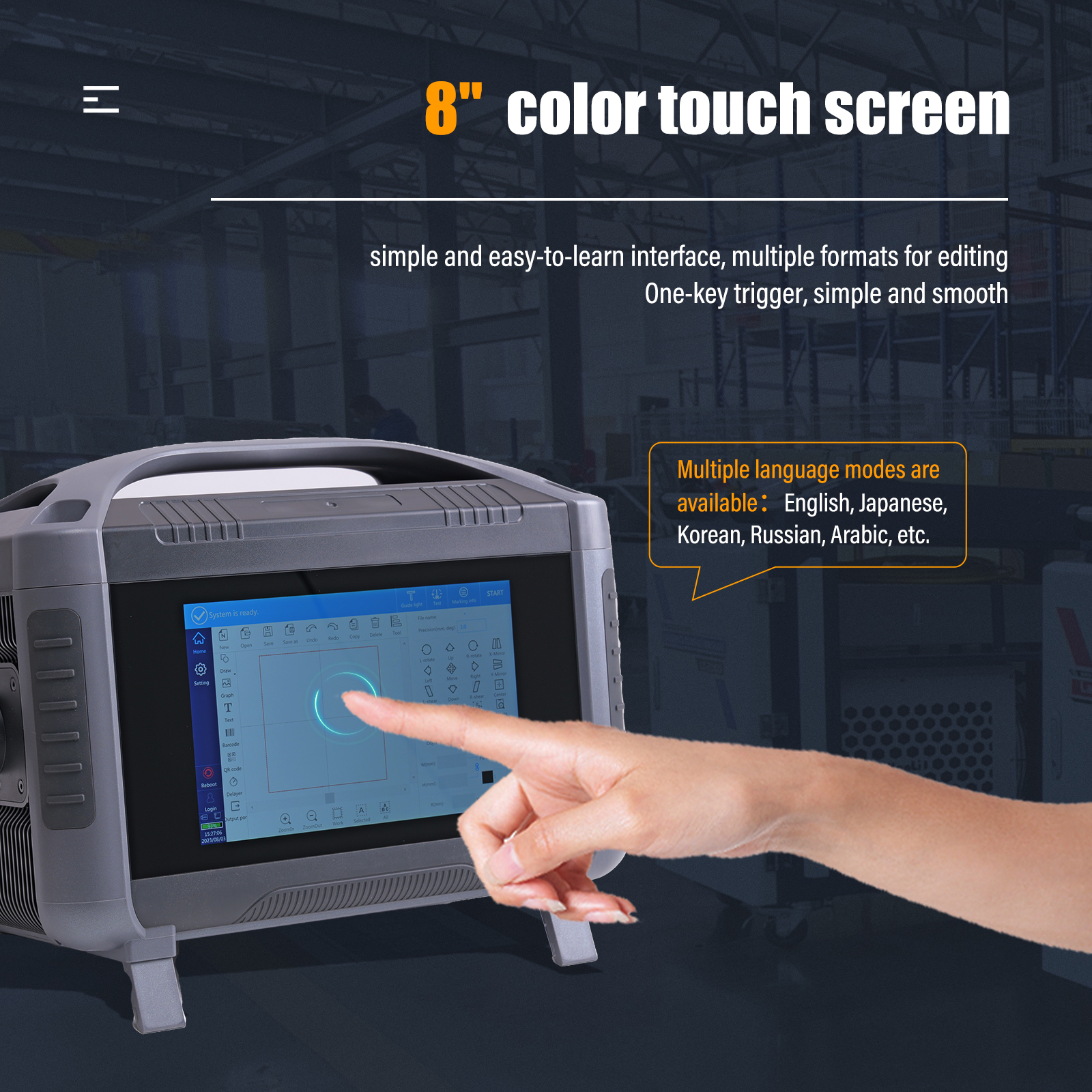

• 8-inch color touch screen, simple and easy-to-learn interface, and multiple formats for editing. One-key trigger, simple and smooth.
• Multiple language modes are available: English, Japanese, Korean, Russian, Arabic, etc.
• Third-party authoritative certification(CE, UN38.3, MSDS), Quality assurance.

Application and Service:

• Applicable Materials: Metal materials: gold, silver, copper, steel etc and Non-metallic materials: paper, plastic, glass, leather etc.
• Wide Applications, can be used for personalized customization such as trademark marking and bar code marking.
• One year warranty for the whole machine, 6 months for the battery.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Offer Lifetime Online Technical Support.
• Free shipping to your door about 7-10 days, No import duty.
